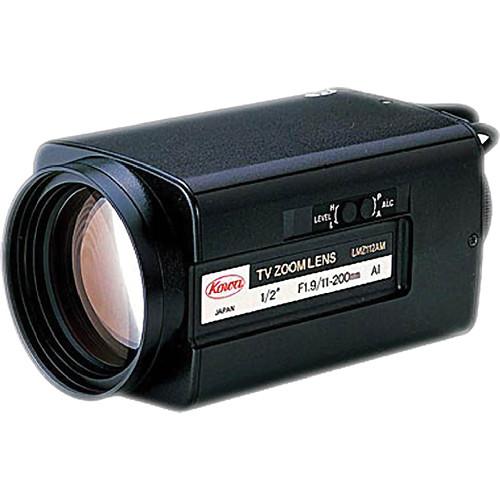

User manual Kowa LMZ112AMP 1/2" Video Auto Iris 18x Zoom Lens LMZ112AMP

Operating instructions and pdf manual for use - Kowa LMZ112AMP 1/2" Video Auto Iris 18x Zoom Lens LMZ112AMP User manual, User manual Kowa LMZ112AMP 1/2" Video Auto Iris 18x Zoom Lens LMZ112AMP, Kowa, LMZ112AMP, 1/2, Video, Auto, Iris, 18x, Zoom, Le


User manual for Kowa LMZ112AMP 1/2" Video Auto Iris 18x Zoom Lens LMZ112AMP

Kowa LMZ112AMP 1/2
  • Manufacturer: Kowa
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Lenses - Lenses
  • Safety instructions
  • Startup and operation of the lenses
  • Tips for setting up your Kowa
  • Settings and expert assistance
  • Contact Kowa service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Kowa LMZ112AMP 1/2" Video Auto Iris 18x Zoom Lens LMZ112AMP, which address similar problems with connecting and setting up Lenses Kowa.



User manual for the Kowa LMZ112AMP 1/2" Video Auto Iris 18x Zoom Lens LMZ112AMP

The user manual for the Kowa LMZ112AMP 1/2" Video Auto Iris 18x Zoom Lens LMZ112AMP provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Lenses - Lenses.

The Kowa LMZ112AMP 1/2" Video Auto Iris 18x Zoom Lens with Preset (11-200mm) incorporates a 3-Cam design that solves the problem of de-centering which sometimes occurs in the conventional pole system. Not only is the movement of the lens impaired by de-centering, but the optical performance suffers too. The 3-Cam Design also reduces internal reflection so that the image obtained is sharper than that of the conventional pole system. With the 3-Cam design, the customer can expect higher optical performance and a longer service life.
If you own a Kowa lenses and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Kowa LMZ112AMP 1/2" Video Auto Iris 18x Zoom Lens LMZ112AMP in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Kowa LMZ112AMP 1/2" Video Auto Iris 18x Zoom Lens LMZ112AMP:
Sensor Size For 1/2" color, B&W camera
Focal Length 11 to 200 mm
Iris Range F=1.9 to 360/close
Image Size Ø8 (4.8 x 6.4)
Back Focal Distance 0.4" (10.21 mm) in air
Flange Focal Distance 0.68" (17.52) mm in air
Angle of View Horizontal: 32.1° (wide), 1.9° (tele)
Diagonal: 39.7° (wide), 2.3° (tele)
Vertical: 24.3° (wide), 1.4° (tele)
Field of View at M.O.D Horizontal: 802 mm (wide), 45.6 mm (tele)
Diagonal: 1001 mm (wide), 56.7 mm (tele)
Vertical: 601 mm (wide), 34.4 mm (tele)
Distortion -0.6% (wide), +0.5% (tele)
Focusing Range Infinity to 1.5 m
Mount C
Lens Construction 12 groups, 16 elements
Correcting Plate Clear Aperture Front Ø58, Rear Ø14.7
Exit Pupil Position 2.2" (+55.9 mm)
Weight 1.8 lb (860 g)
Packaging Info
Package Weight 5.0 lb
The user manual for the Kowa LMZ112AMP 1/2" Video Auto Iris 18x Zoom Lens LMZ112AMP can be downloaded in .pdf format if it did not come with your new lenses, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Kowa users keep a unique electronic library for Kowa lensess, where you can use our link to download the user manual for the Kowa LMZ112AMP 1/2" Video Auto Iris 18x Zoom Lens LMZ112AMP.

The user manual lists all of the functions of the Kowa LMZ112AMP 1/2" Video Auto Iris 18x Zoom Lens LMZ112AMP, all the basic and advanced features and tells you how to use the lenses. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Kowa service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Kowa LMZ112AMP 1/2" Video Auto Iris 18x Zoom Lens LMZ112AMP. User manuals are also available on the Kowa website under Surveillance - Surveillance Video - Lenses - Lenses.
