User manual for the Kramer HD15 Male to 5 BNC Female Breakout Cable (1') C-GM/5BF-1
The user manual for the Kramer HD15 Male to 5 BNC Female Breakout Cable (1') C-GM/5BF-1 provides
necessary instructions for the proper use of the product Computers & Solutions - Monitor & Display Accessories - VGA & DVI Breakout Cables.

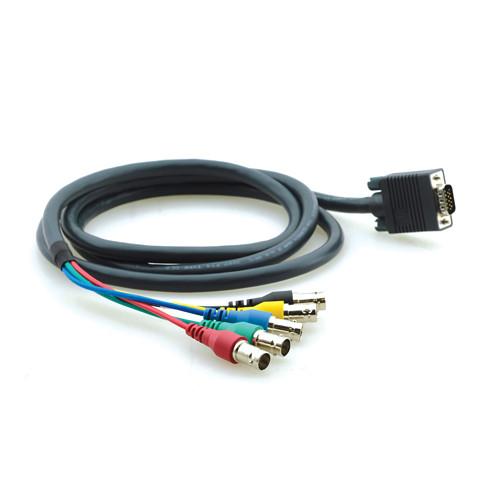

Kramer's HD15 Male to 5 BNC Female Breakout Cable is a 1' cable that is constructed of five mini coax cables with a molded 15−pin HD connector on one end and five BNC connectors on the other. This cable converts between the two most common cabling formats used for routing computer graphic video signals, 15−pin HD, and BNC.
|
If you own a Kramer vga & dvi breakout cables and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Kramer HD15 Male to 5 BNC Female Breakout Cable (1') C-GM/5BF-1 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Kramer HD15 Male to 5 BNC Female Breakout Cable (1') C-GM/5BF-1:
| Attenuation | dB/100':
−0.6 dB @ 1 MHz
−1.4 dB @ 5 MHz
−2.1 dB @ 10 MHz
−4.7 dB @ 50 MHz
−6.8 dB @ 100 MHz
−9.2 dB @ 180 MHz
−14.2 dB @ 400 MHz
−20.1 dB @ 750 MHz
−23.8 dB @ 1000 MHz | | Wire Gauge | 28 AWG | | Center Conductor | 7/36 tinned copper | | Dielectric | Foam polyethylene | | Shielding | 90% braid 38 AWG tinned copper | | Outer Jacket Material | PVC | | Diameter | Center Conductor: 0.01" (0.38 mm)
Dielectric: 0.06" (1.6 mm)
Individual Coaxial: 0.1" (2.75 mm)
Outside Diameter: 0.36" (9.2 mm) | | Impedance | 75 Ω | | DC Resistance | 72.2 Ω/1000', 237 Ω/km | | Capacitance | 18.3 pF/ft, 60 pF/m | | Velocity of Propagation | 78% | | Temperature | 68-167°F (−20-75°C) | | UL | CL2 | | Connector 1 | HD15 Male | | Connector 2 | 5 BNC Female | | Length | 1' (0.3 m) | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 6.6 x 4.9 x 0.2" | |
