User manual for the Kramer PT-103V 1:3 Composite Video Distribution Amplifier

The user manual for the Kramer PT-103V 1:3 Composite Video Distribution Amplifier provides necessary instructions for the proper use of the product Professional Video - Signal Processing & Distribution - Distribution Amplifiers (DA's).

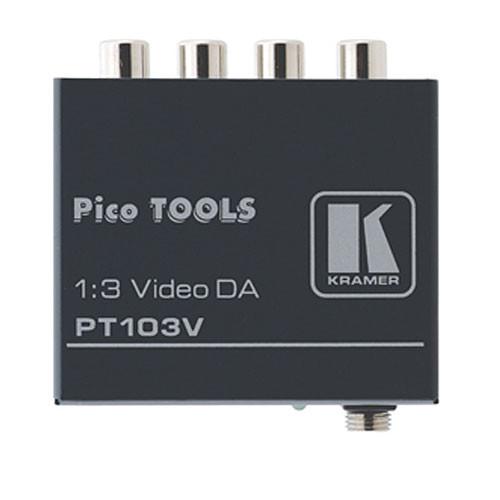

The PT-103V 1:3 Composite Video Distribution Amplifier from Comprehensive/Kramer is a distribution amplifier designed to manage composite video signals. It accepts (1) input and distributes the signal to (3) identical outputs. Correct buffering and isolation is applied during distribution to ensure integrity. This solution is well suited for use in video duplication studios, rental & staging applications, and home theaters, among other similar uses.

It offers a high bandwidth capacity of -407MHz. The unit also includes level (gain) and EQ (peaking) controls, which are recessed control trimmers to prevent accidental changes to your settings. This device belongs to the Pico TOOLS family of products and up to (4) of these units can be mounted side by side in 1U of a standard 19" equipment rack.
If you own a Kramer distribution amplifiers (da's) and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Kramer PT-103V 1:3 Composite Video Distribution Amplifier in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Kramer PT-103V 1:3 Composite Video Distribution AmplifierDownload user manual for Kramer PT-103V 1:3 Composite Video Distribution Amplifier
(PDF file, 0.82 MB)
Additional parameters of the Kramer PT-103V 1:3 Composite Video Distribution Amplifier:
Construction Metal
Finish Black
Input (1) video, 1Vpp /75 Ohms on an RCA connector
Output (3) video, 1Vpp /75 Ohms on RCA connectors
Output Level 1.9Vpp (maximum)
Bandwidth 407MHz (-3dB)
Differential Gain 0.04%
Differential Phase 0.03°
K-Factor <0.05%
Signal-to-Noise Ratio 63dB
Control Gain: -1.2dB to +6.2dB
EQ: 0 to + 6.1dB, 50MHz
Coupling AC
Power 12VDC, 28mA
Dimensions (HxWxD) 0.94 x 2.44 x 2.05" (2.4 x 6.2 x 5.2cm)
Weight 0.31 lbs (0.14kg)
