User manual Kramer TP-104HD 1:4 XGA Line Transmitter and TP-104HD

Operating instructions and pdf manual for use - Kramer TP-104HD 1:4 XGA Line Transmitter and TP-104HD User manual, User manual Kramer TP-104HD 1:4 XGA Line Transmitter and TP-104HD, Kramer, TP-104HD, 1:4, XGA, Line, Transmitter, TP-104HD,


User manual for Kramer TP-104HD 1:4 XGA Line Transmitter and TP-104HD

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.

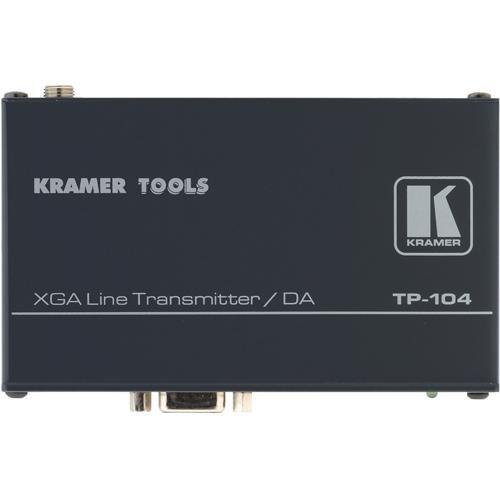

Kramer TP-104HD 1:4 XGA Line Transmitter and TP-104HD
  • Manufacturer: Kramer
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Computer Peripherals - DVI/VGA KVM Extenders
  • Safety instructions
  • Startup and operation of the dvi/vga kvm extenders
  • Tips for setting up your Kramer
  • Settings and expert assistance
  • Contact Kramer service
  • Troubleshooting
  • Warranty information
  • Price: 196 USD
We recommend checking out our discussion threads on the Kramer TP-104HD 1:4 XGA Line Transmitter and TP-104HD, which address similar problems with connecting and setting up DVI/VGA KVM Extenders Kramer.



User manual for the Kramer TP-104HD 1:4 XGA Line Transmitter and TP-104HD

The user manual for the Kramer TP-104HD 1:4 XGA Line Transmitter and TP-104HD provides necessary instructions for the proper use of the product Computers & Solutions - Computer Peripherals - DVI/VGA KVM Extenders.

With its continued stellar reputation in high-definition distribution, Kramer once again raises-the-bar of excellence with its TP-104HD 1:4 XGA Line Transmitter and Distribution Amplifier. Designed and built with both professional video facility installation pundits and HDTV home cinema enthusiasts in mind, this unit offers twisted pair (RJ-45) signal conversion from a 15-pin HD VGA/XGA computer graphics video input. It's capable of distributing up to (4) identical twisted pair (RJ-45) outputs - compatible with HDTV signals, supports resolutions up to UXGA and 1080p, offers a system range of up to 320' (100 m), and works in conjunction with Kramer's compatible receivers. The TP-104HD is an ideal solution for sending a computer graphics video signal over shielded or unshielded twisted pair (UTP) cabling such as standard CAT5 (Ethernet network cable).
If you own a Kramer dvi/vga kvm extenders and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Kramer TP-104HD 1:4 XGA Line Transmitter and TP-104HD in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Kramer TP-104HD 1:4 XGA Line Transmitter and TP-104HDDownload user manual for Kramer TP-104HD 1:4 XGA Line Transmitter and TP-104HD
(PDF file, 2.82 MB)
Additional parameters of the Kramer TP-104HD 1:4 XGA Line Transmitter and TP-104HD:

Go To

Type Transmitter/Distribution Amplifier
Supports RGBHV/HDTV on VGA/XGA connector
Resolution Up to UXGA and 1080p
Input (1) 15-pin female HD
Output (4) RJ-45 Connector (CAT5)
Loop-Through No
Other No
Range 320' (100 m) (receiver dependent)
Controls EQ: 0 - 33dB; Level: -7.5dB - 4.4dB
Switch Yes (VS and HS Polarity)
Compatibility TP-120, TP-105, PT-120, VP-5R, and TP-202 CAT5 Receivers
Requirements Kramer Series CAT5 Receivers
Cable: CAT5 shielded or unshielded twisted pair
General
Power Requirements 12VDC @ 180mA (supplied by power adapter)
Dimensions (WxHxD) 4.7 x 0.95 x 2.8" (119.3 x 24.1 x 71.1mm)
Weight 0.67 lb (0.3kg)
Color Black
Packaging Info
Package Weight 1.3 lb
Box Dimensions (LxWxH) 9.2 x 4.9 x 3.4"
The user manual for the Kramer TP-104HD 1:4 XGA Line Transmitter and TP-104HD can be downloaded in .pdf format if it did not come with your new dvi/vga kvm extenders, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Kramer users keep a unique electronic library for Kramer dvi/vga kvm extenderss, where you can use our link to download the user manual for the Kramer TP-104HD 1:4 XGA Line Transmitter and TP-104HD.

The user manual lists all of the functions of the Kramer TP-104HD 1:4 XGA Line Transmitter and TP-104HD, all the basic and advanced features and tells you how to use the dvi/vga kvm extenders. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Kramer service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Kramer TP-104HD 1:4 XGA Line Transmitter and TP-104HD. User manuals are also available on the Kramer website under Computers & Solutions - Computer Peripherals - DVI/VGA KVM Extenders.
