User manual for the Kurzweil SP5-8 - Stage Piano SP5-8
The user manual for the Kurzweil SP5-8 - Stage Piano SP5-8 provides
necessary instructions for the proper use of the product Pro Audio - Musical Instruments - Stage Pianos & Organs.

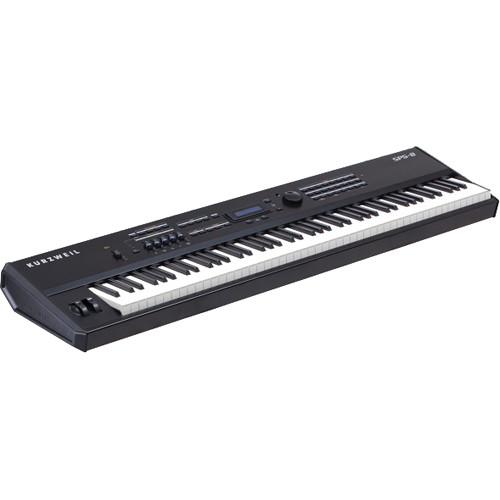

The SP5-8 from Kurzweil is an 88-note digital piano with a graded hammer-weighted action keyboard, and over 800 preset sounds that offer the sound palette of a professional workstation, but with the workflow and simplicity of a stage piano. The keyboard offers full MIDI functionality over USB, as well as the ability to quickly save/load user sounds and update the operating system when paired with a computer.
Presets include the obligatory concert grand pianos, studio pianos, classic barrel-house and tack uprights, as well as layered combinations with strings and pads. Also included are vintage instrument emulations; electric pianos (some of which use over thirty velocity-switched layers), Clavinets, Mellotrons and electric grand pianos, in addition to organs and virtual analog synthesizers. Rounding out the sounds are string sections, plus orchestral, brass, winds, mallets, percussion, drums, guitar and bass presets.
The keyboard action allows players to experience the feeling of playing a real piano, while still providing the necessary speed response for correctly playing the electric pianos, organs, Clavinets and synthesizers. To accommodate all playing styles, several choices are available for adjusting velocity response, from "very hard" to "very light." And sixteen-part multi-timbral capability allows the SP5-8 to serve as a great compositional tool.
Sound setup and editing is easy using five sliders plus a three-tiered shift button that together provide access to fifteen real-time synthesizer and/or effects parameters. This allows for quickly customizing sounds, whether assigning an effect or setting the key ranges for a split/layer zone. For gig-ready sound selection, the keyboard features one-touch access to twenty "User Favorite" slots. Balanced TRS outputs and 24-bit digital to analog converters output a pristine signal that's perfect for professional recordings or live amplification without the need for additional processing.
|
If you own a Kurzweil stage pianos & organs and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Kurzweil SP5-8 - Stage Piano SP5-8 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Kurzweil SP5-8 - Stage Piano SP5-8:
| Keyboard | 88-key, fully-weighted graded hammer-action, with velocity and pressure sensitive adjustable keys | | Polyphony | 64 Voice, dynamically allocated | | Multitimbral | 16 parts (one per MIDI channel)
Quick Split/Layer with adjustable relative volume (up to 4 zones) | | Memory | Preset: 861
User: 64 | | MIDI | Factory Setups: 65
User Setups: 64 (with 4 programmable zones for splits and layers)
Complete MIDI functionality over USB | | Effects | Effect chains from the PC3, including concert hall reverbs, amplifier simulations, rotary effects | | Controllers | 1 x Pitch wheel
1 x Modulation wheel
5 x Front panel sliders (with a 3-tiered shift button)
1 x Programmable front panel switch
2 x Mono switch pedal inputs (pedals not included)
1 x Continuous control pedal input (pedals not included) | | Connectors | 2 x 1/4" TRS Analog Outputs (24-bit DAC)
2 x 5-pin DIN MIDI I/O
1 x 1/4" TRS Headphone
1 x USB Type B | | Sequencer | No | | Storage | User program/setup file transfer to/from PC/Mac via USB | | Display | 2 x 20 character LCD with front-panel contrast adjust | | Power Requirements | 15V DC, 1A, via external power supply | | Dimensions | 54.8 x 13.8 x 4.7" (139 x 35 x 12 cm) | | Weight | 46.3 lb (21 kg) | | Package Weight | 60.0 lb | | Box Dimensions (LxWxH) | 68.0 x 20.0 x 10.0" | |
The user manual for the Kurzweil SP5-8 - Stage Piano SP5-8 can be downloaded in .pdf
format if it did not come with your new stage pianos & organs, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Kurzweil users keep a unique electronic library
for Kurzweil stage pianos & organss,
where you can use our link to download the user manual for the Kurzweil SP5-8 - Stage Piano SP5-8.
The user manual lists all of the functions of the Kurzweil SP5-8 - Stage Piano SP5-8,
all the basic and advanced features and tells you how to use the stage pianos & organs.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Kurzweil service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Kurzweil SP5-8 - Stage Piano SP5-8. User manuals are also
available on the Kurzweil website under Pro Audio - Musical Instruments - Stage Pianos & Organs.
Question and answer discussion forum concerning user instructions and resolving problems with the Kurzweil SP5-8 - Stage Piano SP5-8 - no comments have been made yet - be the first to add a comment
