User manual LaCie 8TB 2big Thunderbolt 2 Series 2-Bay RAID 9000438U

Operating instructions and pdf manual for use - LaCie 8TB 2big Thunderbolt 2 Series 2-Bay RAID 9000438U User manual, User manual LaCie 8TB 2big Thunderbolt 2 Series 2-Bay RAID 9000438U, LaCie, 8TB, 2big, Thunderbolt, 2, Series, 2-Bay, RAID, 9000438


User manual for LaCie 8TB 2big Thunderbolt 2 Series 2-Bay RAID 9000438U

Overall rating 3.5
Overall Rating: 3.5

70% of respondents would recommend this to a friend.

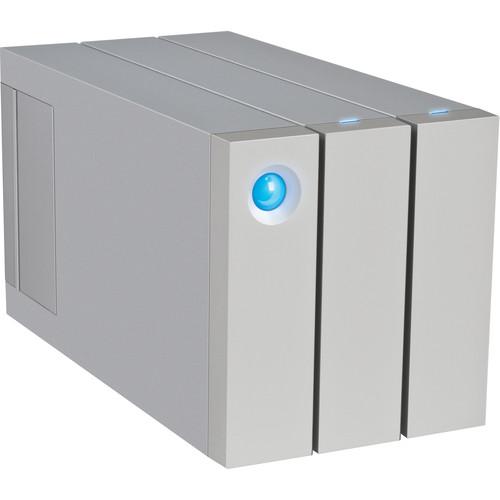

LaCie 8TB 2big Thunderbolt 2 Series 2-Bay RAID 9000438U
  • Manufacturer: LaCie
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Drives & Storage - Hard Drive Arrays
  • Safety instructions
  • Startup and operation of the hard drive arrays
  • Tips for setting up your LaCie
  • Settings and expert assistance
  • Contact LaCie service
  • Troubleshooting
  • Warranty information
  • Price: 679 USD
We recommend checking out our discussion threads on the LaCie 8TB 2big Thunderbolt 2 Series 2-Bay RAID 9000438U, which address similar problems with connecting and setting up Hard Drive Arrays LaCie.



User manual for the LaCie 8TB 2big Thunderbolt 2 Series 2-Bay RAID 9000438U

The user manual for the LaCie 8TB 2big Thunderbolt 2 Series 2-Bay RAID 9000438U provides necessary instructions for the proper use of the product Computers & Solutions - Drives & Storage - Hard Drive Arrays.

The 8TB 2big Thunderbolt 2 Series 2-Bay RAID from LaCie implements the use of Thunderbolt 2 technology to provide enhanced data transfer rates of up to 420 MB/s. These enhanced data transfer rates make it possible to work with both 2K and 4K content with little to no lag. Additionally, you can browse RAW photo libraries with no lag at all. Along with dual Thunderbolt 2 ports, the LaCie 2big Thunderbolt 2 also comes equipped with one USB 3.0 port making it compatible with Windows based systems.

This dual-bay storage enclosure also features two hot-swappable drive bays. The drives inserted into these drive bays can be configured to suit a variety of storage needs as this LaCie 2big comes preformatted in HFS+ and preconfigured in RAID 0, and can easily be reconfigured to RAID 1 or JBOD modes via the easy RAID selection button. Along with the various RAID configuration modes, you can also take advantage of AES 256-bit software encryption, a Kensington lock slot, and an integrated cable lock for added piece of mind.
If you own a LaCie hard drive arrays and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the LaCie 8TB 2big Thunderbolt 2 Series 2-Bay RAID 9000438U in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for LaCie 8TB 2big Thunderbolt 2 Series 2-Bay RAID 9000438UDownload user manual for LaCie 8TB 2big Thunderbolt 2 Series 2-Bay RAID 9000438U
(PDF file, 1.07 MB)
Additional parameters of the LaCie 8TB 2big Thunderbolt 2 Series 2-Bay RAID 9000438U:
Specifications
    Capacity 8 TB
    Internal Storage Media 2 x hot-swappable 7200 rpm / 64 MB cache (or greater) hard disks

    Hot swapping will result in data loss in a RAID 0 array
    Interface 2 x Thunderbolt 2 ports
    1 x USB 3.0 port (UAS and USB 2.0 compatible)
    Interface Transfer Rate (Max) Thunderbolt 2: 20 Gb/s
    USB 3.0: 5 Gb/s
    Performance Benchmark Thunderbolt 2 and USB 3.0:
    Reads | Writes (MB/s)
    RAID 0: 360 MB/s | 360 MB/s
    RAID1: 170 MB/s | 180 MB/s

    These transfer rates were achieved using AJA System Test when connected to a 13" Macbook Pro® with a 2.8GHz Intel® Core™ i7 processor and 8GB RAM. Actual data rates may vary depending on operating environment and other factors, such as RAID mode, RAID configuration, and disk capacity
    Interface Technology Bidirectional 20 Gb/s permits a high-resolution display and RAW 4K video playback
    Power Saving Mode Reduce power consumption by pressing the front button to spin down disks without disrupting daisy chain transfers
    (short press initiates power-saving mode; long press turns product off completely)
    RAID Modes Preconfigured HFS+ RAID 0 Hardware RAID 0 (FAST) / 1 (SAFE) / JBOD Easy RAID selection button
    Daisy Chain Connect up to six Thunderbolt-compatible devices - including Thunderbolt 2 and LaCie Thunderbolt Series products - to a computer via a single Thunderbolt cable

    To achieve full interface bandwidth, connect the product to either a USB 3.0 or Thunderbolt 2 port on a computer or device
    Security AES 256-bit software encryption
    Kensington lock compatible
    Integrated cable lock
    Cooling Aluminum enclosure with improved internal heat dissipation
    Thermoregulated Noctua cooling fan: effective and whisper-quiet cooling
    Alerts System monitoring and email alerts for failure and warning events
    LEDs Front-facing disk status LEDs
    Acoustics Idle Mode: 25 dB
    Operating Mode: 26 dB
    Operating Max: 28 dB
    Power Supply 100-240 V; 50/60 Hz; 60 W
    System Requirements Computer with a Thunderbolt 2, USB 3.0, Thunderbolt, or USB 2.0 port
    Thunderbolt 2: Mac OS X 10.8.5 or later
    USB 3.0: Windows XP, Windows Vista, Windows 7, Windows 8, or Mac OS X 10.6 or later
    Minimum free disk space: 600 MB recommended

    To achieve full interface bandwidth, connect the product to either a USB 3.0 or Thunderbolt 2 port on a computer or device
    Windows XP 32-bit does not support volumes with capacities exceeding 2 TB
    Dimensions (WxHxD) 4.3 x 8.5 x 5.1" / 109 x 217 x 130 mm
    Weight 6.6 lb / 3.0 kg
    Packaging Info
    Package Weight 9.8 lb
    Box Dimensions (LxWxH) 12.047 x 8.898 x 8.032"
    The user manual for the LaCie 8TB 2big Thunderbolt 2 Series 2-Bay RAID 9000438U can be downloaded in .pdf format if it did not come with your new hard drive arrays, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other LaCie users keep a unique electronic library for LaCie hard drive arrayss, where you can use our link to download the user manual for the LaCie 8TB 2big Thunderbolt 2 Series 2-Bay RAID 9000438U.

    The user manual lists all of the functions of the LaCie 8TB 2big Thunderbolt 2 Series 2-Bay RAID 9000438U, all the basic and advanced features and tells you how to use the hard drive arrays. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from LaCie service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the LaCie 8TB 2big Thunderbolt 2 Series 2-Bay RAID 9000438U. User manuals are also available on the LaCie website under Computers & Solutions - Drives & Storage - Hard Drive Arrays.
