User manual for the Lectrosonics HM Digital UHF Wireless Plug-On Transmitter &

The user manual for the Lectrosonics HM Digital UHF Wireless Plug-On Transmitter & provides necessary instructions for the proper use of the product Pro Audio - Location Sound - Wireless Transmitters.

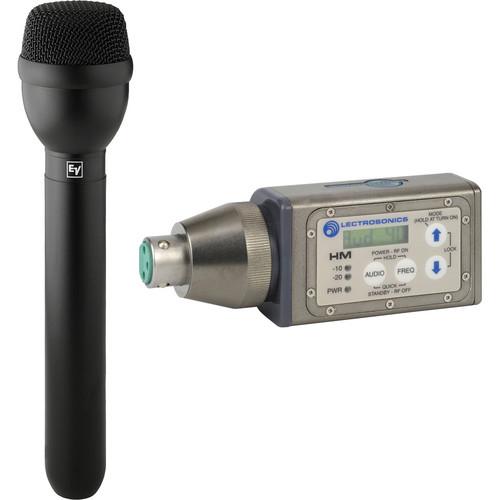

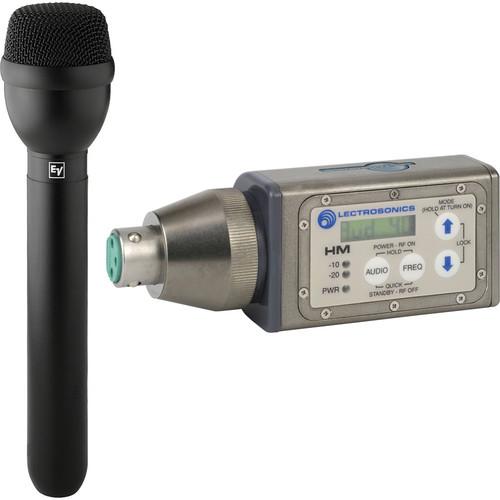

The block 24 Lectrosonics HM Digital UHF Wireless Plug-On Transmitter & RE50B Mic Kit from B&H includes a DSP-based transmitter that operates in native Digital Hybrid Wireless mode and an Electro-Voice RE50B ENG (Electronic News Gathering) microphone. The kit is designed to work with Lectrosonics 200 series, 100 series, IFB product groups, plus two modes for compatibility with analog receivers from other manufacturers (all sold separately).
If you own a Lectrosonics wireless transmitters and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Lectrosonics HM Digital UHF Wireless Plug-On Transmitter & in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Lectrosonics HM Digital UHF Wireless Plug-On Transmitter &:
Specifications
  • Lectrosonics HM Digital UHF Wireless Plug-On Microphone Transmitter (Freq Block 24)
    Frequency Selection 256 frequencies in 100 kHz steps
    Operating Frequency 614.400 - 639.900 MHz
    RF Power Output 100 mW (nominal)
    Pilot Tone 25 to 32 kHz; 5 kHz deviation (in the 400 Series operating mode)
    Frequency Stability ± 0.002%
    Deviation ± 75 kHz (max)
    Spurious Emission 60 dB below carrier
    Equivalent Input Noise -125 dBV (A-weighted)
    Input Level Nominal 2 mV to 300 mV, before limiting; greater than 1V maximum, with limiting
    Input Impedance 300 Ohms
    Limiter Dual envelope "soft" limiter; greater than 30 dB range
    Gain Range 55 dB; panel mounted membrane switches
    Modulation Dual bi-color LEDs indicate modulation of -20, -10, 0, +10 dB referenced to full modulation
    Frequency Response 35 Hz to 20 kHz (+/-1dB)
    Low Frequency Roll-Off Adjustable for -3 dB @ 30, 50, 70 Hz
    THD 0.2% (typ. 100 Hz to 20 kHz)
    Signal to Noise Ratio SmartNR Off
    • no limiting: 103.5 dB
    • limiting: 108 dB

    SmartNR Normal
    • no limiting: 107 dB
    • limiting: 111.5 dB

    SmartNR Full
    • no limiting: 108.5 dB
    • limiting: 113 dB
    Dynamic Range 125 dB (with full Tx limiting)
    Controls and Indicators
    • Power/Phantom "ON-OFF" switch
    • Phantom voltage selector switch
    • Audio input gain knob
    • LCD w/membrane switches
    • LED audio level indicators
    Audio Input Jack Standard 3-pin XLR (female)
    Phantom Power Off; 5V @ 18 mA max; 15V @ 15 mA max; 48V @ 4 mA max
    Antenna Housing and attached microphone form the antenna
    Battery Two 1.5 Volt AA lithium or rechargeable NiMH recommended
    Battery Life Alkaline
    • No Phantom: 5 hrs
    • 48V on: 3.5 hrs

    NiMH 2500
    • No Phantom: 9.25 hrs
    • 48V on: 7 hrs

    Lithium
    • No Phantom: 16 hrs
    • 48V on: 12.75 hrs
    Emission Standard 180KF3E
    Dimensions 4.25 x 1.62 x 1.38" (10.8 x 4.1 x 3.5 cm)
    Weight 6.7 oz (190 g) without batteries
    Packaging Info
    Box Dimensions (LxWxH) 9.7 x 7.9 x 3.0"
  • Electro-Voice RE50B - Omnidirectional Dynamic Shockmounted ENG Microphone (Black)
    Transducer Dynamic
    Polar Pattern Omnidirectional
    Frequency Response 80 Hz - 13 kHz
    Open Circuit Voltage 1.6 mV/Pascal
    Power Requirements None Dynamic, Requires No Phantom or Battery Power
    Impedance 150 ohms
    Output Connector XLR-3M Type
    Specialties Integral windscreen blast filter with internal shockmounting
    Case Construction Aluminum
    Dimensions (L x D) 7.76 x 1.93" (197 x 49 mm)
    Weight 9.5 oz (269 g)
    Packaging Info
    Box Dimensions (LxWxH) 9.921 x 5.433 x 2.677"
