User manual for the Lectrosonics L Series, LR Receiver/LT Beltpack ZS-LRLT-A1

The user manual for the Lectrosonics L Series, LR Receiver/LT Beltpack ZS-LRLT-A1 provides necessary instructions for the proper use of the product Pro Audio - Location Sound - Wireless Systems.

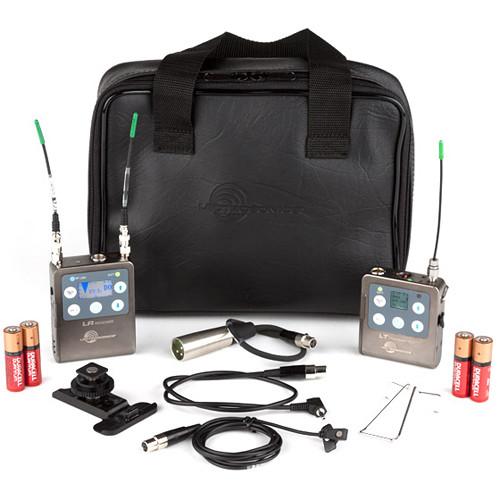

The L Series LR Receiver/LT Beltpack Transmitter and Mic with Accessory Kit from Lectrosonics is a compact digital hybrid wireless receiver and transmitter bundled with a lavalier microphone and accessories for capturing audio. This kit includes the LR portable receiver, LT portable transmitter, M152/5P omnidirectional lavalier microphone, LRSHOE camera shoe mount, one TA3F to XLRM cable, one TA3F to 1/8" TRS cable, and a zippered carrying pouch. The system is tuned to A1 frequency band between 470.100 to 537.575 MHz.
If you own a Lectrosonics wireless systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Lectrosonics L Series, LR Receiver/LT Beltpack ZS-LRLT-A1 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Lectrosonics L Series, LR Receiver/LT Beltpack ZS-LRLT-A1Download user manual for Lectrosonics L Series, LR Receiver/LT Beltpack ZS-LRLT-A1
(PDF file, 7.76 MB)
Additional parameters of the Lectrosonics L Series, LR Receiver/LT Beltpack ZS-LRLT-A1:
Specifications
    • L Series LR Mini Hybrid Portable Wireless Receiver (A1: 470.100 to 537.575 MHz)
      Channel A1
      Operating Frequencies 470.100 to 537.575 MHz
      Frequency Selection Steps Selectable 25 or 100 kHz
      Receiver Type Dual conversion, superheterodyne
      IF Frequency 243.950 MHz and 250.000 kHz
      Frequency Stability ± 0.001%
      Front End Bandwidth 20 MHz @ -3 dB
      Sensitivity 20 dB SINAD: 1.0 uV (-107 dBm), A weighted
      60 dB Quieting: 2.2 uV (-100 dBm), A weighted
      Squelch Quieting > 100 dB typical
      Modulation Acceptance +/-100 kHz max. varies with selected compatibility mode
      Image and Spurious Rejection 85 dB
      Third Order Intercept 0 dBm
      Diversity Method SmartDiversity phased antenna combining
      FM Detector Digital pulse counting detector
      RF Spectrum Analyzer Single and multiple block scanning modes with coarse and fine views of results
      Antenna Inputs 2x 50 ohms SMA female connectors
      Audio Output 1x TA3 male (mini XLR) balanced output
      Audio Output Level Adjustable -50 to +5 dBu in 1 dB steps, unbalanced output level is 6 dB lower
      Front Panel Controls Sealed panel with membrane switches
      LCD for setup menus and monitoring
      Audio Test Tone 1 kHz, -50 dBu to +5 dBu output (balanced), 1% THD
      Transmitter Battery Type Selection AA alkaline or lithium
      Timer available for use with alkaline, lithium and HiMH
      Audio Polarity Selection Normal or inverted
      Compatibility Modes Digital Hybrid (North American and European)
      Lectrosonics 100, 200 and 300 series
      Lectrosonics IFB
      Non-Lectrosonics modes 3, 6 an 7 (contact the factory for details)
      SmartNR (Noise Reduction) Off, Normal, Full modes (available in Digital Hybrid mode only)
      Audio Performance
      Frequency Response 32 Hz to 20 kHz (+/- 1 dB) receiver only (see transmitter documentation for overall system response)
      Total Harmonic Distortion (THD) <0.4 (0.2% typical in Digital Hybrid mode)
      Top Panel Features 1 x TA3M audio output jack
      2 x SMA antenna jacks 1 x IR (infrared) port
      Battery / Runtime 4 hours, AA alkaline
      Operating Temperature -4 to 32 °F (-20 to +50°C)
      Dimensions (L x W x H) 3.21 x 2.45 x 0.84" (82 x 62 x 21 mm)
      Weight 6.54 oz (185.4 g) with two AA lithium batteries
      Packaging Info
      Box Dimensions (LxWxH) 9.7 x 8.1 x 2.9"
    • LT Beltpack Transmitter (A1: 470.100 to 537.575 MHz)
      Channel A1
      Frequency Range 470.100 to 537.575 MHz
      Frequency Selection Steps: Selectable 25 or 100 kHz
      RF Power Output 50 or 100 mW
      Pilot Tone 25 to 32 kHz, 5 kHz deviation (Digital Hybrid mode)
      Frequency Stability ± 0.002%
      Deviation ± 75 kHz max. (Digital Hybrid mode)
      Spurious Radiation 60 dB below carrier
      Equivalent Input Noise -120 dBV (A-weighted)
      Input Level Mic: Nominal 2 to 300 mV, before limiting
      Greater than 1 V maximum, with limiting
      Instrument: 1 MOhm high level
      Input Impedance 2 kOhms
      Input Limiter DSP controlled, dual envelope "soft" limiter with greater than 30 dB range
      Gain Control Range 44 dB, digital control
      Modulation Indicators Dual bicolor LEDs indicate modulation of -20, -10, 0 and +10 dB referenced to full modulation
      LCD bar graph
      Audio Performance
      Frequency Response 90 Hz to 20 kHz (+/-1 dB)
      Low Frequency Roll-Off -12 dB/octave, 70 Hz
      THD 0.2% (typical)
      SNR at Receiver Output SmartNR: Off 103.5 (no limiting) 108.0 (with limiting)
      Normal: 107.0 (no limiting) 111.5 (with limiting)
      Full: 108.5 (no limiting) 113.0 (with limiting)

      Note: The dual envelope "soft" limiter provides good handling of transients using variable attack and release time constants. Once activated, the limiter compresses 30+ dB of transmitter input range into 4.5 dB of receiver output range, thus reducing the measured figure for SNR without limiting by 4.5 dB
      Switch Controls Top panel slide switch; programmable as power, mute, talkback or no (off) function
      Side panel membrane switches with LCD interface for power on/off and all setup and configuration controls
      Audio Input Jack 1x Switchcraft 5-pin locking (TA5F)
      Antenna Galvanized steel, flexible wire
      Battery 2x AA alkaline, lithium, NiMH rechargeable
      Battery Life Duracell Quantum: 4.75 hours
      Eneloop 2400 mAH NiMH: 6 hours
      Additional Ports USB on side panel for firmware updates
      Dimensions (L x W x H) 2.85 x 2.45 x 0.75" (72 x 62 x 19 mm)
      Weight 5.9 ounces (169 grams), with alkaline AA batteries
      Packaging Info
      Box Dimensions (LxWxH) 9.8 x 7.9 x 3.0"
    • LRSHOE Receiver Mount Kit for LR Receiver
      Dimensions Not listed by manufacturer
      Weight Not listed by manufacturer
      Packaging Info
      Box Dimensions (LxWxH) 5.0 x 4.0 x 1.0"
    • MCLRTRS Audio Patch Cord for LR Receiver with 1/8" TRS Camera Input (20")
      Connector 1 1/8" (3.5 mm) TRS
      Connector 2 TA3F
      Length 20" (51 cm)
      Weight Not listed by manufacturer
      Packaging Info
      Box Dimensions (LxWxH) 6.0 x 1.0 x 0.3"
    • MCSRXLR TA3 to XLR Cable for SR Receiver (12")
      Packaging Info
      Box Dimensions (LxWxH) 3.0 x 2.6 x 0.6"
    • M152/5P - Omnidirectional Lavalier Microphone
      Transducer Electret Condenser
      Polar Pattern Omnidirectional
      Frequency Response 20Hz - 20kHz
      Dynamic Range (Typical) Not Specified by Manufacturer
      Signal-to-Noise Ratio More than 38dB
      Maximum Input Sound Level 138dB, (@ 1kHz, 0.5% THD)
      Power Requirements Max Operating Voltage: 10V supplied by transmitter
      Output Impedance 3k (2-6k)
      Output Connectors TA5-female for UM Series Transmitters
      Pad No
      Low Frequency Roll-Off No
      Dimensions Not Specified by Manufacturer
      Weight Not Specified by Manufacturer
      Packaging Info
      Box Dimensions (LxWxH) 3.6 x 2.4 x 1.2"
    • CCMINI Zippered Carrying Case
      Material Vinyl
      Type of Closure Zipper
      Interior Dimensions 10 x 7.0 x 2.0" (25.4 x 17.8 x 5.1cm) (LxWxH)
      Carrying/Transport Options Carrying handle
      Weight Not Specified by Manufacturer
      Packaging Info
      Box Dimensions (LxWxH) 3.7 x 2.4 x 1.0"
