User manual for the Lectrosonics SSM Micro Belt-Pack Wireless Transmitter
The user manual for the Lectrosonics SSM Micro Belt-Pack Wireless Transmitter provides
necessary instructions for the proper use of the product Pro Audio - Location Sound - Wireless Transmitters.

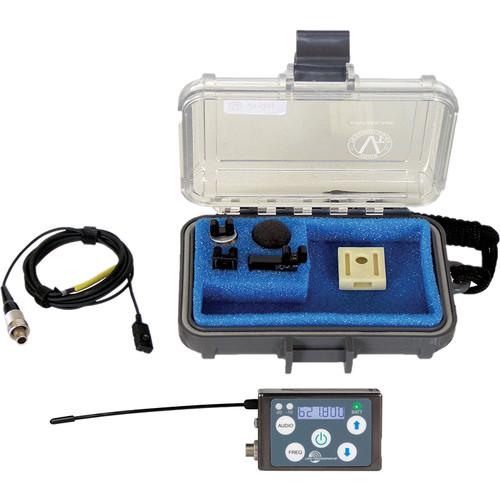

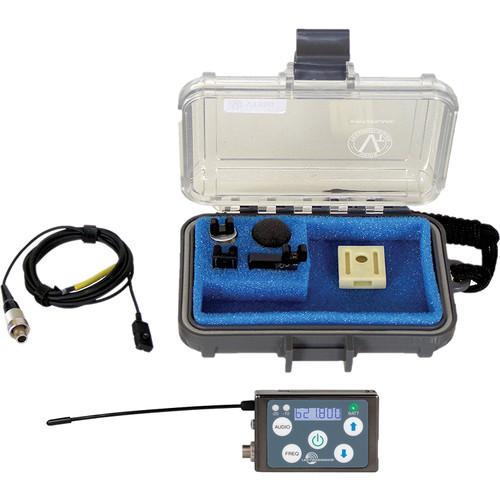

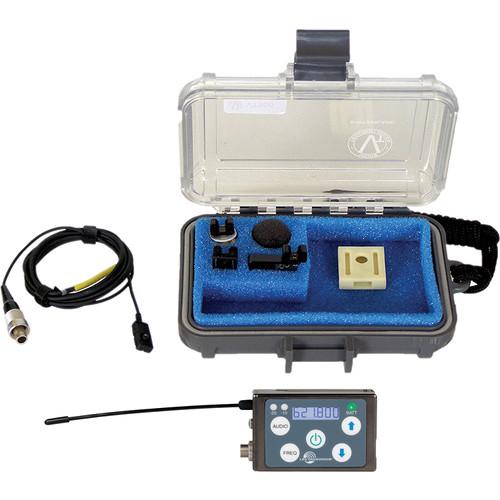

The SSM Micro Belt-Pack Wireless Transmitter with VT500 Lavalier Mic Kit from Lectrosonics features a miniature SSM transmitter and a Voice Technologies VT500 Omnidirectional microphone with a 3-pin LEMO connector. It can be used when paired with a Lectrosonics receiver (sold separately) for applications such as live stage, theater, broadcast TV, and more or anywhere else where concealment in costuming is required.
If you own a Lectrosonics wireless transmitters and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Lectrosonics SSM Micro Belt-Pack Wireless Transmitter in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Lectrosonics SSM Micro Belt-Pack Wireless Transmitter:
Specifications
Lectrosonics SSM Digital Hybrid Wireless Miniature Transmitter (B1: 537.600 to 614.375 MHz)
Operating Frequency
B1: 537.600 to 614.375 MHz
Frequency Selection Steps
Selectable; 100 kHz steps or 25 kHz
RF Power Output
Switchable; 25 or 50 mW
Pilot Tone
25 to 32 kHz; 5 kHz deviation (Digital Hybrid mode)
Frequency Stability
± 0.002%
Deviation
± 75 kHz max. (Digital Hybrid mode)
Spurious Radiation
60 dB below carrier
Equivalent Input Noise
-120 dBV, A-weighted
Input Level
Nominal 2 to 300 mV, before limiting Greater than 1 V maximum, with limiting
Input Impedance
Mic: 300 or 4.5 kOhms; selectable Line: Greater than 100 kOhms
Input Limiter
DSP controlled, dual envelope "soft" limiter with greater than 30 dB range
Gain Control Range
44 dB; digital control
Modulation Indicators
Dual bicolor LEDs indicate modulation of -20, -10, 0 and +10 dB referenced to full modulation
At Receiver Output: SmartNR Off: No limiting 103.5, w/limiting 108.0 SmartNR Normal: No limiting 107.0, w/limiting 111.5 SmartNR Full: No limiting 108.5, w/limiting 113.0
Note: The dual envelope "soft" limiter provides the handling of transients using variable attack and release time constants. Once activated, the limiter compresses 30+ dB of transmitter input range into 4.5 dB of receiver output range, thus reducing the measured figure for SNR without limiting by 4.5 dB
Controls
Side-panel membrane switches with LCD interface for power on/off and all setup and configuration controls Responds to remote commands from smartphones with 3rd party app.
