User manual for the Lectrosonics UCR411A - Wireless Diversity Receiver UCR411A-20
The user manual for the Lectrosonics UCR411A - Wireless Diversity Receiver UCR411A-20 provides
necessary instructions for the proper use of the product Pro Audio - Location Sound - Wireless Receivers.

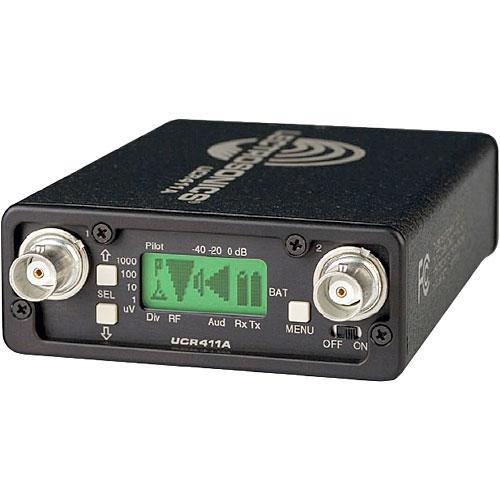

The Lectrosonics UCR411 is a portable, camera mountable receiver designed for professional audio applications in the field or indoors. The receiver is completely compatible with all 400 series wireless transmitters and provides 256 selectable UHF frequencies across a 25.6MHz tuning range. Smart Diversity reception reduces RF interference and dropout and a built-in RF spectrum analyzer searches across the entire 25.6MHz tuning range, locating the strongest possible frequencies in the area. The clear frequencies are marked and displayed on the back-lit LCD. Balanced XLR output provides maximum output gain with minimal noise and the receiver is powered with internal 9V batteries or an external DC power supply.
|
If you own a Lectrosonics wireless receivers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Lectrosonics UCR411A - Wireless Diversity Receiver UCR411A-20 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Lectrosonics UCR411A - Wireless Diversity Receiver UCR411A-20:
| Type of Receiver | Diversity / Triple conversion, superheterodyne | | RF Carrier Frequency Range | Frequency Block 20 | | Approx. Working Range | 300' in adverse conditions
1,000' in ideal conditions | | Overall Frequency Response | 30Hz to 20kHz (+/- 1dB) | | Signal-to-Noise Ratio | 103.5 to 113dB (varies with SmartNR setting) | | # Of Channels | 256 frequencies in 100kHz steps per 26MHz wide block | | Type of Outputs | Balanced XLR Male Output | | Headphone Monitoring | No | | Power Requirements | Ext DC: Minimum 10 to Maximum 18VDC; 1.6W, 100mA at 12VDC
Int Batt: 9V alkaline or lithium (90mA @ 9V, 120mA @ 6V) | | Battery Type/Approx. Life | 9V Alkaline: 3.5 hours continuous, 4 hours intermittent
9V Lithium: Up to 12 hours (continuous and intermittent usage are the same) | | Display | Multi-Function Back-lit LCD display | | Mounting Options | Camera or Belt Mount | | Antenna Type | 1/4 wave | | Dimensions | 3.23 x 1.25 x 4.64" (82.042 x 31.75 x 117.856mm) WxHxD | | Weight | 14 oz (397g) (with batteries) | | Package Weight | 3.3 lb | | Box Dimensions (LxWxH) | 13.9 x 10.6 x 4.2" | |
The user manual for the Lectrosonics UCR411A - Wireless Diversity Receiver UCR411A-20 can be downloaded in .pdf
format if it did not come with your new wireless receivers, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Lectrosonics users keep a unique electronic library
for Lectrosonics wireless receiverss,
where you can use our link to download the user manual for the Lectrosonics UCR411A - Wireless Diversity Receiver UCR411A-20.
The user manual lists all of the functions of the Lectrosonics UCR411A - Wireless Diversity Receiver UCR411A-20,
all the basic and advanced features and tells you how to use the wireless receivers.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Lectrosonics service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Lectrosonics UCR411A - Wireless Diversity Receiver UCR411A-20. User manuals are also
available on the Lectrosonics website under Pro Audio - Location Sound - Wireless Receivers.
