User manual Leica Leica S-E Medium Format DSLR Camera (Typ 006) 10812

Operating instructions and pdf manual for use - Leica Leica S-E Medium Format DSLR Camera (Typ 006) 10812 User manual, User manual Leica Leica S-E Medium Format DSLR Camera (Typ 006) 10812, Leica, Leica, S-E, Medium, Format, DSLR, Camera, Typ, 006,


User manual for Leica Leica S-E Medium Format DSLR Camera (Typ 006) 10812

Leica Leica S-E Medium Format DSLR Camera (Typ 006) 10812
  • Basic description and contents of package
  • Product classification: Photography - Digital Cameras - Medium Format Cameras
  • Safety instructions
  • Startup and operation of the medium format cameras
  • Tips for setting up your
  • Settings and expert assistance
  • Contact service
  • Troubleshooting
  • Warranty information
  • Price: 10 USD
We recommend checking out our discussion threads on the Leica Leica S-E Medium Format DSLR Camera (Typ 006) 10812, which address similar problems with connecting and setting up Medium Format Cameras .



User manual for the Leica Leica S-E Medium Format DSLR Camera (Typ 006) 10812

The user manual for the Leica Leica S-E Medium Format DSLR Camera (Typ 006) 10812 provides necessary instructions for the proper use of the product Photography - Digital Cameras - Medium Format Cameras.

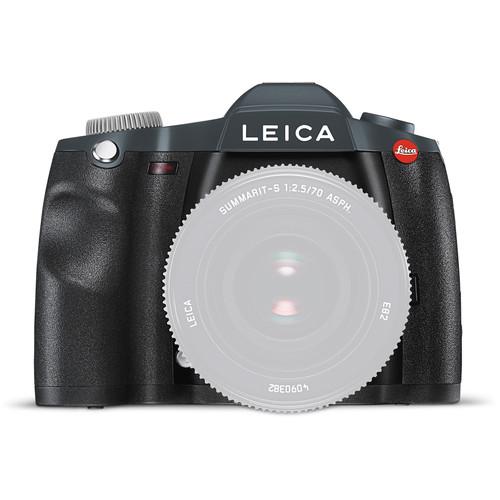

Designed for refined image-making, the Leica S-E (Typ 006) is a medium format DSLR featuring a 37.5MP 45 x 30mm CCD sensor to produce high-resolution imagery with marked sharpness, clarity, and dynamic range. The omission of an optical low-pass filter from the sensor's design further enables enhanced detail and resolution, that pairs well with the optimized Leica S lenses. Furthermore, on-sensor microlenses work to produce consistent and even light distribution to ensure edge-to-edge sharpness and illumination for a high degree of overall clarity. With a focus on simplicity and the utmost in image quality, the S-E's capabilities benefit those who value both performance and image quality, all set within a durable and efficient design.

The imaging quality is accentuated by efficient performance and processing abilities, aided by the integrated 2GB buffer for capturing up to 32 consecutive DNG lossless compressed files at a 1.5 fps continuous shooting rate. When working with fast-moving subjects, an intelligent center cross-type AF point helps to produce precise focus and a predictive algorithm works to ensure sharpness when photographing subjects in motion.

Complementing the advanced imaging capabilities of the Leica S-E is an equally refined body design, which takes on a minimalist structure with focus on the most essential shooting controls. A large, 3.0", 921.6k-dot, LCD monitor serves as a clear means for image review and menu navigation while the large 0.86x-magnification pentaprism viewfinder acts as a bright tool for image composition. A weather-sealed body construction protects the system from dust and moisture, and an anthracite dial and hot shoe complement the overall design and appearance of the camera.
If you own a medium format cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Leica Leica S-E Medium Format DSLR Camera (Typ 006) 10812 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Leica Leica S-E Medium Format DSLR Camera (Typ 006) 10812:
Camera
Lens Mount Leica S bayonet
Compatible Lenses Leica S lenses
Image Sensor 37.5 MP
45 x 30 mm CCD sensor (Leica Pro format)
No optical low-pass filter, IR filter on sensor. 0.8x crop factor compared to 35mm format
Aspect Ratio 3:2
Maximum Resolution 7500 x 5000 px
Pixel Size 6 µm
Dynamic Range 12 stops
Color Depth 16-bit
Color Space sRGB
Adobe RGB
eciRGB_v2
White Balance Auto WB, Daylight (5200 K), Cloudy (6000 K), Shade (7000 K), Tungsten light (3200 K), HMI (5600 K), Neon warm (4000 K), Neon cool (4500 K), Flash (5400 K), Gray card, Color temperature (2000-13100 K)
Sensitivity Auto, ISO 100 to ISO 1600
Exposure Mode Manual (M), Program automatic (P), Time pre-select (T), Aperture priority (A), Bulb with time pre-select (B)
Exposure Metering Open aperture measurement through lens (TTL)
Exposure Metering Mode Multi-pattern, Center-weighted, Spot (3.5%)
Exposure Compensation +/- 3 EV in 1/2 EV steps
Exposure Bracketing 3 or 5 images; 1/2, 1, 2, or 3 EV
Automatic mode (all images captured with single press of shutter release)
Metering Range Multi-pattern/center-weighted (ISO 100): +1.1 to +20 EV
Spot (ISO 100): +2.1 to +20 EV
Shutter Slot shutter (microprocessor-controlled)
Central shutter (with Leica S central shutter lenses)
Shutter Speed Range 125 to 1/4000 sec.
Drive Mode Single, continuous, self-timer (12 or 2 sec. delay with mirror up)
Continuous Shooting Up to 1.5 fps
Focus Central cross-type sensor (phase-detection AF)
Focus Modes AFs (sharpness priority), AFc (shutter release priority), AF (can be corrected at any time by manual focus), MF (manual focus with focus indicator on back panel display)
Recording
File Format DNG, DNG lossless compressed: 37.5 MP
JPEG: 37.5 MP, 9.3 MP, 2.3 MP
DNG+JPEG
File Size DNG: 72 MB
DNG lossless compressed: 42 MB
JPEG: 16 to 1 MB, depending on image content and resolution
Buffer 2 GB buffer size
DNG: Up to 28 images
DNG lossless compressed: Up to 32 images
JPEG: No limit
Storage 1x SD/SDHC/SDXC
1x CompactFlash (UDMA 7)
External via tethered connection
Viewfinder
Type Pentaprism optical viewfinder
Magnification 0.86x (at 70mm, infinity focus, 0 diopter)
Viewfinder Frame Coverage Approx. 98%
Diopter Correction -3 to +1 m
Display
LCD Monitor 3.0" 921.6k-dot TFT LCD with Corning Gorilla Glass cover, 100% frame coverage
Top colored OLED information display
Color Space sRGB (16 million colors)
Viewing Angle 170°
Flash
Flash Control SCA 3502, TTL, TTL HSS (up to 1/4000 sec.), A, M, Strobe, Start or end of exposure
Flash Synchronization X-sync with focal plane shutter: 1/125 sec.
X-sync with central shutter lens: Up to 1/1000 sec.
High-speed sync: Up to 1/4000 sec. with optional SF 58 flash and HSS setting
Flash Control SCA 3502
TTL
TTL HSS (up to 1/4000 sec.)
A
M
Strobe
Start or end of exposure
Interface LEMO Flash-sync
Hot shoe with middle and control contacts
Interface
Wi-Fi Built-in Wi-Fi and GPS modules
Interface Hot shoe
HDMI
LEMO flash sync socket/LEMO cable release socket
USB 2.0
Contact bar for Leica Multifunctional Handgrip S (optional)
Power Supply Battery S: Rechargeable lithium-ion battery pack (7.4 V, 2100 mAh
Leica AC Adapter S (optional)
Physical
Tripod Mount Thread 1/4"-20 and 3/8"-16 with anti-locking pins
Operating Conditions 32-113°F / 0-45°C
15-80% relative humidity
Dimensions 6.3 x 3.1 x 4.7" / 160 x 80 x 120 mm
Weight 2.8 lb / 1.26 kg (with battery)
Packaging Info
Package Weight 6.4 lb
Box Dimensions (LxWxH) 14.2 x 9.9 x 7.4"
