User manual for the Leica S-E (Typ 006) Medium Format DSLR Camera with 70mm 10825

The user manual for the Leica S-E (Typ 006) Medium Format DSLR Camera with 70mm 10825 provides necessary instructions for the proper use of the product Photography - Digital Cameras - Medium Format Cameras.

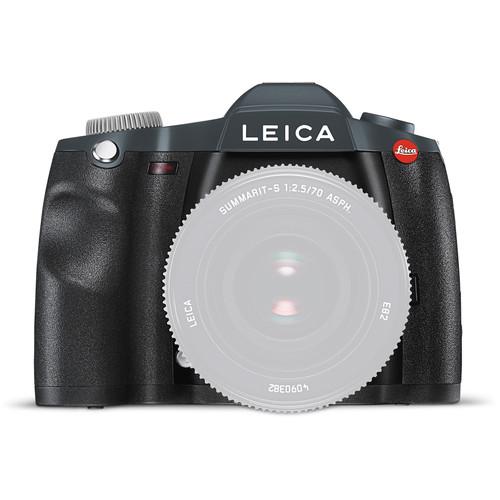

Pairing refined image quality with an advanced standard lens, the Leica S-E (Typ 006) Medium Format DSLR Camera with 70mm Lens Kit from B&H includes the S-E body along with a fast, normal prime lens.

The S-E features a 37.5 MP 30 x 45mm CCD sensor to produce high-resolution imagery with marked sharpness, clarity, and dynamic range. The omission of an optical low-pass filter from the sensor's design further enables enhanced detail and resolution, that pairs well with Leica S lenses. The imaging quality is accentuated by efficient performance and processing abilities, aided by the integrated 2GB buffer, for capturing up to 32 consecutive DNG lossless compressed files at a 1.5 fps shooting rate and an intelligent center cross-type AF point helps to produce precise focus while a predictive algorithm works to ensure sharpness when photographing subjects in motion. In addition to the imaging capabilities, the S-E also features a large 3.0" 921.6k-dot LCD monitor and a 0.86x-magnification pentaprism viewfinder. A weather-sealed body construction protects the system from dust and moisture, and an anthracite dial and hot shoe complement the overall design and appearance of the camera.

Included with the camera body is the Summarit-S 70mm f/2.5 ASPH. lens, which offers a 56mm equivalent focal length, relative to the 35mm format, along with a fast f/2.5 maximum aperture for selective focus control and working in difficult lighting conditions. High refractive index elements, one aspherical element, and two cemented elements made from high anomalous partial dispersion glass all help to nearly eliminate chromatic aberrations and produce a high degree of image sharpness and overall clarity.
If you own a Leica medium format cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Leica S-E (Typ 006) Medium Format DSLR Camera with 70mm 10825 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Leica S-E (Typ 006) Medium Format DSLR Camera with 70mm 10825:
Specifications
  • Leica Leica S-E Medium Format DSLR Camera (Typ 006)
    Camera
    Lens Mount Leica S bayonet
    Compatible Lenses Leica S lenses
    Image Sensor 37.5 MP
    45 x 30 mm CCD sensor (Leica Pro format)
    No optical low-pass filter, IR filter on sensor. 0.8x crop factor compared to 35mm format
    Aspect Ratio 3:2
    Maximum Resolution 7500 x 5000 px
    Pixel Size 6 µm
    Dynamic Range 12 stops
    Color Depth 16-bit
    Color Space sRGB
    Adobe RGB
    eciRGB_v2
    White Balance Auto WB, Daylight (5200 K), Cloudy (6000 K), Shade (7000 K), Tungsten light (3200 K), HMI (5600 K), Neon warm (4000 K), Neon cool (4500 K), Flash (5400 K), Gray card, Color temperature (2000-13100 K)
    Sensitivity Auto, ISO 100 to ISO 1600
    Exposure Mode Manual (M), Program automatic (P), Time pre-select (T), Aperture priority (A), Bulb with time pre-select (B)
    Exposure Metering Open aperture measurement through lens (TTL)
    Exposure Metering Mode Multi-pattern, Center-weighted, Spot (3.5%)
    Exposure Compensation +/- 3 EV in 1/2 EV steps
    Exposure Bracketing 3 or 5 images; 1/2, 1, 2, or 3 EV
    Automatic mode (all images captured with single press of shutter release)
    Metering Range Multi-pattern/center-weighted (ISO 100): +1.1 to +20 EV
    Spot (ISO 100): +2.1 to +20 EV
    Shutter Slot shutter (microprocessor-controlled)
    Central shutter (with Leica S central shutter lenses)
    Shutter Speed Range 125 to 1/4000 sec.
    Drive Mode Single, continuous, self-timer (12 or 2 sec. delay with mirror up)
    Continuous Shooting Up to 1.5 fps
    Focus Central cross-type sensor (phase-detection AF)
    Focus Modes AFs (sharpness priority), AFc (shutter release priority), AF (can be corrected at any time by manual focus), MF (manual focus with focus indicator on back panel display)
    Recording
    File Format DNG, DNG lossless compressed: 37.5 MP
    JPEG: 37.5 MP, 9.3 MP, 2.3 MP
    DNG+JPEG
    File Size DNG: 72 MB
    DNG lossless compressed: 42 MB
    JPEG: 16 to 1 MB, depending on image content and resolution
    Buffer 2 GB buffer size
    DNG: Up to 28 images
    DNG lossless compressed: Up to 32 images
    JPEG: No limit
    Storage 1x SD/SDHC/SDXC
    1x CompactFlash (UDMA 7)
    External via tethered connection
    Viewfinder
    Type Pentaprism optical viewfinder
    Magnification 0.86x (at 70mm, infinity focus, 0 diopter)
    Viewfinder Frame Coverage Approx. 98%
    Diopter Correction -3 to +1 m
    Display
    LCD Monitor 3.0" 921.6k-dot TFT LCD with Corning Gorilla Glass cover, 100% frame coverage
    Top colored OLED information display
    Color Space sRGB (16 million colors)
    Viewing Angle 170°
    Flash
    Flash Control SCA 3502, TTL, TTL HSS (up to 1/4000 sec.), A, M, Strobe, Start or end of exposure
    Flash Synchronization X-sync with focal plane shutter: 1/125 sec.
    X-sync with central shutter lens: Up to 1/1000 sec.
    High-speed sync: Up to 1/4000 sec. with optional SF 58 flash and HSS setting
    Flash Control SCA 3502
    TTL
    TTL HSS (up to 1/4000 sec.)
    A
    M
    Strobe
    Start or end of exposure
    Interface LEMO Flash-sync
    Hot shoe with middle and control contacts
    Interface
    Wi-Fi Built-in Wi-Fi and GPS modules
    Interface Hot shoe
    HDMI
    LEMO flash sync socket/LEMO cable release socket
    USB 2.0
    Contact bar for Leica Multifunctional Handgrip S (optional)
    Power Supply Battery S: Rechargeable lithium-ion battery pack (7.4 V, 2100 mAh
    Leica AC Adapter S (optional)
    Physical
    Tripod Mount Thread 1/4"-20 and 3/8"-16 with anti-locking pins
    Operating Conditions 32-113°F / 0-45°C
    15-80% relative humidity
    Dimensions 6.3 x 3.1 x 4.7" / 160 x 80 x 120 mm
    Weight 2.8 lb / 1.26 kg (with battery)
    Packaging Info
    Box Dimensions (LxWxH) 14.2 x 9.9 x 7.4"
  • Leica Summarit-S 70mm f/2.5 ASPH Lens
    Performance
    Focal Length 70mm
    Aperture Maximum: f/2.5
    Minimum: f/22
    Camera Mount Type Leica S bayonet
    Format Compatibility Digital Medium Format Sensor
    Angle of View 42°
    Minimum Focus Distance 1.6' (48 cm)
    Magnification 0.21x
    Maximum Reproduction Ratio 1:5
    Elements/Groups 8/6
    Diaphragm Blades Not Specified By Manufacturer
    Features
    Image Stabilization No
    Autofocus No
    Tripod Collar No
    Physical
    Filter Thread 82 mm
    Dimensions (DxL) Approx. 3.54 x 3.66" (8.99 x 9.30 cm)
    Weight 1.63 lb (740 g)
    Packaging Info
    Box Dimensions (LxWxH) 7.6 x 6.6 x 6.6"
