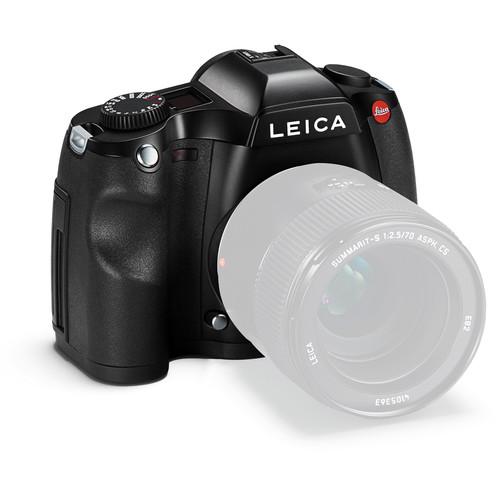

Leica S (Typ 007) Medium Format DSLR Camera (Body Only) 10804
  • Manufacturer: Leica
  • Basic description and contents of package
  • Product classification: Photography - Digital Cameras - Medium Format Cameras
  • Safety instructions
  • Startup and operation of the medium format cameras
  • Tips for setting up your Leica
  • Settings and expert assistance
  • Contact Leica service
  • Troubleshooting
  • Warranty information
  • Price: 16 USD
We recommend checking out our discussion threads on the Leica S (Typ 007) Medium Format DSLR Camera (Body Only) 10804, which address similar problems with connecting and setting up Medium Format Cameras Leica.


User manual for the Leica S (Typ 007) Medium Format DSLR Camera (Body Only) 10804

The user manual for the Leica S (Typ 007) Medium Format DSLR Camera (Body Only) 10804 provides necessary instructions for the proper use of the product Photography - Digital Cameras - Medium Format Cameras.

Offering performance and flexibility unique to the medium format world, the Leica S (Typ 007) is a medium format DSLR offering high-resolution still and video recording capabilities. Revolving around a 37.5MP 30 x 45mm CMOS sensor and Maestro II image processor, this camera is notable in its ability to produce image quality with remarkable sharpness, clarity, and dynamic range. The omission of an optical low-pass filter from the sensor's design further enables enhanced detail and resolution, that pairs well with the optimized Leica S lenses. Furthermore, on-sensor microlenses work to produce consistent and even light distribution to ensure edge-to-edge sharpness and illumination for a high degree of overall clarity. Beyond advanced still image recording, the S is also capable of producing 4K video files, as well as full HD, with a variety of options for audio and video recording. Utilizing the large sensor to the fullest extent, the S (Typ 007) is a versatile imaging device designed to deliver the utmost quality to both photographers and videographers.

Combining the sensor and processing prowess of the camera, a top sensitivity of ISO 6400 is afforded as well as the ability to record up to 32 consecutive DNG files at a rate of 3.5 fps. A predictive autofocus system, using a central cross-type phase detection point, helps to maintain critical focus in a variety of lighting conditions. Additionally, if working in live view, focus peaking serves as a useful alternative for ensuring image sharpness with manual focus techniques.

Complementing the advanced imaging capabilities of the Leica S is an equally refined body design, which takes on a minimalist structure with focus on the most essential shooting controls. A large, 3.0", 921.6k-dot, LCD monitor serves as a clear means for image review and menu navigation while the large 0.87x-magnification, pentaprism viewfinder acts as a bright tool for image composition. A weather-sealed, magnesium alloy, body construction protects the system from dust and moisture, including the series of interface ports and lens mount. Additionally, built-in Wi-Fi connectivity enables remote camera control and wireless transferring of files to mobile devices, and a GPS module enables the recording of location information to the EXIF data of image files.
If you own a Leica medium format cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Leica S (Typ 007) Medium Format DSLR Camera (Body Only) 10804 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Leica S (Typ 007) Medium Format DSLR Camera (Body Only) 10804:
Specifications
    Camera
    Lens Mount Leica S bayonet
    Compatible Lenses Leica S lenses
    Image Sensor 37.5 MP
    45 x 30 mm CMOS sensor (Leica Pro format)
    No optical low-pass filter, IR filter on sensor. 0.8x crop factor compared to 35mm format
    Aspect Ratio 3:2
    Maximum Resolution 7500 x 5000 px
    Pixel Size 6 µm
    Dynamic Range 13 stops
    Color Depth 16-bit
    Color Space sRGB
    Adobe RGB
    eciRGB_v2
    White Balance Daylight, clouds, shade, tungsten, HMI, neon warm, neon cool, flash, gray card, Live View, autoWB, color temperature (Kelvin)
    Sensitivity Auto, ISO 200 to ISO 6400 (ISO 100 pull setting)
    Exposure Mode P: full automatic (with manual exposure shift), T: time-priority, A: aperture-priority, M: manual
    Exposure Metering Open aperture measurement through lens (TTL)
    Exposure Metering Mode Multi-field (5 field)
    Center-weighted
    Spot (3.5%)
    Exposure Compensation +/- 3 EV in 1/2 EV steps
    Exposure Bracketing 3 or 5 images; 1/2, 1, 2, or 3 EV
    Metering Range Multi-field and center-weighted: EV 1.2 to 20
    Spot: EV 2.7 to 20
    Shutter Focal plane shutter; microprocessor-controlled metal blades
    Central shutter (with Leica S central shutter lenses)
    Shutter Speed Range 125 to 1/4000 sec. in 1/2 EV steps
    Drive Mode Single, continuous, interval, self-timer (12 or 2 sec. delay with mirror up)
    Continuous Shooting Up to 3.5 fps
    Focus Predictive autofocus with central cross sensor
    Focus Modes AF single, predictive AF continuous, manual override
    Recording
    File Format DNG lossless compressed: 37.5 MP
    JPEG: 37.5 MP, 9.3 MP, 2.3 MP
    DNG+JPEG
    File Size DNG lossless compressed: 42 MB
    JPEG: 16 to 1 MB, depending on image content and resolution
    Buffer DNG lossless compressed: Up to 32 images
    JPEG: No limit, depending on memory medium, exposure time, and ISO
    Storage 1x SD/SDHC/SDXC
    1x CompactFlash (UDMA 7)
    External via tethered connection
    Video
    Video Recording Full HD 1920 x 1080 (with Leica Pro Format sensor area)
    4K 4096 x 2160 (with Super 35 window mode)
    Frame Rate Full HD: 24, 25, and 30 fps
    4K: 24 fps
    Video File Format MOV (Motion JPEG)
    Color Sampling 4:2:2
    Exposure Control Manual and auto control
    Focus Manual, AF-field can be positioned
    Exposure Metering Mode Multi-field, center-weighted, spot (linked with the AF-field)
    Audio Manual and auto control
    In-camera stereo microphone: 48 kHz, 16 bit
    3.5 mm jack for audio-in or audio-out via included Audio-Adapter S
    Viewfinder
    Type Pentaprism optical viewfinder
    Magnification 0.87x (at 70mm, infinity focus, 0 diopter)
    Viewfinder Frame Coverage Approx. 98%
    Diopter Correction -3 to +1 m
    Focusing Screen Interchangeable
    Display
    LCD Monitor 3.0" 921.6k-dot TFT LCD with Corning Gorilla Glass cover, 100% frame coverage
    Top monochrome information display
    Color Space sRGB (16 million colors)
    Viewing Angle 170°
    Flash
    Interface LEMO Flash-sync
    Hot shoe with middle and control contacts
    Flash Synchronization X-sync with focal plane shutter: 1/125 sec.
    X-sync with central shutter lens: Up to 1/1000 sec.
    High-speed sync: Up to 1/4000 sec. with optional SF 58 flash and HSS setting
    Flash Control SCA 3502
    TTL
    TTL HSS (up to 1/4000 sec.)
    A
    M
    Strobe
    Start or end of exposure
    Interface
    Wi-Fi Built-in Wi-Fi and GPS modules
    Interface HDMI Type C jack
    Flash sync socket
    LEMO USB 3.0 high-speed jack
    Audio-Adapter (audio-in, audio-out, time code) LEMO flash sync socket
    LEMO cable release socket
    Contact bar for Leica Multifunctional Handgrip S (optional)
    Power Supply Battery S: Rechargeable lithium-ion battery pack (7.3 V, 2850 mAh
    Leica AC Adapter S (optional)
    Physical
    Tripod Mount Thread 1/4"-20 and 3/8"-16 with anti-locking pins
    Operating Conditions 32-113°F / 0-45°C
    15-80% relative humidity
    Dimensions 6.3 x 3.1 x 4.7" / 160 x 80 x 120 mm
    Weight 2.8 lb / 1.26 kg (without battery)
    Packaging Info
    Package Weight 7.65 lb
    Box Dimensions (LxWxH) 14.1 x 9.8 x 7.4"
