User manual Leica SL (Typ 601) Mirrorless Digital Camera 10850

Operating instructions and pdf manual for use - Leica SL (Typ 601) Mirrorless Digital Camera 10850 User manual, User manual Leica SL (Typ 601) Mirrorless Digital Camera 10850, Leica, SL, Typ, 601, Mirrorless, Digital, Camera, 10850,


User manual for Leica SL (Typ 601) Mirrorless Digital Camera 10850

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.

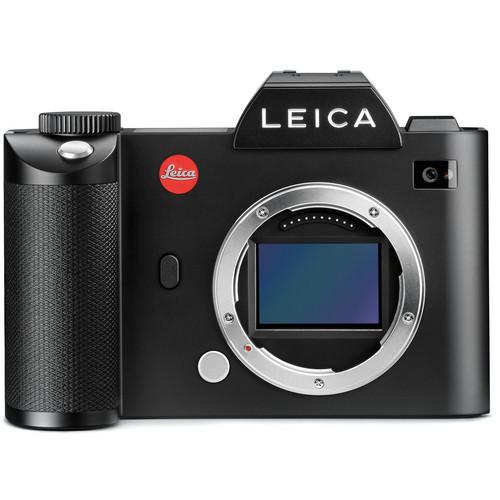

Leica SL (Typ 601) Mirrorless Digital Camera 10850
  • Manufacturer: Leica
  • Basic description and contents of package
  • Product classification: Photography - Digital Cameras - Mirrorless System Cameras
  • Safety instructions
  • Startup and operation of the mirrorless system cameras
  • Tips for setting up your Leica
  • Settings and expert assistance
  • Contact Leica service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the Leica SL (Typ 601) Mirrorless Digital Camera 10850, which address similar problems with connecting and setting up Mirrorless System Cameras Leica.



User manual for the Leica SL (Typ 601) Mirrorless Digital Camera 10850

The user manual for the Leica SL (Typ 601) Mirrorless Digital Camera 10850 provides necessary instructions for the proper use of the product Photography - Digital Cameras - Mirrorless System Cameras.

Best-in-class may be an understatement for the Leica SL (Typ 601) Mirrorless Digital Camera, an outstanding full-frame model that is offering professionals the "new Leica experience." This generation of Leica is aimed to take the top spot of modern imaging technology and by the implementation of an outstanding 24MP CMOS sensor and Leica's Maestro II processor, it will deliver among the best in image quality with sensitivities ranging from ISO 50-50000. The sensor also forgoes the use of a low-pass filter in order to maximize possible detail, especially with the use of Leica's outstanding lens lineups. And, to make the camera a true professional's tool, Leica has incorporated internal DCI 4K (4096 x 2160) video recording at 24 fps in a Super35 mode, along with the L-Log gamma for maximum dynamic range.

Beginning with stills, the sensor and processor combination delivers high-resolution images at a rate of up to 11 fps. The 2GB internal buffer also allows for bursts of up to 33 DNG files or unlimited JPEGs. The Contrast AF system is claimed to be the fastest among full-frame cameras with 49 fields to work with. This ensures that photographers will not miss the decisive moment.

Video is outstanding, with UHD 4K (3840 x 2160) at 30 and 25 fps available in addition to DCI 4K when using the camera's Super35 mode. Alongside this impressive resolution is the ability to utilize the L-Log gamma, a super flat profile that maximizes the dynamic range of the image and gives editors more information to work with in post production. Video is easily recorded internally via the UHS-II and UHS-I standard SD card slots at 4:2:0 8-bit sampling rate though it can be output over HDMI with 4:2:2 10-bit sampling.

Also available is Full HD (1920 x 1080) and standard HD (1280 x 720) at up to an impressive 120 fps for slow motion in the camera's full-frame mode. Numerous other video recording features were implemented on the SL (Typ 601) to make high-quality recording easier, this includes focus peaking, exposure simulation, clipping/zebras, grid overlays, aspect ratios, and safe area. Audio is also supported with a built-in stereo microphone and users can add both a 3.5mm headphone jack and 3.5mm microphone input with the optional AA-SCL4 Audio Adapter. Manual and auto audio control is available.

Made in Germany from two blocks of solid aluminum, the SL (Typ 601) fits right in with Leica's other precision made imaging tools. This body is designed for intuitive use, with numerous dials and buttons in addition to the implementation of a rear 2.95" 1.04M-dot rear LED touchscreen for hybrid operation as part of Leica's Professional user interface. The body also offers a spacious 0.66" EyeRes 4.4MP EVF with a fast refresh rate of 60 fps and a magnification of 0.8x for more natural handling and composition.

The weather-resistant body has a variety of other features packed into it with dual SD card slots, one with the UHS-II standard and a backup with the UHS-I standard, as well as a 1.3" top monochrome LCD screen for quickly viewing and changing exposure settings. Along with all of this, the SL (Typ 601) has built-in Wi-Fi connectivity for remote control and image capture using the Leica SL App and a GPS unit for geo-tagging your photographs.
If you own a Leica mirrorless system cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Leica SL (Typ 601) Mirrorless Digital Camera 10850 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Leica SL (Typ 601) Mirrorless Digital Camera 10850Download user manual for Leica SL (Typ 601) Mirrorless Digital Camera 10850
(PDF file, 19.02 MB)
Additional parameters of the Leica SL (Typ 601) Mirrorless Digital Camera 10850:
Imaging
Lens Mount Leica L
Camera Format Full-Frame
Pixels 24 Megapixel
Max Resolution 24 MP: 6000 x 4000
Aspect Ratio 3:2
Sensor Type / Size CMOS, 24 x 36 mm
File Formats Still Images: DNG, JPEG
Movies: MOV, MP4
Bit Depth 14-bit
Dust Reduction System Yes
Memory Card Type SDXC
SDHC
SD
Image Stabilization None
AV Recording
Video Recording Yes
Resolution 4096 x 2160: 24 fps
3840 x 2160: 30 fps, 25 fps
1920 x 1080: 24 fps, 25 fps, 30 fps, 50 fps, 60 fps
1920 x 1080: 100 fps, 120 fps
1280 x 720: 24 fps, 25 fps, 30 fps, 50 fps, 60 fps
1280 x 720: 100 fps, 120 fps
Aspect Ratio 16:9
Video Clip Length Up to 29 Minutes
Audio Recording Built-in Mic: With Video, Stereo
Optional External Mic: With Video, Stereo + Mono

External mic jack available with use of optional AA-SCL4 Audio Adapter

Focus Control
Focus Type Auto & Manual
Focus Mode Continuous-servo AF (C), Manual Focus (M), Single-servo AF (S), Touch AF & Shutter
Autofocus Points Contrast Detection:49
Viewfinder/Display
Viewfinder Type Electronic
Viewfinder Size 0.66"
Viewfinder Pixel Count 4,400,000
Viewfinder Eye Point 20.00 mm
Viewfinder Coverage 100%
Viewfinder Magnification Approx. 0.8x
Diopter Adjustment - 4 to +2 m
Display Screen 2.95" Touchscreen   LED (1,040,000)
Screen Coverage 100%
Exposure Control
ISO Sensitivity Auto, 50-50000
Shutter Type: Mechanical
Speed: 1/8000 - 60 second
Type: Mechanical
Speed: 30 minutes in  Time Mode
Remote Control RC-SCL4 Remote Release Cable (Optional)
Metering Method Center-weighted average metering, Multi-zone metering, Spot metering
Exposure Modes Modes: Aperture Priority, Manual, Program, Shutter Priority
Compensation: -3 EV to +3 EV (in 1/3 or 1/2 EV steps)
White Balance Modes Auto, Cloudy, Daylight, Flash, Fluorescent (Cool White), Fluorescent (Warm White), Manual, Shade, Tungsten
Burst Rate Up to 11 fps at 24 MP for up to 33 frames
Flash
Flash Modes Manual
TTL Auto
Built-in Flash No
Max Sync Speed 1 / 250 seconds
Dedicated Flash System TTL
External Flash Connection Hot Shoe, PC Terminal
Performance
Continuous Shooting Up to 11 fps
Self Timer 2 seconds, 12 seconds
Interval Recording Yes
Internal Memory None
Connectivity 1/8" Headphone, 1/8" Microphone, HDMI A (Full Size), USB 3.0, X-Sync Socket

1/8" microphone input and 1/8" headphone output available only with use of optional AA-SCL4 Audio Adapter

Wi-Fi Capable Yes
Power
Battery 1x BP-SCL4 Rechargeable Lithium-ion Battery Pack, 8.4 VDC, 1860 mAh
Operating/Storage Temperature Operating
32 to 104°F (0 to 40°C)
Humidity: 0 - 85%
Physical
Dimensions (WxHxD) 5.8 x 4.1 x 1.5" / 147.0 x 104.0 x 39.0 mm
Weight 1.86 lb / 847 g with battery
Packaging Info
Package Weight 5.7 lb
Box Dimensions (LxWxH) 14.3 x 10.0 x 7.4"
The user manual for the Leica SL (Typ 601) Mirrorless Digital Camera 10850 can be downloaded in .pdf format if it did not come with your new mirrorless system cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Leica users keep a unique electronic library for Leica mirrorless system camerass, where you can use our link to download the user manual for the Leica SL (Typ 601) Mirrorless Digital Camera 10850.

The user manual lists all of the functions of the Leica SL (Typ 601) Mirrorless Digital Camera 10850, all the basic and advanced features and tells you how to use the mirrorless system cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Leica service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Leica SL (Typ 601) Mirrorless Digital Camera 10850. User manuals are also available on the Leica website under Photography - Digital Cameras - Mirrorless System Cameras.
