User manual Leica Summicron-C T2.0 Lens Set (6 Lenses) LEI-SUMC-SET-CS

Operating instructions and pdf manual for use - Leica Summicron-C T2.0 Lens Set (6 Lenses) LEI-SUMC-SET-CS User manual, User manual Leica Summicron-C T2.0 Lens Set (6 Lenses) LEI-SUMC-SET-CS, Leica, Summicron-C, T2.0, Lens, Set, 6, Lenses, LEI-SUMC


User manual for Leica Summicron-C T2.0 Lens Set (6 Lenses) LEI-SUMC-SET-CS

Leica Summicron-C T2.0 Lens Set (6 Lenses) LEI-SUMC-SET-CS
  • Manufacturer: Leica
  • Basic description and contents of package
  • Product classification: Professional Video - Lenses & Lens Accessories - Digital Cine Lenses
  • Safety instructions
  • Startup and operation of the digital cine lenses
  • Tips for setting up your Leica
  • Settings and expert assistance
  • Contact Leica service
  • Troubleshooting
  • Warranty information
  • Price: 90 USD
We recommend checking out our discussion threads on the Leica Summicron-C T2.0 Lens Set (6 Lenses) LEI-SUMC-SET-CS, which address similar problems with connecting and setting up Digital Cine Lenses Leica.



User manual for the Leica Summicron-C T2.0 Lens Set (6 Lenses) LEI-SUMC-SET-CS

The user manual for the Leica Summicron-C T2.0 Lens Set (6 Lenses) LEI-SUMC-SET-CS provides necessary instructions for the proper use of the product Professional Video - Lenses & Lens Accessories - Digital Cine Lenses.

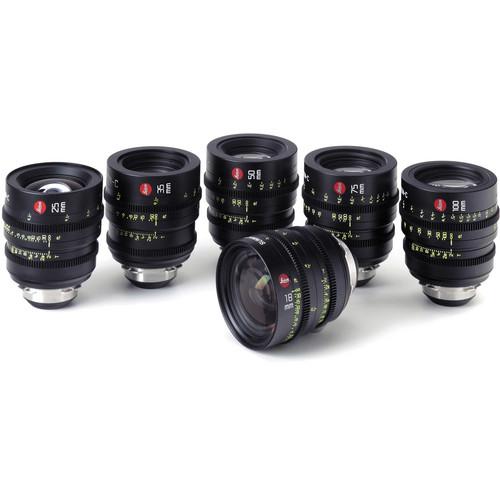

The Leica Summicron-C T2.0 Lens Set with Case includes six lenses, comprising 18mm, 25mm, 35mm, 50mm, 75mm, and 100mm. They feature an image circle of over 34mm, which easily covers the Super-35mm format, as well as covering the larger RED Epic Dragon sensor in 6K mode. The lenses feature similar characteristics as the larger, faster, and significantly more expensive Leica Summilux-C lenses. However, the Summicron-C lenses are one stop slower at T 2.0 and are 30% shorter and 20% lighter than the bigger lenses.

The lenses feature stainless steel PL mounts, which make the lenses compatible with the most commonly used professional digital cinema cameras, including the ARRI Alexa, RED Epic, Sony F5 and F55, and Canon C300 PL. They cover a large image circle, over 34mm diameter, allowing you to use these lenses on the RED Dragon sensor in 6K mode.

The lenses all maintain the same length and front barrel size (95mm), while the focus and iris gears are in the same position on each lens, speeding lens changes, as you don't need to adjust lens accessories. Mechanically the lenses use a Helix-style focus mechanism and an 8-blade iris and feature opposing focus scales: one for the operator side and one for the assistant side of the lens. The lenses are come in a hard case with a custom cut foam interior.
If you own a Leica digital cine lenses and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Leica Summicron-C T2.0 Lens Set (6 Lenses) LEI-SUMC-SET-CS in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Leica Summicron-C T2.0 Lens Set (6 Lenses) LEI-SUMC-SET-CS:
Mount Stainless steel ARRI-PL
Focal Length 18mm
25mm
35mm
50mm
75mm
100mm
Coverage >34mm diameter image circle
Aperture T2.0-22 + closed
Rotation Iris Scale: 77°
Focus Range: 300°
Close Focus Marked:
18mm: 12" (30.5 cm)
25mm: 12" (20.5 cm)
35mm: 14.4" (36.6 cm)
50mm: 24" (60.96 cm)
75mm: 31" (78.7 cm)
100mm: 39" (99.1 cm)
Front Diameter 95 mm
Dimensions (LxDiameter) Front to Flange x Front Diameter
4.0 x 3.7" (101 x 95 mm)
Weight 18mm: 2.9 lb (1.33 kg)
25mm: 3.4 lb (1.55 kg)
35mm: 2.9 lb (1.34 kg)
50mm: 3.2 lb (1.47 kg)
75mm: 2.7 lb (1.25 kg)
100mm: 2.7 lb (1.24 kg)
Packaging Info
Package Weight 37.5 lb
Box Dimensions (LxWxH) 23.0 x 21.0 x 15.0"
The user manual for the Leica Summicron-C T2.0 Lens Set (6 Lenses) LEI-SUMC-SET-CS can be downloaded in .pdf format if it did not come with your new digital cine lenses, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Leica users keep a unique electronic library for Leica digital cine lensess, where you can use our link to download the user manual for the Leica Summicron-C T2.0 Lens Set (6 Lenses) LEI-SUMC-SET-CS.

The user manual lists all of the functions of the Leica Summicron-C T2.0 Lens Set (6 Lenses) LEI-SUMC-SET-CS, all the basic and advanced features and tells you how to use the digital cine lenses. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Leica service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Leica Summicron-C T2.0 Lens Set (6 Lenses) LEI-SUMC-SET-CS. User manuals are also available on the Leica website under Professional Video - Lenses & Lens Accessories - Digital Cine Lenses.
