User manual Lenovo 14" ThinkPad T450 Ultrabook 20BV000CUS

Operating instructions and pdf manual for use - Lenovo 14" ThinkPad T450 Ultrabook 20BV000CUS User manual, User manual Lenovo 14" ThinkPad T450 Ultrabook 20BV000CUS, Lenovo, 14, ThinkPad, T450, Ultrabook, 20BV000CUS,


User manual for Lenovo 14" ThinkPad T450 Ultrabook 20BV000CUS

Lenovo 14
  • Manufacturer: Lenovo
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Laptops - Ultrabooks
  • Safety instructions
  • Startup and operation of the ultrabooks
  • Tips for setting up your Lenovo
  • Settings and expert assistance
  • Contact Lenovo service
  • Troubleshooting
  • Warranty information
  • Price: 899 USD
Lenovo 14 Lenovo 14 Lenovo 14 Lenovo 14 Lenovo 14 Lenovo 14 Lenovo 14 Lenovo 14 Lenovo 14

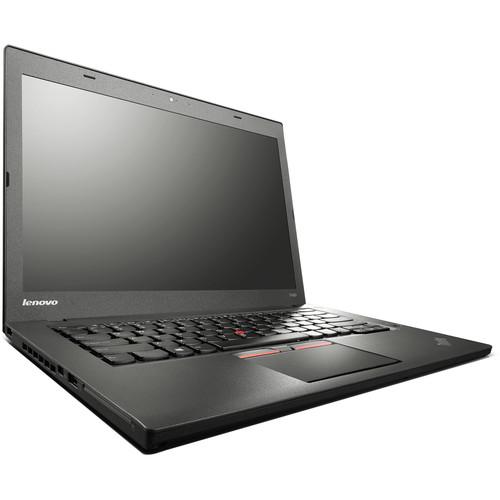

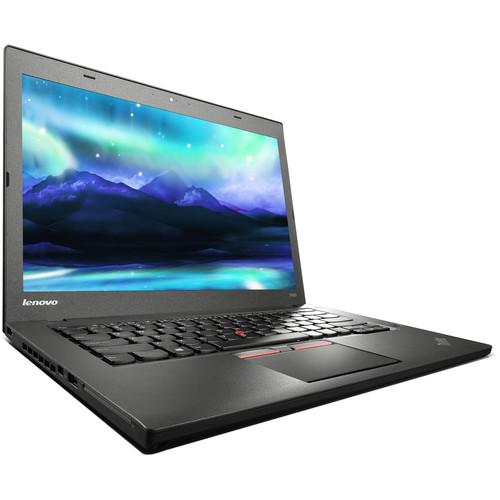

Click to enlarge image

We recommend checking out our discussion threads on the Lenovo 14" ThinkPad T450 Ultrabook 20BV000CUS, which address similar problems with connecting and setting up Ultrabooks Lenovo.



User manual for the Lenovo 14" ThinkPad T450 Ultrabook 20BV000CUS

The user manual for the Lenovo 14" ThinkPad T450 Ultrabook 20BV000CUS provides necessary instructions for the proper use of the product Computers & Solutions - Laptops - Ultrabooks.

Slim and portable at 0.83" thin, the 14" ThinkPad T450 Ultrabook from Lenovo is built with ports and connectivity options that are often found on mobile workstations. Designed for business productivity, this system is powered by a 2.3 GHz Intel Core i5-5300U Dual-Core processor that allows you to run multiple applications simultaneously. If you need more power, the processor can be overclocked to 2.9 GHz and the system's 4GB of 1600 MHz PC3-12800 DDR3L RAM allows the computer to quickly access frequently-used files and programs. The RAM comes in a configuration of one 4GB module installed in a 204-pin SO-DIMM socket. The SO-DIMM socket can support memory amounts up to 8GB and there is also a second SO-DIMM socket with the same specs, allowing the system to support a total of 16GB of RAM.

The 14" LED-backlit anti-glare display features an HD 1366 x 768 native resolution, a 16:9 aspect ratio, 200 cd/m2 brightness, and a 350:1 contrast ratio. The integrated Intel HD Graphics 5500 delivers a sharp, clear picture and you'll also be able to output video to an external display using the built-in Mini DisplayPort and VGA ports. For connecting to the Internet, a Gigabit Ethernet port and 802.11ac Wi-Fi are included. For connecting external peripherals such as storage or optical drives, this may be accomplished using the three USB 3.0 ports, one of which is powered for always-on device charging. Additional compatible peripherals may be paired using Bluetooth 4.0 technology.

For long-term storage of your files, the ThinkPad T450 features a 500GB 7200 rpm hard drive that allows access to your data. Whether you are listening to music, watching a movie, or playing a game, the dual integrated 1W stereo speakers with Dolby sound use the Realtek ALC3232 HD audio codec and offer high quality sound. There is also an integrated 720p webcam which allows you to engage in face-to-face conversations using Skype or other software, dual digital-array microphones, and a 4-in-1 media card reader that supports Secure Digital and MMC cards.

The Lenovo ThinkPad T450 includes two batteries: a 3-cell/23Wh internal battery and a 3-cell/23Wh external lithium-ion battery. Together, these two batteries will last for up to 10.08 hours before recharging is required. The system runs using an included 45W AC adapter and while the installed operating system is Windows 7 Pro (64-bit), a Windows 8.1 (64-bit) license is included at no additional cost.
If you own a Lenovo ultrabooks and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Lenovo 14" ThinkPad T450 Ultrabook 20BV000CUS in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Lenovo 14" ThinkPad T450 Ultrabook 20BV000CUS:
Performance
Processor 2.3 GHz Intel Core i5-5300U Dual-Core
Cache L3: 3 MB
System Bus 5 GT/s
Memory Slots: 2x SO-DIMM 204-Pin
Type: PC3-12800 1600 MHz DDR3L SDRAM
Installed: 4 GB (1x4 GB SO-DIMM 204-Pin)
Capacity: 16 GB
Graphics Card Type: Integrated
Installed: Intel HD Graphics 5500
Display
Type Widescreen
Size 14"
Backlight LED
Aspect Ratio 16:9
Finish Antiglare
Native Resolution 1366 x 768
Brightness 200cd/m2
External Resolution Up to 3840 x 2160
Storage
Hard Drive Installed: 500 GB 7200 rpm
Optical Drive None
Input/Output Connectors
Ports 3x USB 3.0 (A) (1x Always-on charging port)
Display 1x Mini DisplayPort
1x VGA
Audio Integrated Stereo Speakers
Dual Array Microphones
1/8" (3.5 mm) Headphone/Microphone Combo Jack
Flash Media Slot 1x SD
1x SDHC
1x SDXC
1x MMC
Communications
Network 1x 10/100/1000 Mbps Gigabit Ethernet (RJ-45)
Wi-Fi 802.11ac
Bluetooth Bluetooth 4.0
Webcam Yes
720p Video
General
Operating System Windows 7 Professional (64-bit)
Security HDD User Password Protection, Power-On Password, Infineon TPM Software Professional Package, Fingerprint Reader
Keyboard Type: Standard Notebook Keyboard
Features: Backlight
Pointing Device TrackPoint with Multi-Touch Control
Battery 3-Cell Built-In (23 Wh)
3-Cell External  Lithium-Ion (23 Wh)
Power Requirements Not Specified By Manufacturer
Dimensions (WxHxD) 13.3 x 0.8 x 9.2" / 337.8 x 20.3 x 233.7 mm
Weight 3.8 lb / 1.72 kg
Packaging Info
Package Weight 6.25 lb
Box Dimensions (LxWxH) 15.2 x 11.4 x 5.0"
The user manual for the Lenovo 14" ThinkPad T450 Ultrabook 20BV000CUS can be downloaded in .pdf format if it did not come with your new ultrabooks, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Lenovo users keep a unique electronic library for Lenovo ultrabookss, where you can use our link to download the user manual for the Lenovo 14" ThinkPad T450 Ultrabook 20BV000CUS.

The user manual lists all of the functions of the Lenovo 14" ThinkPad T450 Ultrabook 20BV000CUS, all the basic and advanced features and tells you how to use the ultrabooks. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Lenovo service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Lenovo 14" ThinkPad T450 Ultrabook 20BV000CUS. User manuals are also available on the Lenovo website under Computers & Solutions - Laptops - Ultrabooks.
