User manual for the Lenovo 14" ThinkPad X1 Carbon Multi-Touch 20BS009YUS

The user manual for the Lenovo 14" ThinkPad X1 Carbon Multi-Touch 20BS009YUS provides necessary instructions for the proper use of the product Computers & Solutions - Laptops - Ultrabooks.

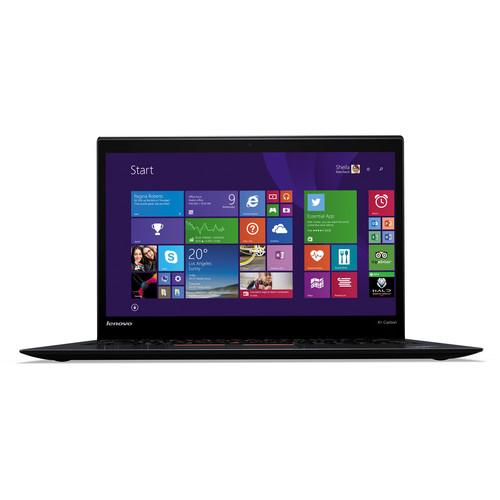

Thin at just 0.7" and featuring a 10-point multi-touch WQHD display, the 3rd Generation ThinkPad X1 Carbon 20BS009YUS 14" Multi-Touch Ultrabook Computer from Lenovo is a system designed for home and business users who need a reliable system for general use. The system is powered by a 2.6 GHz Intel Core i7-5600U dual-core processor, allowing you to run multiple applications simultaneously. If you need more power, the processor can achieve speeds of up to 3.2 GHz. Moreover, this notebook comes with 8GB of 1600 MHz PC3-12800 DDR3L RAM that allows it to quickly access frequently-used files and programs.

The 14" capacitive 10-point multi-touch IPS display features a WQHD 2560 x 1440 native resolution, LED backlighting, an anti-glare finish, a 16:9 aspect ratio, 300 cd/m2 brightness, a 700:1 contrast ratio, and 170° viewing angles. The 10-point multi-touch display works with the multi-touch features built into Windows 10 Home (64-bit), allowing you to control some aspects of the system without a keyboard or mouse. The integrated Intel HD Graphics 5500 delivers a sharp, clear picture and you'll also be able to output video to an external display via the built-in HDMI and Mini DisplayPort. Network connectivity is achieved using 802.11ac Wi-Fi and an included Ethernet Extension Cable provides wired network connectivity. For connecting external peripherals such as storage or optical drives, this may be accomplished using the two USB 3.0 ports, one of which is an always-on port for device charging. Additional compatible peripherals may be paired using Bluetooth 4.0 technology.

For long-term storage of your files, the 256GB Opal 2.0 SSD provides quick access to your data. While this SSD may not have the larger capacity of a traditional hard drive, SSDs contain no moving parts and are less susceptible to damage from bumps and drops. Having no moving parts also allows SSDs to operate with faster data transfer speeds. SSDs also receive less wear and tear, as they do not have any read and write heads for the drive media to come into contact with.

Whether you are listening to music, watching a movie, or playing a game, the built-in dual 1W stereo speakers with Dolby Home Theater audio use the Realtek ALC3232 HD audio codec and offer high quality sound. There is also an integrated 720p webcam which allows you to engage in face-to-face conversations using Skype or other software and integrated dual noise-canceling mics. Included with this system is an 8-cell, 50Wh lithium-polymer battery that lasts up for up to 9.9 hours before recharging is required. Using the included 65W power adapter, this battery may be recharged to 80% in 55 minutes and recharged to 100% in up 2.3 hours. The installed operating system is Windows 10 Home (64-bit).
If you own a Lenovo ultrabooks and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Lenovo 14" ThinkPad X1 Carbon Multi-Touch 20BS009YUS in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Lenovo 14" ThinkPad X1 Carbon Multi-Touch 20BS009YUS:
Specifications
Performance
Processor Intel Core i7-5600U Dual-Core
Base Clock Speed 2.6 GHz
Max Boost Speed 3.2 GHz
L3 Cache 4 MB
System Bus 5 GT/s
Memory Installed: 8 GB
Memory Type 1 x 8 GB PC3-12800 1600 MHz DDR3 SDRAM
Graphics Type Integrated
Graphics Card 1 x Intel HD Graphics 5500
Display
Panel Type IPS
Size 14"
Aspect Ratio 16:9
Native Resolution 2560 x 1440
Touchscreen Yes
Finish Matte
Brightness 300 cd/m2
Drives
Storage Drive 1 x 256 GB SSD; SATA
Optical Drive None
Input/Output Connectors
Ports 2 x USB 3.0
1 x Docking Connector
Display 1 x HDMI
1 x Mini DisplayPort
Audio 1/8" (3.5 mm) Headphone/Microphone Combo Jack
2 x Integrated Speaker
Integrated Microphone
Communications
Network 1 x 10/100/1000 Mbps Gigabit Ethernet (RJ-45) via included cable
Wi-Fi 802.11ac; Dual-Band
Bluetooth Bluetooth 4.0
Webcam Yes
720p Video
General
Operating System Windows 10 Home (64-bit)
Security HDD User Password Protection, Power-On Password, Infineon TPM Software Professional Package, Fingerprint Reader
Keyboard Type: Standard Notebook Keyboard
Features: Backlight
Pointing Device TouchPad & TrackPoint
Battery 8-Cell Non-Removable Lithium-Polymer  Providing up to 9.9 Hours per Charge (50 Wh)
Power Requirements 100-240 VAC
Dimensions (WxHxD) 13.0 x 0.7 x 8.9" / 33.0 x 1.8 x 22.6 cm
Weight 3.18 lb / 1.44 kg
Packaging Info
Package Weight 5.7 lb
Box Dimensions (LxWxH) 14.9 x 12.5 x 5.3"
The user manual for the Lenovo 14" ThinkPad X1 Carbon Multi-Touch 20BS009YUS can be downloaded in .pdf format if it did not come with your new ultrabooks, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Lenovo users keep a unique electronic library for Lenovo ultrabookss, where you can use our link to download the user manual for the Lenovo 14" ThinkPad X1 Carbon Multi-Touch 20BS009YUS.

The user manual lists all of the functions of the Lenovo 14" ThinkPad X1 Carbon Multi-Touch 20BS009YUS, all the basic and advanced features and tells you how to use the ultrabooks. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Lenovo service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Lenovo 14" ThinkPad X1 Carbon Multi-Touch 20BS009YUS. User manuals are also available on the Lenovo website under Computers & Solutions - Laptops - Ultrabooks.
