User manual Lenovo 15.6" ThinkPad E560 Notebook 20EV002JUS

Operating instructions and pdf manual for use - Lenovo 15.6" ThinkPad E560 Notebook 20EV002JUS User manual, User manual Lenovo 15.6" ThinkPad E560 Notebook 20EV002JUS, Lenovo, 15.6, ThinkPad, E560, Notebook, 20EV002JUS,


User manual for Lenovo 15.6" ThinkPad E560 Notebook 20EV002JUS

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Lenovo 15.6
  • Manufacturer: Lenovo
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Laptops - Notebooks
  • Safety instructions
  • Startup and operation of the notebooks
  • Tips for setting up your Lenovo
  • Settings and expert assistance
  • Contact Lenovo service
  • Troubleshooting
  • Warranty information
  • Price: 800 USD
Lenovo 15.6 Lenovo 15.6 Lenovo 15.6 Lenovo 15.6

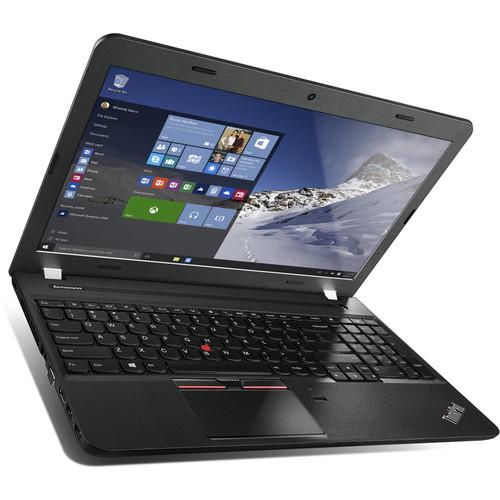

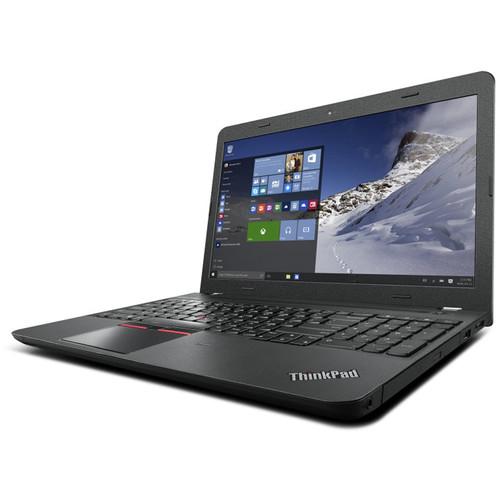

Click to enlarge image

We recommend checking out our discussion threads on the Lenovo 15.6" ThinkPad E560 Notebook 20EV002JUS, which address similar problems with connecting and setting up Notebooks Lenovo.



User manual for the Lenovo 15.6" ThinkPad E560 Notebook 20EV002JUS

The user manual for the Lenovo 15.6" ThinkPad E560 Notebook 20EV002JUS provides necessary instructions for the proper use of the product Computers & Solutions - Laptops - Notebooks.

The black 15.6" ThinkPad E560 Notebook from Lenovo is designed for small business, enterprise, and education users. It is well suited for web browsing, email, document creation, and multimedia playback. The system is powered by a 2.5 GHz Intel Core i7-6500U Dual-Core processor, allowing you to run multiple applications simultaneously. If you need more power, the processor can achieve speeds of up to 3.1 GHz, and the system's 8GB of 1600 MHz DDR3L RAM allows the computer to quickly access frequently-used files and programs. The current memory configuration is 1 x 8GB 204-pin SO-DIMM module, with one empty socket available, allowing for a total of 16GB (2 x 8GB) of RAM.

The 15.6" IPS display features a screen resolution of 1920 x 1080, an anti-glare coating, LED-backlighting, a brightness of 250 cd/m2, and a 16:9 aspect ratio. The dedicated AMD Radeon R7 M370 has 2GB of GDDR5 video memory and renders 3D visuals with ease. You'll also be able to output video to an external display via the built-in HDMI and VGA ports. For connecting to the Internet, a Gigabit Ethernet port and 802.11ac Wi-Fi are included. For connecting external peripherals such as storage drives, this may be accomplished using the three USB 3.0 ports, one of which is always powered for device charging. Additional compatible peripherals may be paired using Bluetooth 4.0 technology.

For long-term storage of your files, the 500 GB 7200 rpm hard drive provides ample space to store your files. The 2.5" hard drive is also removable, allowing it to be upgraded. Whether you are listening to music, watching a movie, or playing a game, the integrated stereo speakers with Dolby Advanced Audio are powered by the Conexant CX11852 codec and offer high quality sound. To engage in face-to-face conversations, an integrated 720p webcam and a dual array microphone are onboard. Furthermore, a SuperMulti DVD burner is built-in for reading and writing data stored on optical media, and there's even a 4-in-1 card reader for interfacing with MMC, SD, SDHC, and SDXC memory cards.

The Lenovo 15.6" ThinkPad E560 Notebook includes a 6-cell / 48Wh battery that provides up to 9 hours of operation per charge, as well an AC adapter. The installed operating system is Windows 7 Professional (64-bit) and a license and media for Windows 10 Pro (64-bit) are also included.
If you own a Lenovo notebooks and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Lenovo 15.6" ThinkPad E560 Notebook 20EV002JUS in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Lenovo 15.6" ThinkPad E560 Notebook 20EV002JUS:
Specifications
Performance
Processor Intel Core i7-6500U Dual-Core
Base Clock Speed 2.5 GHz
Max Boost Speed 3.1 GHz
L3 Cache 4 MB
Memory Slots 2 x SO-DIMM 204-Pin
Memory Installed: 8 GB
Capacity: 16 GB
Memory Type 1 x 8 GB PC3-12800 1600 MHz DDR3L SDRAM
Graphics Type Dedicated
Graphics Card AMD Radeon R7 M370 with 2 GB GDDR5 VRAM
Display
Panel Type IPS
Size 15.6"
Aspect Ratio 16:9
Native Resolution 1920 x 1080
Finish Matte
Brightness 250 cd/m2
Drives
Storage Capacity 500 GB
Storage Drive 1 x 500 GB 7,200 rpm HDD; SATA
Optical Drive SuperMulti DVD Burner
Input/Output Connectors
Ports 3 x USB 3.0 Type-A
Display 1 x HDMI
1 x VGA
Audio 2 x Integrated Speaker
2 x Integrated Microphone
1 x 1/8" (3.5 mm) Headphone/Microphone Combo Jack
Media Card Reader 4-in-1
Media Card Slots SD/SDHC/SDXC
MMC
Communications
Network 1 x 10/100/1000 Mbps Gigabit Ethernet (RJ-45)
Wi-Fi 802.11ac; Dual-Band
Bluetooth Bluetooth 4.0
NFC None
Webcam Yes
720p Video
General
Operating System Windows 7 Professional (64-bit)
Security HDD User Password Protection, Power-On Password, Kensington Lock Slot, Accepts 3rd Party Security Lock Devices, Infineon TPM Software Professional Package, Fingerprint Reader
Keyboard Type: Standard Notebook Keyboard
Features: Numeric Keypad
Pointing Device TouchPad & TrackPoint
Battery 6-Cell Lithium-Ion  Providing up to 9 Hours per Charge (48 Wh)
Power Supply 65 W
Dimensions (WxHxD) 14.8 x 1.1 x 10.0" / 37.6 x 2.8 x 25.4 cm
Weight 5.39 lb / 2.44 kg
Packaging Info
Package Weight 7.4 lb
Box Dimensions (LxWxH) 19.5 x 13.0 x 3.5"
The user manual for the Lenovo 15.6" ThinkPad E560 Notebook 20EV002JUS can be downloaded in .pdf format if it did not come with your new notebooks, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Lenovo users keep a unique electronic library for Lenovo notebookss, where you can use our link to download the user manual for the Lenovo 15.6" ThinkPad E560 Notebook 20EV002JUS.

The user manual lists all of the functions of the Lenovo 15.6" ThinkPad E560 Notebook 20EV002JUS, all the basic and advanced features and tells you how to use the notebooks. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Lenovo service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Lenovo 15.6" ThinkPad E560 Notebook 20EV002JUS. User manuals are also available on the Lenovo website under Computers & Solutions - Laptops - Notebooks.
