User manual Lenovo 15.6" ThinkPad P50 Mobile Workstation 20EN001EUS

Operating instructions and pdf manual for use - Lenovo 15.6" ThinkPad P50 Mobile Workstation 20EN001EUS User manual, User manual Lenovo 15.6" ThinkPad P50 Mobile Workstation 20EN001EUS, Lenovo, 15.6, ThinkPad, P50, Mobile, Workstation, 20EN001EUS,


User manual for Lenovo 15.6" ThinkPad P50 Mobile Workstation 20EN001EUS

Lenovo 15.6
  • Manufacturer: Lenovo
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Laptops - Mobile Workstations
  • Safety instructions
  • Startup and operation of the mobile workstations
  • Tips for setting up your Lenovo
  • Settings and expert assistance
  • Contact Lenovo service
  • Troubleshooting
  • Warranty information
Lenovo 15.6 Lenovo 15.6 Lenovo 15.6

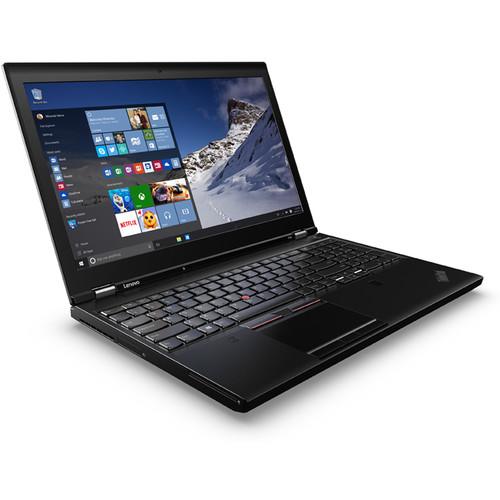

Click to enlarge image

We recommend checking out our discussion threads on the Lenovo 15.6" ThinkPad P50 Mobile Workstation 20EN001EUS, which address similar problems with connecting and setting up Mobile Workstations Lenovo.



User manual for the Lenovo 15.6" ThinkPad P50 Mobile Workstation 20EN001EUS

The user manual for the Lenovo 15.6" ThinkPad P50 Mobile Workstation 20EN001EUS provides necessary instructions for the proper use of the product Computers & Solutions - Laptops - Mobile Workstations.

The Lenovo 15.6" ThinkPad P50 Mobile Workstation is a notebook that is suited for CAD and design workflows while you are on the road. It comes packed with an Intel Core i7-6820HQ processor along with a dedicated NVIDIA Quadro M2000M graphics card, which outputs 3840 x 2160 visuals to the 15.6" screen. To handle multiple applications at the same time, 16GB of DDR4 RAM is installed. There's also a 256GB SATA-based SSD that enables the notebook to boot up nearly instantaneously and provides quick access to your data.

The 15.6" display is equipped an IPS panel that offers a 178° viewing angle as well as accurate colors. Lenovo has designed this screen with a brightness level of 300 cd/m2, a 1000:1 contrast ratio, and a color gamut of 100%. Moreover, an X-Rite color calibration sensor is built into the palm rest to ensure the colors stay true. You can also expand the on-screen workspace by connecting your external monitors to the notebook's HDMI and mini DisplayPort.

The P50 lets you access networks wired or wirelessly with a Gigabit Ethernet port along with an 802.11ac Wi-Fi module. Bluetooth 4.1 technology is also supported in the module that lets the workstation wirelessly connect to Bluetooth-enabled devices. Four USB 3.0 ports are offered to connect with printers, digital cameras, and other devices. Additionally, one of these USB ports allows you to charge a USB battery-powered smartphone or tablet. For a faster connection, Thunderbolt 3 technology is included so you can access high-resolution displays and data devices simultaneously through a compact and reversible Type-C port.

Windows 7 Professional (64-bit) is preinstalled on the drive and provided via Microsoft's downgrade rights, which includes a license for Windows 10 Professional. You may uninstall the current operating system to install Windows 10 Pro. For security, an integrated touch-style fingerprint reader is located on the palm rest so you can gain access to the system without typing passwords. Other notable features include an Expresscard 34 slot, a 4-in-1 card reader, a dual-array microphone, a combo audio jack, a 720p webcam, and two speakers.
If you own a Lenovo mobile workstations and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Lenovo 15.6" ThinkPad P50 Mobile Workstation 20EN001EUS in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Lenovo 15.6" ThinkPad P50 Mobile Workstation 20EN001EUS:
Specifications
Performance
Processor Intel Core i7-6820HQ Quad-Core
Base Clock Speed 2.7 GHz
Max Boost Speed 3.6 GHz
L3 Cache 8 MB
Memory Slots 4 x SO-DIMM
Memory Installed: 16 GB
Capacity: 64 GB
Memory Type 1 x 16 GB 2133 MHz DDR4 SDRAM
Graphics Type Dedicated
Graphics Card NVIDIA Quadro M2000M with 4 GB
Display
Panel Type IPS
Size 15.6"
Aspect Ratio 16:9
Native Resolution 3840 x 2160
Brightness 300 cd/m2
Viewing Angle 178° Horizontal, 178° Vertical
Drives
Storage Drive 1 x 256 GB SSD; SATA
Optical Drive None
Input/Output Connectors
Ports 4 x USB 3.0 Type-A
1 x Thunderbolt 3 Type-C
1 x Docking Connector
Display 1 x HDMI
1 x Mini DisplayPort
Audio 1 x 1/8" (3.5 mm) Headphone/Microphone Combo Jack
2 x Integrated Speaker
Integrated Microphone
Expansion Slots 1 x ExpressCard/34 Slot
Media Card Reader 4-in-1
Media Card Slots SD/SDHC/SDXC
MMC
Communications
Network 1 x 10/100/1000 Mbps Gigabit Ethernet (RJ-45)
Wi-Fi 802.11ac; Dual-Band
Bluetooth Bluetooth 4.1
Webcam Yes
720p Video
General
Operating System Windows 7 Professional (64-bit)
Security HDD User Password Protection, Power-On Password, Kensington Lock Slot, Infineon TPM Software Professional Package, Fingerprint Reader
Keyboard Type: Standard Notebook Keyboard
Features: Backlight, Numeric Keypad
Pointing Device TouchPad & TrackPoint
Battery 6-Cell Lithium-Polymer  Providing up to 9.7 Hours per Charge
Power Supply 170 W
Dimensions (WxHxD) 14.9 x 1.2 x 9.9" / 37.8 x 3.0 x 25.1 cm
Weight 5.9 lb / 2.68 kg
Packaging Info
Package Weight 8.8 lb
Box Dimensions (LxWxH) 19.3 x 13.3 x 3.6"
The user manual for the Lenovo 15.6" ThinkPad P50 Mobile Workstation 20EN001EUS can be downloaded in .pdf format if it did not come with your new mobile workstations, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Lenovo users keep a unique electronic library for Lenovo mobile workstationss, where you can use our link to download the user manual for the Lenovo 15.6" ThinkPad P50 Mobile Workstation 20EN001EUS.

The user manual lists all of the functions of the Lenovo 15.6" ThinkPad P50 Mobile Workstation 20EN001EUS, all the basic and advanced features and tells you how to use the mobile workstations. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Lenovo service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Lenovo 15.6" ThinkPad P50 Mobile Workstation 20EN001EUS. User manuals are also available on the Lenovo website under Computers & Solutions - Laptops - Mobile Workstations.
