User manual for the Lenovo ThinkCentre Tiny-in-One 23" 16:9 LCD 10DQPAR6US

The user manual for the Lenovo ThinkCentre Tiny-in-One 23" 16:9 LCD 10DQPAR6US provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

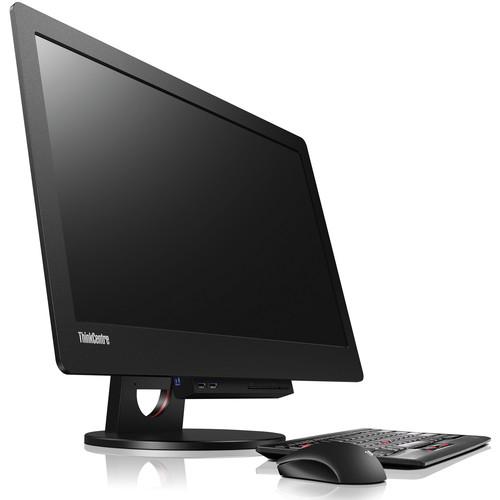

The ThinkCentre Tiny-in-One 23" 16:9 LCD Monitor from Lenovo is designed to house a Lenovo Tiny series computer system in the back to provide an All-in-One experience with a simple setup. This monitor connects to your Tiny system via a 3-in-1 adapter that features DisplayPort, power, and USB interfaces. In addition to holding a Tiny system, it offers space to support an optional Lenovo optical drive. There's also an integrated USB hub that provides two USB 3.0 and two USB 2.0 ports.

Once connected, this 23" display supports a resolution of up to 1920 x 1080. Lenovo has equipped it with a TN panel that delivers 170°/160° viewing angles and 16.7 million colors. Its maximum brightness level is 250 cd/m². Other notable features included with this monitor are an adjustable stand as well as a Kensington Lock slot, which secures the display, Tiny system, and optical drive.
If you own a Lenovo computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Lenovo ThinkCentre Tiny-in-One 23" 16:9 LCD 10DQPAR6US in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Lenovo ThinkCentre Tiny-in-One 23Download user manual for Lenovo ThinkCentre Tiny-in-One 23" 16:9 LCD 10DQPAR6US
(PDF file, 2.35 MB)
Additional parameters of the Lenovo ThinkCentre Tiny-in-One 23" 16:9 LCD 10DQPAR6US:
Display Type All-in-one
Monitor Type TN
Screen Size 23" / 58.4 cm
Viewable Image Size 20.0 x 11.3" / 509.2 x 286.4 mm
Brightness 250 cd/m²
Contrast Ratio 1,000:1
Colors Supported 16.7 million
Resolution 1920 x 1080 (maximum, native, & recommended)
Power Supply Type External
Pixel Pitch 0.265 mm
Refresh Rate 5 ms
Backlight Technology WLED
USB Ports 2 x USB 3.0 (front)
2 x USB 2.0 (side)
Audio Ports 1 x Headphone/microphone combo jack
Height Adjustment 4.3" / 110 mm
Swivel 45° / 45°
Tilt -5° / 35°
Viewing Angle Vertical: 160°
Horizontal: 170°
VESA Compatibility 100 mm
Certifications EPEAT Gold,Turkey RoHS,EU RoHS,China RoHS
Approvals and Certifications CCC (China),CE (Europe),CECP,WEEE,RoHS (China),RoHS (Turkey),CU(Russia),RoHS EU,RoHS Ukraine,BSMI (Taiwan),FCC Class B (USA),VCCI(Japan),C-TICK (Australia/New Zealand),JEITA (Japan),CSA (Canada),KC (Korea),EPEAT Gold,IC (Canada),TUV-GS,CU(Belarus),CUL,IEC EN60950 CB Report
Power Universal Power Adapter: 90 W AC/DC, 88% PSU
Consumption: 22 W (typical), 45 W (max), < 0.5 W (standby/suspend)
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 8 to 80%
Dimensions 20.48 x 22.17 x 1.97" / 52.02 x 56.31 x 5.00 cm
Weight 15.43 lb / 7.00 kg
Packaging Info
Package Weight 20.75 lb
Box Dimensions (LxWxH) 25.0 x 18.4 x 8.1"
The user manual for the Lenovo ThinkCentre Tiny-in-One 23" 16:9 LCD 10DQPAR6US can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Lenovo users keep a unique electronic library for Lenovo computer monitorss, where you can use our link to download the user manual for the Lenovo ThinkCentre Tiny-in-One 23" 16:9 LCD 10DQPAR6US.

The user manual lists all of the functions of the Lenovo ThinkCentre Tiny-in-One 23" 16:9 LCD 10DQPAR6US, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Lenovo service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Lenovo ThinkCentre Tiny-in-One 23" 16:9 LCD 10DQPAR6US. User manuals are also available on the Lenovo website under Computers & Solutions - Monitors & Displays - Computer Monitors.
