We recommend checking out our discussion threads on the Lenovo ThinkPad X250 20CM0046US 12.5" Ultrabook 20CM0046US,
which address similar problems with connecting and setting up Ultrabooks Lenovo.
|
User manual for the Lenovo ThinkPad X250 20CM0046US 12.5" Ultrabook 20CM0046US
The user manual for the Lenovo ThinkPad X250 20CM0046US 12.5" Ultrabook 20CM0046US provides
necessary instructions for the proper use of the product Computers & Solutions - Laptops - Ultrabooks.

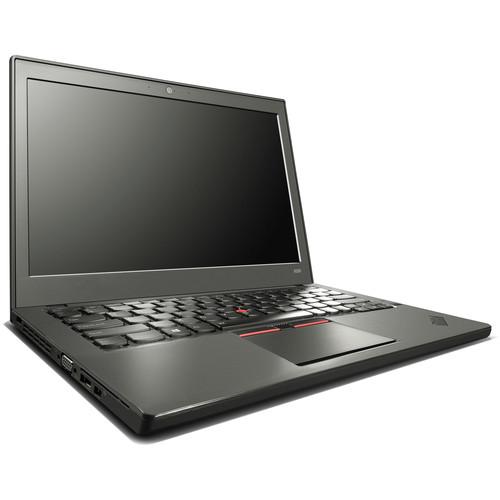

Slim and portable at 0.8" thin, the ThinkPad X250 20CM0046US 12.5" Ultrabook Computer from Lenovo comes equipped with a 3-button trackpad and dual batteries, while not sacrificing ports or connectivity options. The system is powered by a 2.3 GHz Intel Core i5-5300U Dual-Core processor that allows you to run multiple applications simultaneously. If you need more power, the processor can be overclocked to 2.9 GHz and the system's 8GB of 1600 MHz PC3-12800 DDR3 RAM allows the computer to quickly access frequently-used files and programs. The RAM comes in a configuration of one 8GB chip that is installed in a 204-pin SO-DIMM socket that can support memory amounts up to 8GB. As this system only has one socket, 8GB is the maximum amount that it can support.
The 12.5" LED-backlit anti-glare IPS display features an HD 1366 x 768 native resolution, a 16:9 aspect ratio, 300 cd/m2 brightness, and a 700:1 contrast ratio. The integrated Intel HD Graphics 5500 delivers a sharp, clear picture and you'll also be able to output video to an external display using the built-in Mini DisplayPort and VGA ports. For connecting to the Internet, a Gigabit Ethernet port and 802.11ac Wi-Fi are included. For connecting external peripherals such as storage or optical drives, this may be accomplished using the two USB 3.0 ports. One of the USB 3.0 ports is also powered for always-on device charging. Additional compatible peripherals may be paired using Bluetooth 4.0 technology.
For long-term storage of your files, the ThinkPad X250 features a 180GB Opal 2.0 SSD. While this SSD may not have the larger capacity of a traditional hard drive, it features no moving parts and is more resistant to damage from bumps and drops. Having no moving parts also allows the SSD to operate with faster data transfer speeds. Additionally, since SSDs have no moving parts, they receive less wear and tear, since there are no read and write heads for the drive media to come into contact with.
Whether you are listening to music, watching a movie, or playing a game, the dual integrated 1.5W stereo speakers with Dolby sound use the Realtek ALC3232 HD audio codec and offer high quality sound. There is also an integrated 720p webcam which allows you to engage in face-to-face conversations using Skype or other software, dual digital-array microphones, and a 4-in-1 media card reader that supports Secure Digital and MMC cards.
The Lenovo ThinkPad X250 20CM0046US includes two batteries - a 3-cell/23Wh internal battery and a 3-cell/23Wh external lithium-ion battery which will last for up to 10.7 hours before recharging is required. The system runs using an included 45W AC adapter and while the installed operating system is Windows 7 Professional (64-bit), a Windows 8.1 (64-bit) license is included at no additional cost.
|
If you own a Lenovo ultrabooks and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Lenovo ThinkPad X250 20CM0046US 12.5" Ultrabook 20CM0046US in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Lenovo ThinkPad X250 20CM0046US 12.5" Ultrabook 20CM0046US:
| Processor | 2.3 GHz Intel Core i5-5300U Dual-Core | | Cache | L3: 3 MB | | System Bus | 5 GT/s | | Memory | Slots: 1x SO-DIMM 204-Pin
Type: PC3-12800 1600 MHz DDR3L SDRAM
Installed: 8 GB (1x8 GB SO-DIMM 204-Pin)
Capacity: 8 GB | | Graphics Card | Type: Integrated
Installed: Intel HD Graphics 5500 | | Type | Widescreen | | Size | 12.5" | | Backlight | LED | | Aspect Ratio | 16:9 | | Finish | Antiglare | | Native Resolution | 1366 x 768 | | Brightness | 300cd/m2 | | External Resolution | Up to 3840 x 2160 | | Hard Drive | Installed: 180 GB SSD
Type: SATA | | Optical Drive | None | | Ports | 2x USB 3.0 (A) (1x Always-on charging port)
1x Docking Connector | | Display | 1x Mini DisplayPort
1x VGA | | Audio | Integrated Stereo Speakers
Dual Array Microphones
1/8" (3.5 mm) Headphone/Microphone Combo Jack | | Flash Media Slot | 1x SD
1x SDHC
x SDXC
1x MMC | | Network | 1x 10/100/1000 Mbps Gigabit Ethernet (RJ-45) | | Wi-Fi | 802.11ac | | Bluetooth | Bluetooth 4.0 | | Webcam | Yes
720p Video | | Operating System | Windows 7 Professional (64-bit) | | Security | HDD User Password Protection, Power-On Password, Infineon TPM Software Professional Package, Fingerprint Reader | | Keyboard | Type: Standard Notebook Keyboard
Features: Backlight | | Pointing Device | TrackPoint with Multi-Touch Control | | Battery | 3-Cell Built-In (23 Wh)
3-Cell External Lithium-Ion (23 Wh) | | Dimensions (WxHxD) | 12.0 x 0.8 x 8.2" / 30.5 x 2.0 x 20.8 cm | | Weight | 3.13 lb / 1.42 kg | | Package Weight | 5.15 lb | | Box Dimensions (LxWxH) | 16.0 x 12.1 x 3.7" | |
The user manual for the Lenovo ThinkPad X250 20CM0046US 12.5" Ultrabook 20CM0046US can be downloaded in .pdf
format if it did not come with your new ultrabooks, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Lenovo users keep a unique electronic library
for Lenovo ultrabookss,
where you can use our link to download the user manual for the Lenovo ThinkPad X250 20CM0046US 12.5" Ultrabook 20CM0046US.
The user manual lists all of the functions of the Lenovo ThinkPad X250 20CM0046US 12.5" Ultrabook 20CM0046US,
all the basic and advanced features and tells you how to use the ultrabooks.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Lenovo service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Lenovo ThinkPad X250 20CM0046US 12.5" Ultrabook 20CM0046US. User manuals are also
available on the Lenovo website under Computers & Solutions - Laptops - Ultrabooks.
