User manual for the Leupold 6-18x40 VX-2 Adjustable Objective Riflescope 120615
The user manual for the Leupold 6-18x40 VX-2 Adjustable Objective Riflescope 120615 provides
necessary instructions for the proper use of the product Optics - Riflescopes & Sights - Riflescopes.

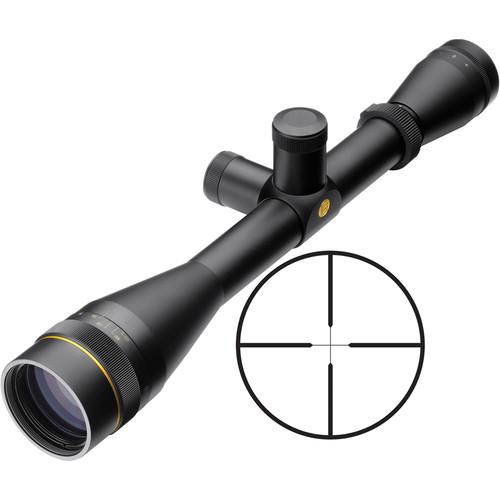

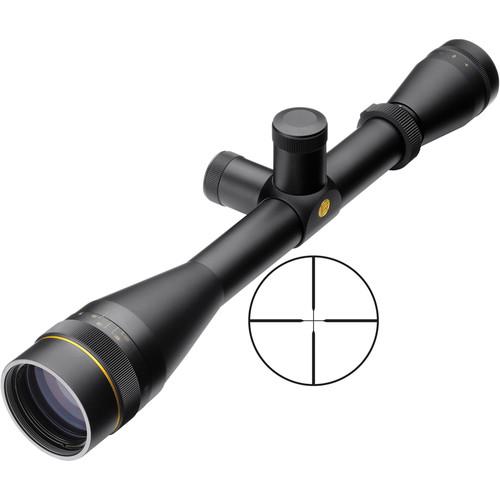

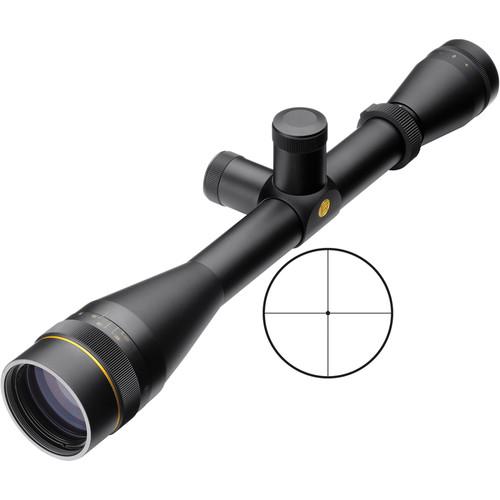

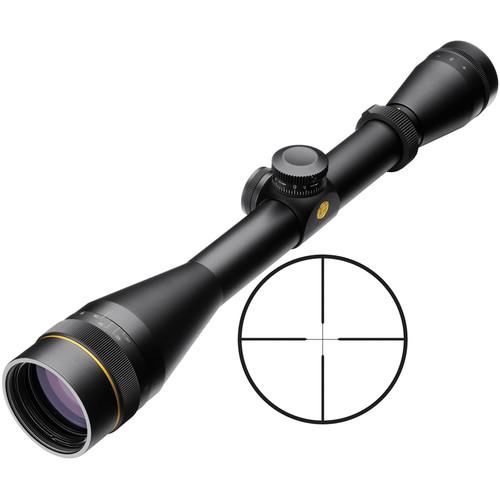

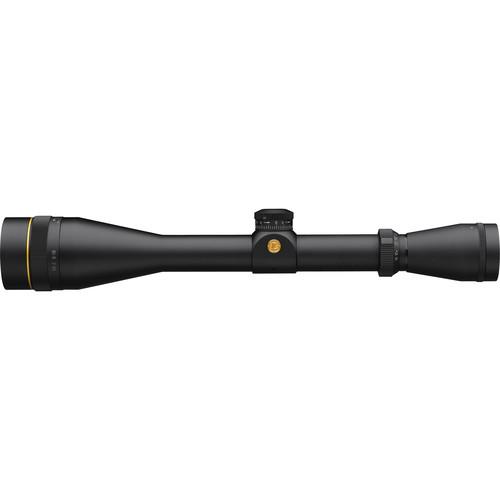

Decorated with a 24k gold-plated ring and a medallion, the matte black 6-18x40 VX-2 Adjustable Objective Riflescope from Leupold is designed for medium to long-range shooting and features Wind-Plex reticle. The optical system offers index-matched multiple anti-glare coatings that reduce reflections and maximize light transmission. In order to improve contrast and reduce stray light, the environmentally friendly lead-free optical elements have their edges blackened. The DiamondCoat protective coatings on external elements protect lenses from scratches and further improve transmission to 94%. To help you compensate for wind drift and ballistic bullet drop, the scope offers a 67 MOA windage and elevation adjustment range with a 1/4 MOA impact point correction.
Located in the second focal plane, the Wind-Plex reticle provides a total range of 20 MOA from side to side for wind drift compensation. The minor horizontal hash marks on the center crosshair are separated by 1 MOA. Because of its location in the second focal plane, the reticle will remain the same in size as you change zoom factor.
The 6061-T6 aluminum housing is lightweight and durable, waterproof, fogproof, and features a twin bias spring erector system that increases holding force by 30%. To prevent fogging-up of optics when you are moving through environments with changing temperatures, the housing is filled with a mixture of krypton and argon gases. Moreover, this riflescope is equipped with a Custom Dial System (CDS) which allows quickly switching elevation to your sight-in ranges. Also included with the riflescope are protective lens covers.
If you own a Leupold riflescopes and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Leupold 6-18x40 VX-2 Adjustable Objective Riflescope 120615 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Leupold 6-18x40 VX-2 Adjustable Objective Riflescope 120615:
Specifications
Reticle
Wind-Plex Second focal plane
Magnification
6.4-17.2x
Objective Lens Diameter
40mm
Main-Tube Diameter
1" (25 mm)
Field of View
15.2 - 6.7' @ 100 yd / 5.1 - 2.2 m @ 100 m
Parallax Correction
150 yd
Eye Relief
4.8 - 3.7" / 122 - 94 mm
Exit Pupil Diameter
6.25 mm - 2.3 mm
Impact Point Correction
1/4 MOA per click
Maximum Windage/Elevation Adjustment
67 MOA
Weatherproofing
Waterproof and Fogproof
Finish
Matte Black
Length
13.5" / 343 mm
Weight
14.5 oz / 411 g
The user manual for the Leupold 6-18x40 VX-2 Adjustable Objective Riflescope 120615 can be downloaded in .pdf
format if it did not come with your new riflescopes, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Leupold users keep a unique electronic library
for Leupold riflescopess,
where you can use our link to download the user manual for the Leupold 6-18x40 VX-2 Adjustable Objective Riflescope 120615.
The user manual lists all of the functions of the Leupold 6-18x40 VX-2 Adjustable Objective Riflescope 120615,
all the basic and advanced features and tells you how to use the riflescopes.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Leupold service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Leupold 6-18x40 VX-2 Adjustable Objective Riflescope 120615. User manuals are also
available on the Leupold website under Optics - Riflescopes & Sights - Riflescopes.
