User manual Leupold Mark AR MOD 1 1.5-4x20 Riflescope (Duplex Reticle)

Operating instructions and pdf manual for use - Leupold Mark AR MOD 1 1.5-4x20 Riflescope (Duplex Reticle) User manual, User manual Leupold Mark AR MOD 1 1.5-4x20 Riflescope (Duplex Reticle), Leupold, Mark, AR, MOD, 1, 1.5-4x20, Riflescope, Duplex,


User manual for Leupold Mark AR MOD 1 1.5-4x20 Riflescope (Duplex Reticle)

Leupold Mark AR MOD 1 1.5-4x20 Riflescope (Duplex Reticle)
  • Manufacturer: Leupold
  • Basic description and contents of package
  • Product classification: Optics - Riflescopes & Sights - Riflescopes
  • Safety instructions
  • Startup and operation of the riflescopes
  • Tips for setting up your Leupold
  • Settings and expert assistance
  • Contact Leupold service
  • Troubleshooting
  • Warranty information

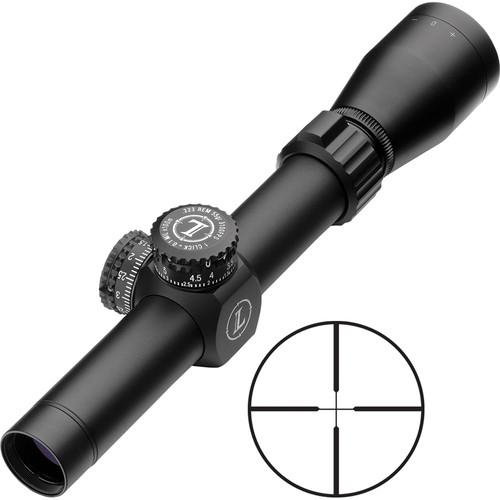

Leupold Mark AR MOD 1 1.5-4x20 Riflescope (Duplex Reticle) Leupold Mark AR MOD 1 1.5-4x20 Riflescope (Duplex Reticle)
Click to enlarge image

We recommend checking out our discussion threads on the Leupold Mark AR MOD 1 1.5-4x20 Riflescope (Duplex Reticle), which address similar problems with connecting and setting up Riflescopes Leupold.



User manual for the Leupold Mark AR MOD 1 1.5-4x20 Riflescope (Duplex Reticle)

The user manual for the Leupold Mark AR MOD 1 1.5-4x20 Riflescope (Duplex Reticle) provides necessary instructions for the proper use of the product Optics - Riflescopes & Sights - Riflescopes.

With exposed tactical P5 elevation turrets that are optimized for .223 Remington, the matte black Mark AR MOD 1 1.5-4x20 Riflescope from Leupold is designed for short-to-medium-range shooting and features a Duplex Reticle. The optical system offers 1.5-3.9x actual magnification, Mulitcoat 4 anti-glare coatings that reduce glare and enhance transmission, and a linear field of view range of 73-29.3' at 100 yd. To help you compensate for wind drift and ballistic bullet drop, the scope offers a 125 MOA windage and elevation adjustment range with a 1/10 mil impact point correction.

The Duplex Reticle is defined by heavy posts and a thin crosshair that are visible well on any background or in twilight. Because of its location in the second focal plane, the reticle will remain the same in size as you change zoom factor.

The aluminum housing is lightweight and durable, waterproof, and argon-krypton-filled fogproof. It is compatible with 1" riflescope mounting rings and has a lockable fast focus eyepiece with a low profile tactile zoom lever that helps you with an instant one-finger zoom adjustment.
If you own a Leupold riflescopes and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Leupold Mark AR MOD 1 1.5-4x20 Riflescope (Duplex Reticle) in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Leupold Mark AR MOD 1 1.5-4x20 Riflescope (Duplex Reticle):
Magnification 1.5-3.9x
Objective Lens Diameter 20mm
Main-Tube Diameter 1" (25.4 mm)
Reticle Duplex
2nd focal plane
Field of View 73-29.3' @ 100 yd (24.3-9.8 m @ 100 m)
Parallax Correction 150 yd
Eye Relief 4.1-3.7" (104-94 mm)
Exit Pupil Diameter 13.3-5.1 mm
Impact Point Correction 1/10 mil
Maximum Windage/Elevation Adjustment 125 MOA
Weatherproofing Waterproof and fogproof
Length Not specified by manufacturer
Weight 9.6 oz (272 g)
Packaging Info
Package Weight 1.1 lb
Box Dimensions (LxWxH) 14.1 x 3.4 x 3.0"
The user manual for the Leupold Mark AR MOD 1 1.5-4x20 Riflescope (Duplex Reticle) can be downloaded in .pdf format if it did not come with your new riflescopes, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Leupold users keep a unique electronic library for Leupold riflescopess, where you can use our link to download the user manual for the Leupold Mark AR MOD 1 1.5-4x20 Riflescope (Duplex Reticle).

The user manual lists all of the functions of the Leupold Mark AR MOD 1 1.5-4x20 Riflescope (Duplex Reticle), all the basic and advanced features and tells you how to use the riflescopes. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Leupold service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Leupold Mark AR MOD 1 1.5-4x20 Riflescope (Duplex Reticle). User manuals are also available on the Leupold website under Optics - Riflescopes & Sights - Riflescopes.
