User manual Lexicon I-O 82 - USB 2.0 Desktop Recording Studio IO82

Operating instructions and pdf manual for use - Lexicon I-O 82 - USB 2.0 Desktop Recording Studio IO82 User manual, User manual Lexicon I-O 82 - USB 2.0 Desktop Recording Studio IO82, Lexicon, I-O, 82, USB, 2.0, Desktop, Recording, Studio, IO82,


User manual for Lexicon I-O 82 - USB 2.0 Desktop Recording Studio IO82

Lexicon I-O 82 - USB 2.0 Desktop Recording Studio IO82
  • Manufacturer: Lexicon
  • Basic description and contents of package
  • Product classification: Pro Audio - Computer Audio - Audio Interfaces & Systems
  • Safety instructions
  • Startup and operation of the audio interfaces & systems
  • Tips for setting up your Lexicon
  • Settings and expert assistance
  • Contact Lexicon service
  • Troubleshooting
  • Warranty information
  • Price: 500 USD
We recommend checking out our discussion threads on the Lexicon I-O 82 - USB 2.0 Desktop Recording Studio IO82, which address similar problems with connecting and setting up Audio Interfaces & Systems Lexicon.



User manual for the Lexicon I-O 82 - USB 2.0 Desktop Recording Studio IO82

The user manual for the Lexicon I-O 82 - USB 2.0 Desktop Recording Studio IO82 provides necessary instructions for the proper use of the product Pro Audio - Computer Audio - Audio Interfaces & Systems.

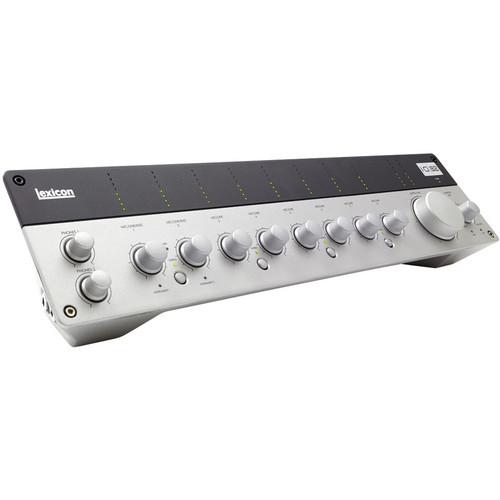

The I-O 82 from Lexicon is an 8 input, 2 output USB 2.0 desktop recording studio, compatible with any DAW including Pro Tools 9. It includes an interface and all the necessary software needed to start recording. Performance driven analog-to-digital and digital-to-analog converters ensure pristine 24-bit/96kHz audio to capture every subtle detail of your performance.

The interface features dbx 60V high-voltage, ultra-low noise microphone preamps on all eight channels. The preamps run on a high-voltage supply to guarantee stability and provide you with a superior recording across a wide dynamic range.

The I-O 82 can record eight tracks at once and includes eight combi microphone/line inputs with switchable 48V phantom power, two balanced line outputs, two Hi-Z instrument inputs, two 1/4" high power headphone outputs, coaxial S/PDIF and MIDI I/O. Dedicated knobs and meters offer easy access to input and output levels.
If you own a Lexicon audio interfaces & systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Lexicon I-O 82 - USB 2.0 Desktop Recording Studio IO82 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for Lexicon I-O 82 - USB 2.0 Desktop Recording Studio IO82Download user manual for Lexicon I-O 82 - USB 2.0 Desktop Recording Studio IO82
(PDF file, 3.02 MB)
Additional parameters of the Lexicon I-O 82 - USB 2.0 Desktop Recording Studio IO82:
Specifications
    Mic Preamps 8
    Converters 24-bit
    Sample Rates 44.1, 48, 88.4 and 96kHz
    Inputs 8 x Combo XLR female
    2 x 1/4" TS phone Instrument
    1 x RCA coaxial S/PDIF
    Input Impedance Microphone: 3kΩ balanced
    Line: 20kΩ balanced, 13kΩ unbalanced
    Instrument: 1MΩ
    Maximum Input Level Microphone: +20dBu @ minimum input gain
    Line: +32dBu
    Instrument: +13dBu
    Gain Microphone: +58dB
    Outputs 2 x 1/4" TRS phone
    2 x 1/4" TRS phone Headphone
    1 x RCA coaxial S/PDIF
    Output Impedance 32Ω balanced, 16Ω unbalanced
    Maximum Output Level Line: +18dBu
    Headphone: 350mW/channel @ 50Ω
    MIDI 2 x 5-pin DIN I/O
    Dynamic Range A/D (24-bit): 102dB typical, A-weighted, 20Hz to 20kHz (44.1kHz sample rate)
    D/A (24-bit): 106dB typical, A-weighted, 20Hz to 20kHz
    A/D/A (24-bit): 101dB typical, A-weighted, 20Hz to 20kHz
    THD + N Microphone: <0.01% 20Hz to 20kHz, +4dBu input level, +4dBu output (mic input to main output), <0.008% 1kHz, +4 Bu input level, +4dBu output, (mic input to main output)
    Line Input: <0.015%, 20Hz to 20kHz, +4dBu (line input to main output)
    Instrument Input: <0.05%, 20Hz to 20kHz, +4dBu input level, +4dBu output, (instrument input to main output
    Noise Microphone EIN: -125dBu @ 58dB gain typical (150Ω source) -128dBu @ 58dB gain typical A-weighted (150Ω)
    Frequency Response Microphone: 20Hz to 20kHz, +/-1.0dB
    Line Input: 20Hz to 20kHz, +/-1.0dB
    Instrument Input: 20Hz to 20kHz, +/-1.0dB
    Phantom Power 48V
    Controls Phones Level
    Trim
    48V
    Stereo
    Output Level
    Monitor Mix
    Power 12 VDC external power supply (included)
    Compatibility ASIO, Core Audio, WDM, MME and multi-client drivers
    System Requirements Mac
    Intel multi-core system (required)
    OS X 10.4.9 or later
    1GB RAM
    USB 2.0 Port
    1024 x 768 pixels display resolution
    DVD-ROM drive
    Internet connection

    PC
    1.8GHz CPU or faster
    Windows XP SP2, Vista 32, Windows 7
    1GB RAM
    USB 2.0 Port
    DVD-ROM drive
    Internet connection
    Dimensions (WxDxH) 18 x 3.75 x 4" (457 x 95 x 102mm)
    Weight 3.7 lb (1.7kg)
    Packaging Info
    Package Weight 6.3 lb
    Box Dimensions (LxWxH) 19.0 x 6.7 x 6.4"
    The user manual for the Lexicon I-O 82 - USB 2.0 Desktop Recording Studio IO82 can be downloaded in .pdf format if it did not come with your new audio interfaces & systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Lexicon users keep a unique electronic library for Lexicon audio interfaces & systemss, where you can use our link to download the user manual for the Lexicon I-O 82 - USB 2.0 Desktop Recording Studio IO82.

    The user manual lists all of the functions of the Lexicon I-O 82 - USB 2.0 Desktop Recording Studio IO82, all the basic and advanced features and tells you how to use the audio interfaces & systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Lexicon service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Lexicon I-O 82 - USB 2.0 Desktop Recording Studio IO82. User manuals are also available on the Lexicon website under Pro Audio - Computer Audio - Audio Interfaces & Systems.
