User manual LG 34UM95-P 34" Widescreen LED Backlit UltraWide 34UM95-P

Operating instructions and pdf manual for use - LG 34UM95-P 34" Widescreen LED Backlit UltraWide 34UM95-P User manual, User manual LG 34UM95-P 34" Widescreen LED Backlit UltraWide 34UM95-P, LG, 34UM95-P, 34, Widescreen, LED, Backlit, UltraWide, 34U


User manual for LG 34UM95-P 34" Widescreen LED Backlit UltraWide 34UM95-P

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
LG 34UM95-P 34
  • Manufacturer: LG
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Monitors & Displays - Computer Monitors
  • Safety instructions
  • Startup and operation of the computer monitors
  • Tips for setting up your LG
  • Settings and expert assistance
  • Contact LG service
  • Troubleshooting
  • Warranty information

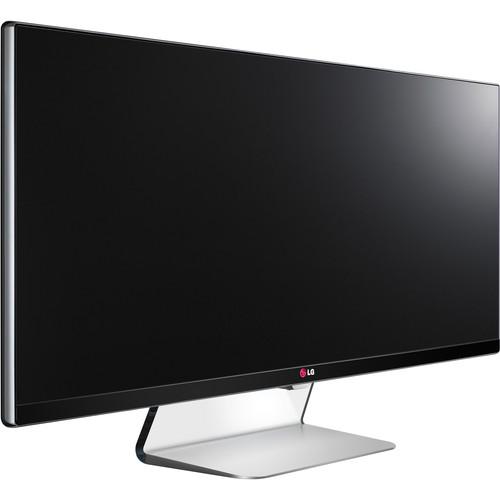

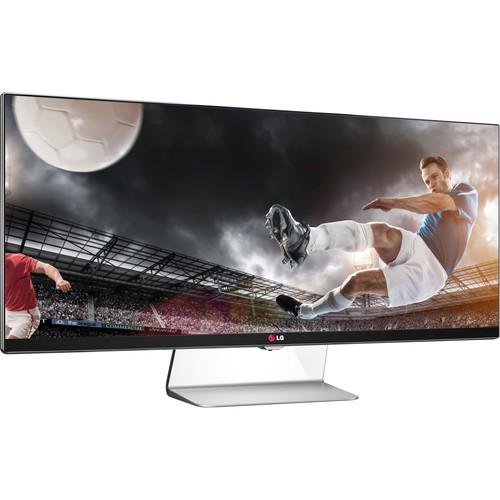

LG 34UM95-P 34 LG 34UM95-P 34
Click to enlarge image

We recommend checking out our discussion threads on the LG 34UM95-P 34" Widescreen LED Backlit UltraWide 34UM95-P, which address similar problems with connecting and setting up Computer Monitors LG.



User manual for the LG 34UM95-P 34" Widescreen LED Backlit UltraWide 34UM95-P

The user manual for the LG 34UM95-P 34" Widescreen LED Backlit UltraWide 34UM95-P provides necessary instructions for the proper use of the product Computers & Solutions - Monitors & Displays - Computer Monitors.

The 34UM95-P 34" Widescreen LED Backlit UltraWide IPS Monitor from LG features an UltraWide 21:9 aspect ratio allowing you to divide the display into either two or four separate sections eliminating the need to flip between documents. The enhanced aspect ratio is accompanied by an ultra high definition screen resolution of 3440 x 1440 at 60 Hz. The display also comes equipped with a 320 cd/m² brightness rating, and a 1,000:1 contrast ratio.

Setup and configuration of the 34UM95-P is simple as it comes equipped with two HDMI ports and one DisplayPort. You will also find two Thunderbolt ports on this monitor to daisy chain it to other compatible Thunderbolt devices. Once configured you can view this IPS display from nearly any angle as it supports 178° horizontal and vertical viewing angles.
If you own a LG computer monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the LG 34UM95-P 34" Widescreen LED Backlit UltraWide 34UM95-P in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for LG 34UM95-P 34Download user manual for LG 34UM95-P 34" Widescreen LED Backlit UltraWide 34UM95-P
(PDF file, 10.25 MB)
Additional parameters of the LG 34UM95-P 34" Widescreen LED Backlit UltraWide 34UM95-P:
Specifications
    Panel
    Display Size 34" / 86.36 cm Class
    33.7" / 85.6 cm (diagonally)
    Color Depth 10-bit
    Panel Type IPS
    Aspect Ratio 21:9
    Resolution 3440 x 1440
    Pixel Pitch 0.2325 mm x 0.2325 mm
    Color Gamut (CIE1931) 99%
    Brightness 320 cd/m² (typical)
    Contrast Ratio 1,000:1
    Viewing Angles 178°/178°
    Frequency Horizontal: 30 to 90 kHz
    Vertical: 56 to 61 Hz
    Separate synchronization
    Surface Treatment Anti-glare, 3H
    Inputs/Outputs
    Connections 2 x HDMI
    1 x DisplayPort
    2 x Thunderbolt
    1 x USB 3.0 uplink
    3 x USB 3.0 ports
    1 x Headphone
    Power
    Type Adapter
    Input 100 to 240 V
    Power Rating 19 V, 6.5 A
    Power Consumption 80 W (Typical, USB excluded) (Outgoing Condition)
    Sleep Mode ≤ 1.2 W
    Off Mode ≤ 0.5 W
    Off Mode ≤ 0.3 W (DC switch is off)
    Power Consumption Normal On (EPA 6.0): 56 W
    Other Specifications
    Speakers (Integrated) 2 x 7 W
    Tilt (Angle) Forward/Backward: -5 to 15° (Head)
    Environmental Operating: 32 to 104°F / 0 to 40°C humidity less than 80%
    Storage: -4 to 140°F / -20 to 60°C humidity less than 85%
    Standards UL(cUL), FCC-B, CE, EPA 6.0, Windows 8
    VESA Compatibility 100 x 100 mm
    Supported Operating Systems Win 7, Win 8.1
    New Mac Pro (Over Mac OS 10.9.1)
    Dimensions (WxHxD) With Stand: 32.6 x 18.4 x 6.8" / 82.8 x 46.7 x 17.3 cm
    Without Stand: 32.6 x 14.9 x 3.2" / 82.8 x 37.8 x 8.1 cm
    Weight With Stand: 17.0 lb / 7.7 kg
    Without Stand: 14.8 lb / 6.7 kg
    Packaging Info
    Package Weight 23.8 lb
    Box Dimensions (LxWxH) 35.5 x 20.25 x 7.0"
    The user manual for the LG 34UM95-P 34" Widescreen LED Backlit UltraWide 34UM95-P can be downloaded in .pdf format if it did not come with your new computer monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other LG users keep a unique electronic library for LG computer monitorss, where you can use our link to download the user manual for the LG 34UM95-P 34" Widescreen LED Backlit UltraWide 34UM95-P.

    The user manual lists all of the functions of the LG 34UM95-P 34" Widescreen LED Backlit UltraWide 34UM95-P, all the basic and advanced features and tells you how to use the computer monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from LG service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the LG 34UM95-P 34" Widescreen LED Backlit UltraWide 34UM95-P. User manuals are also available on the LG website under Computers & Solutions - Monitors & Displays - Computer Monitors.
