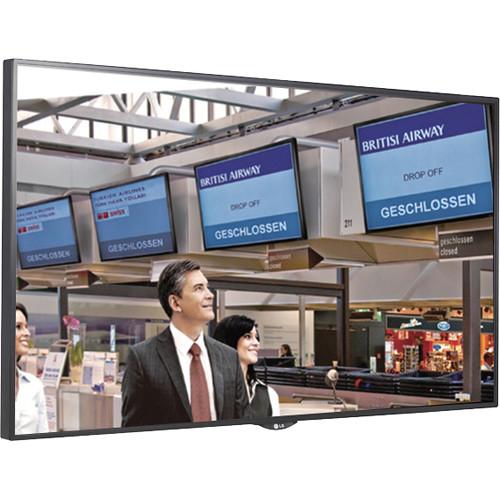

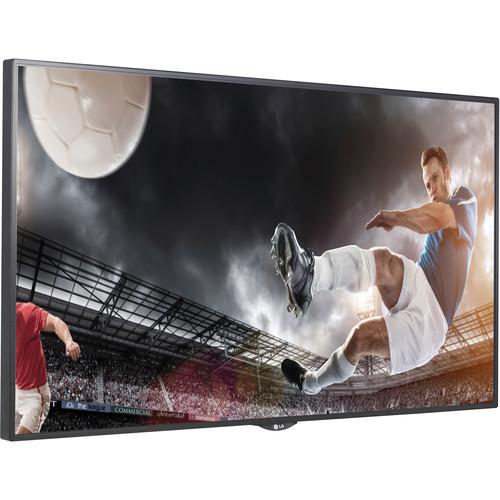

LG 49LS75A-5B 49 LG 49LS75A-5B 49 LG 49LS75A-5B 49
Click to enlarge image
We recommend checking out our discussion threads on the LG 49LS75A-5B 49"-Class Full HD Commercial IPS 49LS75A-5B, which address similar problems with connecting and setting up Commercial Monitors LG.


User manual for the LG 49LS75A-5B 49"-Class Full HD Commercial IPS 49LS75A-5B

The user manual for the LG 49LS75A-5B 49"-Class Full HD Commercial IPS 49LS75A-5B provides necessary instructions for the proper use of the product A/V Presentation - Commercial Monitors & Displays - Commercial Monitors.

The black LG 49LS75A-5B 49"-Class Full HD Commercial IPS Monitor can display 1080p digital signage content at wide 178° viewing angles. This model has a 49"-class IPS display and features a Full HD 1920 x 1080 native resolution for viewing detailed high-definition content. The featured 700 cd/m² brightness output and 1,300:1 contrast ratio showcases this monitor's ability to handle light and dark on-screen images. The 49LS75A-5B also offers the flexibility of supporting portrait and landscape viewing orientations.

This LG commercial monitor features an embedded media player for displaying digital signage content and features DVI, DisplayPort, and dual HDMI inputs for interfacing a variety of external devices. Left and right speaker outputs are available for connecting optional speakers. The LG 49LS75A-5B also features RS232C and LAN interfaces for integrating into control systems. Additionally, this monitor is 400 x 400 mm VESA compatible for wall mounting.
If you own a LG commercial monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the LG 49LS75A-5B 49"-Class Full HD Commercial IPS 49LS75A-5B in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the LG 49LS75A-5B 49"-Class Full HD Commercial IPS 49LS75A-5B:
Specifications
    Display
    Size 48.5" (123.2 cm)
    Display Type IPS LED LCD
    Aspect Ratio 16:9
    Native Resolution 1920 x 1080
    Pixels 6,220,800
    Brightness 700 cd/m²
    Contrast Ratio (Typical) 1,300:1
    Dynamic Contrast Ratio 500,000:1
    Color Gamut 72%
    Viewing Angle (H/V) 178 / 178°
    Color Depth 1.07 billion
    Response Time 8 ms (G-to-G BW)
    Surface Treatment Hard coating (3H), anti-glare treatment of the front polarizer (haze 10%)
    Orientation Landscape and Portrait
    ISM Method Normal, White wash
    Video (PC)
    Maximum Input Resolution 1,920 x 1,080 at 60 Hz (HDMI, DVI-D, Display Port, OPS)
    Recommended Resolution 1,920 x 1,080 at 60 Hz (HDMI, DVI-D, Display Port, OPS)
    Scanning Frequency Horizontal: 30 - 83 kHz (HDMI, DVI-D, Display Port, OPS) Vertical: 60 Hz (HDMI, DVI-D, Display Port, OPS)
    Pixel Frequency 148.5 MHz (HDMI, DVI-D, Display Port)
    Sync Compatability Digital
    Video Input HDMI1, HDMI2/OPS, DVI-D, DisplayPort
    Picture Modes Vivid, Standard, APS, Cinema, Sports, Game, Expert 1/2
    Color Temperature Warm, Medium, Cool
    Media Player
    Type SoC
    CPU 1 GHz, dual-core
    Memory 1.25 GB, DDR3
    Storage 16 GB (4 GB for system + 12 GB available)
    Connectivity
    Inputs 2 x HDMI (rear)
    1 x OPS (rear, shared with HDMI 2)
    1 x DisplayPort (side)
    1 x DVI-D (side)
    1 x 1/8" (3.5 mm) Audio (rear)
    1 x RS-232C (side)
    1 x RJ45 (rear)
    1 x IR/Light Sensor (rear)
    1 x Pixel Sensor (rear)
    Outputs 1 x Speaker Left and Right (rear)
    1 x RS-232C (side)
    1 x DisplayPort (side)
    Other 1 x Power
    Audio
    Power 10 W x 2 for optional external speakers
    Sound Modes Standard, News, Music, Cinema, Sports, Game
    General
    Bezel Width 7.4 mm (T/L/R/U even)
    VESA Compatibility 400 x 400 mm
    Compliances Safety: UL, cUL, CB, TUV, KC
    EMC: FCC Class "A", CE, KCC
    ENERGY STAR: 6.0
    Power Type: Built-in
    Requirements: 100 to 240 VAC, 50/60 Hz
    Power Consumption Typical: 125 W
    Smart Energy Saving On/Off: 90 W
    DPM: 0.7 W (DP)
    Power Off: 0.5 W
    Energy Saving Minimum, Medium, Maximum, Screen off
    Operating Environment Temperature: 32 to 104°F (0 to 40°C)
    Humidity: 10 to 80%
    Dimensions (WxHxD) 43.1 x 24.6 x 1.3" (109.5 x 62.5 x 3.3 cm)
    Weight 34.4 lb (15.6 kg)
    Packaging Info
    Package Weight 42.0 lb
    Box Dimensions (LxWxH) 47.0 x 30.0 x 5.0"
    The user manual for the LG 49LS75A-5B 49"-Class Full HD Commercial IPS 49LS75A-5B can be downloaded in .pdf format if it did not come with your new commercial monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other LG users keep a unique electronic library for LG commercial monitorss, where you can use our link to download the user manual for the LG 49LS75A-5B 49"-Class Full HD Commercial IPS 49LS75A-5B.

    The user manual lists all of the functions of the LG 49LS75A-5B 49"-Class Full HD Commercial IPS 49LS75A-5B, all the basic and advanced features and tells you how to use the commercial monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from LG service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the LG 49LS75A-5B 49"-Class Full HD Commercial IPS 49LS75A-5B. User manuals are also available on the LG website under A/V Presentation - Commercial Monitors & Displays - Commercial Monitors.
