User manual LG 49LX570H Pro:Centric Single-Tuner LED TV 49LX570H

Operating instructions and pdf manual for use - LG 49LX570H Pro:Centric Single-Tuner LED TV 49LX570H User manual, User manual LG 49LX570H Pro:Centric Single-Tuner LED TV 49LX570H, LG, 49LX570H, Pro:Centric, Single-Tuner, LED, TV, 49LX570H,

User manual for LG 49LX570H Pro:Centric Single-Tuner LED TV 49LX570H

LG 49LX570H Pro:Centric Single-Tuner LED TV 49LX570H
  • Manufacturer: LG
  • Basic description and contents of package
  • Product classification: A/V Presentation - Commercial Monitors & Displays - Commercial Monitors
  • Safety instructions
  • Startup and operation of the commercial monitors
  • Tips for setting up your LG
  • Settings and expert assistance
  • Contact LG service
  • Troubleshooting
  • Warranty information
We recommend checking out our discussion threads on the LG 49LX570H Pro:Centric Single-Tuner LED TV 49LX570H, which address similar problems with connecting and setting up Commercial Monitors LG.


User manual for the LG 49LX570H Pro:Centric Single-Tuner LED TV 49LX570H

The user manual for the LG 49LX570H Pro:Centric Single-Tuner LED TV 49LX570H provides necessary instructions for the proper use of the product A/V Presentation - Commercial Monitors & Displays - Commercial Monitors.

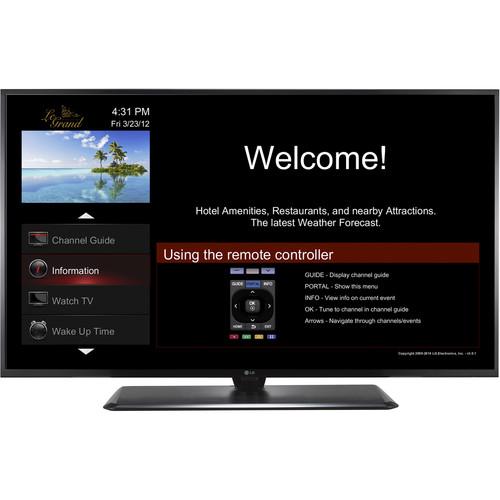

The 49LX570H 49" Pro:Centric Single Tuner LED TV from LG comes with a slim profile and delivers remarkable brightness, clarity, and color detail, as well as energy efficiency. Designed to meet the needs of hotel guests, this TV is compatible with Pro:Idiom content encryption systems and b-LAN technology for delivering interactive and free-to-guest content to hotel guests.
If you own a LG commercial monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the LG 49LX570H Pro:Centric Single-Tuner LED TV 49LX570H in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the LG 49LX570H Pro:Centric Single-Tuner LED TV 49LX570H:
Specifications
Panel
Panel Size 49" (124 cm) class
48.5" (123 cm) diagonal
Panel Technology Edge LED
Native Resolution 1920 x 1080 (FHD)
Frame Rate 60 Hz
Response Time 9ms
Brightness 214 cd/m2
Viewing Angle 178°/178°
Dynamic Contrast Ratio 1,000,000:1
Static Contrast Ratio 1200:1
Broadcasting System
Analog NTSC
Digital ATSC/QAM/VSB
Audio
Sound Mode Yes, 6 modes (Standard, News, Music, Cinema, Sport, Game)
Sound System 2.0 channel
Optimize Yes, 3 modes (Normal, Wall-Mount Type, Stand Type)
Audio Out 10 W + 10 W (Watts - THD 10%)
I/O Interface
Side I/O Ports HDMI In: 2
USB (2.0): 1
Rear I/O Ports RF In: 1
PTC Configuration: 1 (Sharing with RS-232C) (phone jack type)
RS-232C (D-sub 9-pin): 1 (Service Only)
RGB In: 1 (D-sub 15-pin)
AV In: 1
Digital Audio Out: 1 (Optical)
HDMI/HDCP Input: 1
PC Audio Input: 1 (sharing with AV In)
LAN Port: 1
MPI Port: 1 (RJ12)
External Speaker Out: 1 Rear (3.5 mm phone jack)
Video
Engine Triple XD Engine
Aspect Ratio Yes (5 Modes: 16:9, just scan, set by program, 4:3, zoom)
Power
Voltage 110 to 240 V, 50/60 Hz
Standby Mode (W) 0.5 W
Typical 38 W
Cabinet
Bezel Width On (L/R, U, B): 0.6, 0.5, 0.7" (15.1, 12.7, 17.8 mm)
Off (L/R, U, B): 0.5, 0.4, 0.6" (12.6, 10.2, 15.3 mm)
VESA Mount 300 x 300 mm
Swivel Angle ±20° (Optional ±45°/90°)
Special Features Lock Down Plate: Yes
Credenza/Screw Security Hole: Yes
Motion Eye Care: Yes
Logical Channel Map: Yes
USB Picture: Yes
Instant ON: Yes
Installer Menu: Yes
Multicast/Unicast Ready: Yes (P:C Server)
Welcome Screen: Yes (Splash Image)
HTNG-CEC: Yes
HCAP: GEM/FLASH
Self Diagnostics: Yes (RF/USB)
Clear Voice II: Yes
Optical Sound Sync: Yes
Audio Codec: AC3 (Dolby Digital), EAC3, AAC, MPEG, MP3, PCM
HDMI-CEC: Yes (without ARC)
EzManager: Yes
External Speaker Out: Variable/Fixed/Line Out, 3.5 mm, Stereo, Single Ended
Type (GND,L+,R+), 1 W with 8 Ω)
IR Out: Yes (MPI Jack)
Pro:Centric Application: Yes (PCA3.0)
Pro:Centric: Yes (Single Tuner)
Pro:Idiom: Yes
Multi IR Code: Yes
RF: Yes (1 Tuner)
RJP Interface: Teleadapt (RJ45, HDMI-CEC), G-Link (HDMI-CEC)
RJP Compatible: Yes (RJ45, HDMI)
SI Compatible (TVLink Protocol): Yes (MPI protocol)
Auto Off/Auto Sleep: Yes
Smart Energy Saving: Yes
USB: Yes
USB Cloning: Yes
b-LAN: Yes
Moving Picture Playback (SD/HD/Plus HD): DiVX HD
Commercial Grade Stand: Yes
Kensington Lock: Yes (stand)
Certifications
Environment RoHS
Safety UL, FCC
Other cUL, NOM, Energy Star 7.0
Mechanical
Dimensions Without Stand: 43.5 x 25.5 x 2.20" (111 x 64.7 x 5.60)
With Stand: 43.5 x 27.6 x 12.8" (111 x 70.1 x 32.5 cm)
Weight Without Stand: 31.7 lb (14.4 kg)
With Stand: 39.2 lb (17.8 kg)
The user manual for the LG 49LX570H Pro:Centric Single-Tuner LED TV 49LX570H can be downloaded in .pdf format if it did not come with your new commercial monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other LG users keep a unique electronic library for LG commercial monitorss, where you can use our link to download the user manual for the LG 49LX570H Pro:Centric Single-Tuner LED TV 49LX570H.

The user manual lists all of the functions of the LG 49LX570H Pro:Centric Single-Tuner LED TV 49LX570H, all the basic and advanced features and tells you how to use the commercial monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from LG service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the LG 49LX570H Pro:Centric Single-Tuner LED TV 49LX570H. User manuals are also available on the LG website under A/V Presentation - Commercial Monitors & Displays - Commercial Monitors.
