User manual for the LILLIPUT 5D-ii/O/P 7" HDMI LCD Field Monitor 5D-II/O/P
The user manual for the LILLIPUT 5D-ii/O/P 7" HDMI LCD Field Monitor 5D-II/O/P provides
necessary instructions for the proper use of the product Professional Video - Monitors - On Camera Monitors.

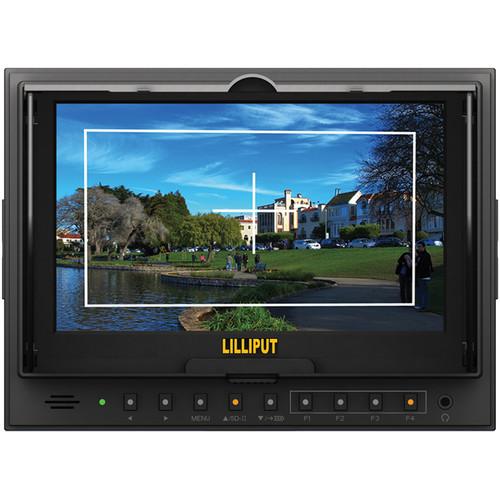

The 5D-ii/O/P 7" HDMI LCD Field Monitor from Lilliput is suitable for use with DSLR cameras and can be easily stored in a camera bag. It supports video with resolution up to 1920 x 1080 and features a native resolution of 1024 x 600, scaling your input video to fit. The 800:1 contrast ratio and 250 cd/m² brightness provide a sharp, clear display.
The monitor is equipped with 1:1 pixel mapping, peaking, and a foldable sun-hood/screen protector. It features an HDMI output, allowing you to feed a second monitor without requiring a splitter, thus reducing the amount of cable clutter on your camera. Four assignable front panel buttons allow you to rapidly recall often used menu functions. The monitor comes with Canon LP-E6 and Sony F970 battery plates.
|
If you own a LILLIPUT on camera monitors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the LILLIPUT 5D-ii/O/P 7" HDMI LCD Field Monitor 5D-II/O/P in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the LILLIPUT 5D-ii/O/P 7" HDMI LCD Field Monitor 5D-II/O/P:
| Screen Size (Diagonal) | 7" (177.8 mm) | | Aspect Ratio | 16:9 | | Resolution | 1024 × 600 (native), 1920 × 1080 (maximum) | | Pixel Pitch | 0.135 × 0.135 mm | | Display Scan Frequency | 60 to 72 Hz | | Response Time | 6 ms | | Viewing Angle | 150 x 130° | | Brightness | 250 cd/m² | | Contrast Ratio (Typical) | 800:1 | | LCD Backlight | LED | | Video Inputs | HDMI | | Video Outputs | HDMI | | Audio Outputs | < 1 W | | Input Power | 12 VDC | | Mount Type | 1/4" BSW thread, shoe mount | | Battery Plate | Canon LP-E6: EOS 5D Mark II, EOS 5D Mark III, EOS 7D, EOS 60D, EOS 6D
Sony F970: DCR-TRV series, DCR-TRV E series, VX2100E PD P series, GV-A700, GV-D800 FD/CCD-SC/TR3/FX1E/HVR-AIC, HDR-FX1000E, HVR-Z1C, HVR-V1C, FX7E F330 | | Dimensions (W x H x D) | 7.7 x 5.7 x 1.2" (196.5 x 145 x 31 mm) | | Weight | 14.1 oz (400 g) | | Package Weight | 3.15 lb | | Box Dimensions (LxWxH) | 9.1 x 6.7 x 4.2" | |
The user manual for the LILLIPUT 5D-ii/O/P 7" HDMI LCD Field Monitor 5D-II/O/P can be downloaded in .pdf
format if it did not come with your new on camera monitors, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other LILLIPUT users keep a unique electronic library
for LILLIPUT on camera monitorss,
where you can use our link to download the user manual for the LILLIPUT 5D-ii/O/P 7" HDMI LCD Field Monitor 5D-II/O/P.
The user manual lists all of the functions of the LILLIPUT 5D-ii/O/P 7" HDMI LCD Field Monitor 5D-II/O/P,
all the basic and advanced features and tells you how to use the on camera monitors.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from LILLIPUT service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the LILLIPUT 5D-ii/O/P 7" HDMI LCD Field Monitor 5D-II/O/P. User manuals are also
available on the LILLIPUT website under Professional Video - Monitors - On Camera Monitors.
