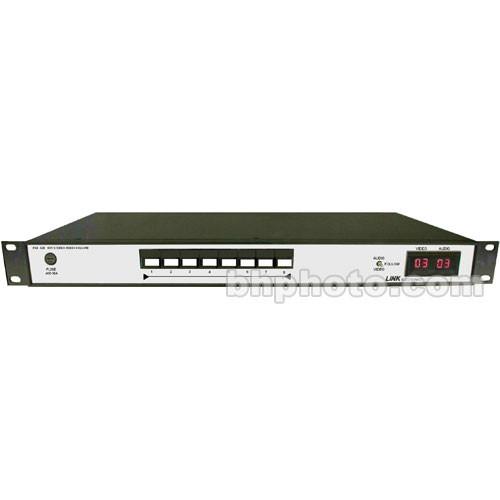

The Link Electronics PAF-820 is an eight input, one output, balanced stereo audio switcher. It offers an identical second output and remote control via RS-232. An RJ-11 telephone connector allows several audio follow units to operate in tandem. This unit operates in an audio follow situation for VSW-800 series video switchers or as a stand alone device.
If you own a Link Electronics routers & switchers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Link Electronics PAF-820 Audio Follow Switcher, 8x1, PAF-820 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Link Electronics PAF-820 Audio Follow Switcher, 8x1, PAF-820:
Input Balanced Stereo Audio x8, @ 20K ohms, on terminal block connectors
Output Balanced Stereo Audio, @ 66 ohms, on terminal block connectors
Switch Type Front Panel Buttons
Remote switching via RS-232
Audio Follow via VSW-800 video switchers
Audio Bandwidth 20 kHz
Signal to Noise Ratio 100 dB
Audio THD 0.004%
Control Front Panel Buttons
Remote switching via RS-232
Audio Follow via VSW-800 video switchers
Power Source 120 VAC 60 Hz
240 VAC 50 Hz
Dimensions (WxDxH) 19 x 8.7 x 1.75"
48.26 x 22 x 4.45cm
Weight 6.5 lbs
2.9 kg
Packaging Info
Package Weight 9.0 lb
Box Dimensions (LxWxH) 21.0 x 20.0 x 6.0"
