User manual Linksys LAPAC1200 AC1200 Dual Band Wireless Access LAPAC1200

Operating instructions and pdf manual for use - Linksys LAPAC1200 AC1200 Dual Band Wireless Access LAPAC1200 User manual, User manual Linksys LAPAC1200 AC1200 Dual Band Wireless Access LAPAC1200, Linksys, LAPAC1200, AC1200, Dual, Band, Wireless, Ac


User manual for Linksys LAPAC1200 AC1200 Dual Band Wireless Access LAPAC1200

Overall rating 3.5
Overall Rating: 3.5

70% of respondents would recommend this to a friend.
Linksys LAPAC1200 AC1200 Dual Band Wireless Access LAPAC1200
  • Manufacturer: Linksys
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Networking - Wireless Access Points
  • Safety instructions
  • Startup and operation of the wireless access points
  • Tips for setting up your Linksys
  • Settings and expert assistance
  • Contact Linksys service
  • Troubleshooting
  • Warranty information
  • Price: 144 USD
We recommend checking out our discussion threads on the Linksys LAPAC1200 AC1200 Dual Band Wireless Access LAPAC1200, which address similar problems with connecting and setting up Wireless Access Points Linksys.



User manual for the Linksys LAPAC1200 AC1200 Dual Band Wireless Access LAPAC1200

The user manual for the Linksys LAPAC1200 AC1200 Dual Band Wireless Access LAPAC1200 provides necessary instructions for the proper use of the product Computers & Solutions - Networking - Wireless Access Points.

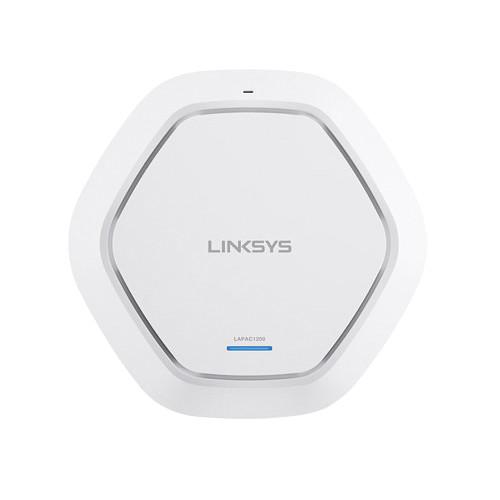

Leverage the speed and reliability of the 802.11ac network standard with the LAPAC1200 AC1200 Dual Band Wireless Access Point from Linksys. With this dual band access point you can offer connectivity on both the 2.4 GHz and 5 GHz frequencies allowing for a maximum data transfer rate of up to 1,200 Mbps. Along with dual band connectivity, this Linksys access point comes compatible with 802.11a/b/g/n network standards ensuring nearly any Wi-Fi compatible device will be able to connect to it.

With integrated Power over Ethernet (PoE) connectivity you can eliminate the need for additional power adapters allowing this access point to be installed nearly anywhere. Additional features include an integrated Gigabit Ethernet port, workgroup bridge mode for range extension, advanced network security options, IPv6 support, and much more.
If you own a Linksys wireless access points and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Linksys LAPAC1200 AC1200 Dual Band Wireless Access LAPAC1200 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Linksys LAPAC1200 AC1200 Dual Band Wireless Access LAPAC1200:
Hardware
Standards IEEE 802.11a, 802.11b, 802.11g, 802.11n, 802.11ac, 802.3. 802.3u, and 802.3at
Frequency 2.4 GHz and 5 GHz (concurrent)
MIMO 2 x 2
Internal Antennas Yes
RF Output Power High power PA
PoE 802.3at
Kensington Lock Support Yes
LED One system LED
AC Power Adapter 12 V / 1.5 A
Frequency Band and Operating Channels 2.412 to 2.462 GHz; 11 channels
5.180 to 5.240 GHz; 4 channels
5.745 to 5.825 GHz; 5 channels
Antenna gain in dBi 1.7 dBi @ 2.4 G, 1.9 dBi @ 5 G
Transmitted Power 2.4 GHz per chain output power
802.11b @ channel 6, 1 Mbps: 23 dBm, 802.11g @ channel 6, 6 Mbps: 17 dBm
802.11n HT20 @ channel 6, MCS7: 17 dBm
5 GHz per chain output power, UNII-1 (5150-5250 MHz)
802.11a @ channel 40, 6 Mbps: 15 dBm, 802.11n HT20 @ MCS8: 15 dBm
802.11n HT40 @ MCS8: 14 dBm, 802.11ac HT80 @ MCS0: 14 dBm
UNII-3 (5150-5250 MHz)
802.11a @ channel 157, 6 Mbps: 24 dBm, 802.11n HT20 @ MCS8: 24 dBm
802.11n HT40 @ MCS8: 23 dBm, 802.11ac HT80 @ MCS0: 21 dBm
Receiver Sensitivity 802.11b @ 11 Mbps: -85 dBm, 802.11a/g @ 54 Mbps: -70 dBm
802.11n @ HT20 MCS7/15: -65 dBm, 802.11n @ HT40 MCS7/15: -62 dBm
802.11ac @ VHT MCS9/19: -51 dBm
Maximum Power Consumption 13 W
Compliance Class B, wireless
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 158°F / -20 to 70°C
Operating Humidity 10 to 85% non-condensing
Storage Humidity 10 to 90% non-condensing
Regulatory Certifications FCC, CE, IC
Software
Multiple SSIDs 16
Number of VLANs 17
Management Interface Web (http/https), SNMP
Event Notification Local Log, Remote Syslog, and Email Alerts
Network Diagnostics Log, Ping, Packet Capture
Dimensions & Weight
Dimensions 9.57 x 9.33 x 1.72" / 243.08 x 236.98 x 43.69 mm
Weight 1.12 lb / 0.51 kg
Packaging Info
Package Weight 2.65 lb
Box Dimensions (LxWxH) 13.1 x 10.5 x 2.5"
The user manual for the Linksys LAPAC1200 AC1200 Dual Band Wireless Access LAPAC1200 can be downloaded in .pdf format if it did not come with your new wireless access points, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Linksys users keep a unique electronic library for Linksys wireless access pointss, where you can use our link to download the user manual for the Linksys LAPAC1200 AC1200 Dual Band Wireless Access LAPAC1200.

The user manual lists all of the functions of the Linksys LAPAC1200 AC1200 Dual Band Wireless Access LAPAC1200, all the basic and advanced features and tells you how to use the wireless access points. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Linksys service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Linksys LAPAC1200 AC1200 Dual Band Wireless Access LAPAC1200. User manuals are also available on the Linksys website under Computers & Solutions - Networking - Wireless Access Points.
