User manual Linksys LGS116P 16-Port Unmanaged PoE Switch LGS116P

Operating instructions and pdf manual for use - Linksys LGS116P 16-Port Unmanaged PoE Switch LGS116P User manual, User manual Linksys LGS116P 16-Port Unmanaged PoE Switch LGS116P, Linksys, LGS116P, 16-Port, Unmanaged, PoE, Switch, LGS116P,


User manual for Linksys LGS116P 16-Port Unmanaged PoE Switch LGS116P

Overall rating 4.0
Overall Rating: 4.0

80% of respondents would recommend this to a friend.

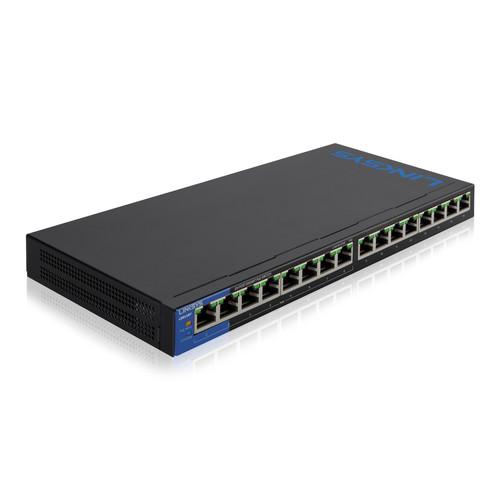

Linksys LGS116P 16-Port Unmanaged PoE Switch LGS116P
  • Manufacturer: Linksys
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Networking - Network Switches, Bridges & Hubs
  • Safety instructions
  • Startup and operation of the network switches, bridges & hubs
  • Tips for setting up your Linksys
  • Settings and expert assistance
  • Contact Linksys service
  • Troubleshooting
  • Warranty information
  • Price: 165 USD
We recommend checking out our discussion threads on the Linksys LGS116P 16-Port Unmanaged PoE Switch LGS116P, which address similar problems with connecting and setting up Network Switches, Bridges & Hubs Linksys.



User manual for the Linksys LGS116P 16-Port Unmanaged PoE Switch LGS116P

The user manual for the Linksys LGS116P 16-Port Unmanaged PoE Switch LGS116P provides necessary instructions for the proper use of the product Computers & Solutions - Networking - Network Switches, Bridges & Hubs.

With 8 Power over Ethernet enabled ports, the LGS116P 16-Port Unmanaged PoE Switch from Linksys helps to eliminate the need to run an additional power supply to your network components. The first eight of the sixteen Gigabit Ethernet ports are dedicated PoE ports with a power budget of up to 80 W. In addition to the Gigabit Ethernet ports, this switch features a 32 Gbps bandwidth, 8K MAC address table, enhanced full line rate and forwarding rate of up to 1.488 Mpps for the 1000M port. Linksys also provides cable connected detection and sleep mode features to help conserve power when the switch is idle.
If you own a Linksys network switches, bridges & hubs and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Linksys LGS116P 16-Port Unmanaged PoE Switch LGS116P in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Linksys LGS116P 16-Port Unmanaged PoE Switch LGS116P:
Specifications
    Standards IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3az, 802.3af, and 802.3at (PoE+)
    Number of Ports 16-port switch with 8 PoE+ ports
    (first 1-8 ports) and dedicated PoE power budget of 80 W
    MAC Address Table Size 8,000 entries
    Bandwidth 32 Gbps (non-blocking)
    Performance Full line rate and forwarding rate of 64 B frame at
    • 1.488 Mpps for 1000M port
    • 0.1488 Mpps for 100M port
    • 0.01488 Mpps for 10M port
    Quality of Service (QoS) 802.1q and DSCP
    Status LEDs Link, speed, activity, and PoE indicators
    Power Supply External
    Power 110-240 VAC, 50/60 Hz, 54 VDC, 1.66 A
    Power Saving Cable connected detection
    Sleep mode
    Power Consumption Idle: 4.52 W (100% traffic)
    Use: 11.31 W (100% traffic)
    Fan None
    Operating Temperature 32 to 122°F / 0 to 50°C
    Storage Temperature -40 to 158°F / -40 to 70°C
    Operating Humidity 10 to 90% non-condensing
    Storage Humidity 10 to 90% non-condensing
    Certifications FCC Class A, CE
    Mounting Wall mount
    Minimum System Requirements Connected devices need Ethernet connectivity and Ethernet cables
    Dimensions 11.02 x 4.72 x 1.00" / 280 x 120 x 25 mm
    Weight 1.812 lb / 0.822 kg
    Packaging Info
    Package Weight 3.7 lb
    Box Dimensions (LxWxH) 13.4 x 8.9 x 3.1"
