User manual Linksys LGS124P 24-Port Unmanaged PoE Switch LGS124P

Operating instructions and pdf manual for use - Linksys LGS124P 24-Port Unmanaged PoE Switch LGS124P User manual, User manual Linksys LGS124P 24-Port Unmanaged PoE Switch LGS124P, Linksys, LGS124P, 24-Port, Unmanaged, PoE, Switch, LGS124P,


User manual for Linksys LGS124P 24-Port Unmanaged PoE Switch LGS124P

Overall rating 5.0
Overall Rating: 5.0

100% of respondents would recommend this to a friend.

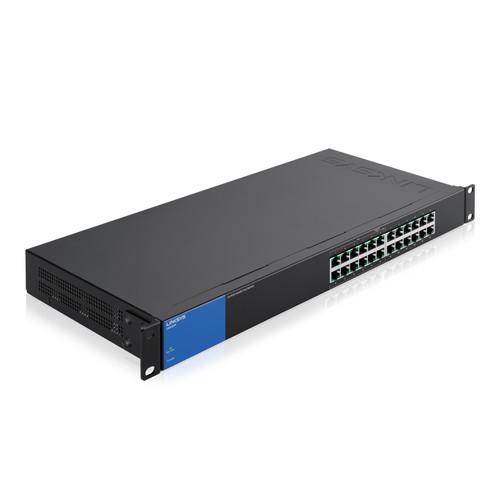

Linksys LGS124P 24-Port Unmanaged PoE Switch LGS124P
  • Manufacturer: Linksys
  • Basic description and contents of package
  • Product classification: Computers & Solutions - Networking - Network Switches, Bridges & Hubs
  • Safety instructions
  • Startup and operation of the network switches, bridges & hubs
  • Tips for setting up your Linksys
  • Settings and expert assistance
  • Contact Linksys service
  • Troubleshooting
  • Warranty information
  • Price: 278 USD
We recommend checking out our discussion threads on the Linksys LGS124P 24-Port Unmanaged PoE Switch LGS124P, which address similar problems with connecting and setting up Network Switches, Bridges & Hubs Linksys.



User manual for the Linksys LGS124P 24-Port Unmanaged PoE Switch LGS124P

The user manual for the Linksys LGS124P 24-Port Unmanaged PoE Switch LGS124P provides necessary instructions for the proper use of the product Computers & Solutions - Networking - Network Switches, Bridges & Hubs.

With 12 Power over Ethernet enabled ports, the LGS124P 24-Port Unmanaged PoE Switch from Linksys helps to eliminate the need to run an additional power supply to your network components. Ports one through six and thirteen through eighteen of the twenty four Gigabit Ethernet ports are dedicated PoE ports with a power budget of up to 120 W. In addition to the Gigabit Ethernet ports, this switch features a 48 Gbps bandwidth, 8K MAC address table, enhanced full line rate and forwarding rate of up to 1.488 Mpps for the 1000M port. Linksys also provides cable connected detection and sleep mode features to help conserve power when the switch is idle.
If you own a Linksys network switches, bridges & hubs and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Linksys LGS124P 24-Port Unmanaged PoE Switch LGS124P in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Linksys LGS124P 24-Port Unmanaged PoE Switch LGS124P:
Standards IEEE 802.3, 802.3u, 802.3x, 802.3ab, 802.3az, 802.3af, and 802.3at (PoE+)
Number of Ports 24-port switch with 12 PoE+ ports
(ports 1-6 and 13-18) and dedicated PoE power budget of 120 W
MAC Address Table Size 8,000 entries
Bandwidth 48 Gbps (non-blocking)
Performance Full line rate and forwarding rate of 64 B frame at
• 1.488 Mpps for 1000M port
• 0.1488 Mpps for 100M port
• 0.01488 Mpps for 10M port
Quality of Service (QoS) 802.1q and DSCP
Status LEDs Link, speed, activity, and PoE indicators
Power Supply Internal
Power 110-240 VAC, 50/60 Hz
Power Saving Cable connected detection
Sleep mode
Power Consumption Idle: 7.79 W (100% traffic)
Use: 17.65 W (100% traffic)
Fan One
Operating Temperature 32 to 122°F / 0 to 50°C
Storage Temperature -40 to 158°F / -40 to 70°C
Operating Humidity 10 to 90% non-condensing
Storage Humidity 10 to 90% non-condensing
Certifications FCC Class A, CE
Mounting Rack mount
Minimum System Requirements Connected devices need Ethernet connectivity and Ethernet cables
Dimensions 17.32 x 7.87 x 1.73" / 440 x 200 x 44 mm
Weight 6.080 lb / 2.758 kg
Packaging Info
Package Weight 7.8 lb
Box Dimensions (LxWxH) 19.8 x 11.7 x 3.6"
The user manual for the Linksys LGS124P 24-Port Unmanaged PoE Switch LGS124P can be downloaded in .pdf format if it did not come with your new network switches, bridges & hubs, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Linksys users keep a unique electronic library for Linksys network switches, bridges & hubss, where you can use our link to download the user manual for the Linksys LGS124P 24-Port Unmanaged PoE Switch LGS124P.

The user manual lists all of the functions of the Linksys LGS124P 24-Port Unmanaged PoE Switch LGS124P, all the basic and advanced features and tells you how to use the network switches, bridges & hubs. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Linksys service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Linksys LGS124P 24-Port Unmanaged PoE Switch LGS124P. User manuals are also available on the Linksys website under Computers & Solutions - Networking - Network Switches, Bridges & Hubs.
