User manual Listen Technologies Portable Display RF Receiver LR-400-216

Operating instructions and pdf manual for use - Listen Technologies Portable Display RF Receiver LR-400-216 User manual, User manual Listen Technologies Portable Display RF Receiver LR-400-216, Listen, Technologies, Portable, Display, RF, Receiver,


User manual for Listen Technologies Portable Display RF Receiver LR-400-216

Listen Technologies Portable Display RF Receiver LR-400-216
  • Manufacturer: Listen Technologies
  • Basic description and contents of package
  • Product classification: A/V Presentation - Assistive Listening - Components & Accessories
  • Safety instructions
  • Startup and operation of the components & accessories
  • Tips for setting up your Listen Technologies
  • Settings and expert assistance
  • Contact Listen Technologies service
  • Troubleshooting
  • Warranty information
  • Price: 149 USD

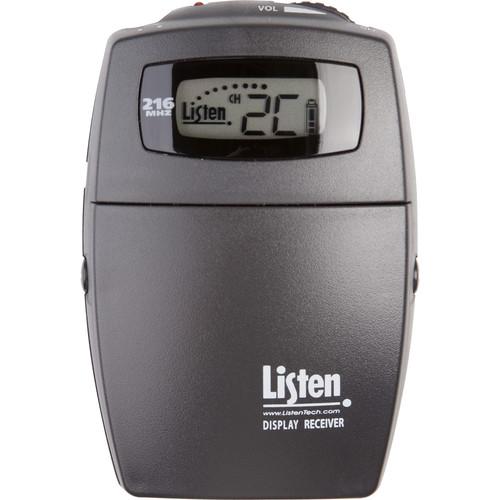

Listen Technologies Portable Display RF Receiver LR-400-216 Listen Technologies Portable Display RF Receiver LR-400-216
Click to enlarge image

We recommend checking out our discussion threads on the Listen Technologies Portable Display RF Receiver LR-400-216, which address similar problems with connecting and setting up Components & Accessories Listen Technologies.



User manual for the Listen Technologies Portable Display RF Receiver LR-400-216

The user manual for the Listen Technologies Portable Display RF Receiver LR-400-216 provides necessary instructions for the proper use of the product A/V Presentation - Assistive Listening - Components & Accessories.

The Portable Display RF Receiver from Listen Technologies is a 216 MHz receiver. It can receive up to 57 channels and has a digital display (LCD) to monitor channel selection, battery level, and signal strength. An LED on top of the receiver indicates if the unit is on, when batteries are low, or if the unit is locked on a channel. It has channel SEEK capability and is compatible with mono or stereo earphones.
If you own a Listen Technologies components & accessories and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Listen Technologies Portable Display RF Receiver LR-400-216 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Listen Technologies Portable Display RF Receiver LR-400-216:
RF Specification
RF Frequency Range 216.0125 to 216.9875 MHz
Number of Channels 19 wide band, 38 narrow band
Sensitivity 0.6 uV typical, 1 uV maximum for 12 dB SINAD
Frequency Accuracy ± .005% stability +32 to 122°F (0 to 50°C)
Antenna Type Uses earphone cable
Squelch Programmable in 20 steps, automatic on loss of RF signal
Audio
Frequency Response System: 50 to 10 kHz (±3 dB)
Signal to Noise Ratio System, A-Weighted: SQ enabled 80 dB, SQ disabled 50 dB
System Distortion <2% total harmonic distortion (THD) at 80% deviation
Audio Output Jack 3.5 mm connectors, unbalanced, 0 dBu nominal output level, 16 mW maximum, impedance 32 ohm
Controls
User Controls Channel UP/DOWN, SEEK (all controls except volume are lockable)
Programming Channel lock, squelch
Indicators
LEDs Red, illuminated when unit is on, flashes when batteries are low or to indicate charging, flashes when locked and SEEK is pushed
LCD Channel designation,battery level, battery charging, RF signal strength and channel lock
Power
Battery Type 2 x AA batteries, alkaline or NiMH
Battery Life 30 hours alkaline, 15 hours NiMH rechargeable
Battery Charging Time Fully automatic, 13 hours
Power Supply I/P 120 VAC, O/P 7.5 VDC 250 mA, drop in contact points for use with charging cases
Power Supply Connector 0.09 OD by 0.02" ID (2.3 OD by 0.7 mm ID}, barrel type connector 7.5 VDC, center positive <250 mA, drop in contact points for use with Listen charging cases
Battery 12 VDC, connected via terminal block
Battery Charging Trickle charge of optional 12 VDC battery through terminal block connection
Compliance RoHS, WEEE, UL, PSE, CE, CUL, TUV, CB
Environmental
Operation Temperature 14 to 104°F (-10 to 40°C)
Storage Temperature -4 to 122°F (-20 to 50°C)
Humidity (Non-Condensing) 0 to 95% relative humidity
Physical
Color Dark gray with white silk screening
Doors Manually lockable, SEEK/channel select behind the door
Dimensions 4.25 x 2.75 x 1.5" (10.8 x 7 x 3.8 cm)
Weight Unit with Batteries: 5.8 oz (164 g)
Packaging Info
Package Weight 0.45 lb
Box Dimensions (LxWxH) 6.0 x 4.5 x 2.1"
The user manual for the Listen Technologies Portable Display RF Receiver LR-400-216 can be downloaded in .pdf format if it did not come with your new components & accessories, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Listen Technologies users keep a unique electronic library for Listen Technologies components & accessoriess, where you can use our link to download the user manual for the Listen Technologies Portable Display RF Receiver LR-400-216.

The user manual lists all of the functions of the Listen Technologies Portable Display RF Receiver LR-400-216, all the basic and advanced features and tells you how to use the components & accessories. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Listen Technologies service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Listen Technologies Portable Display RF Receiver LR-400-216. User manuals are also available on the Listen Technologies website under A/V Presentation - Assistive Listening - Components & Accessories.
