User manual for the Lorex by FLIR 2.1MP Micro PTZ Indoor/Outdoor Network LNZ3522RB
The user manual for the Lorex by FLIR 2.1MP Micro PTZ Indoor/Outdoor Network LNZ3522RB provides
necessary instructions for the proper use of the product Surveillance - Surveillance Video - Wired IP Cameras.

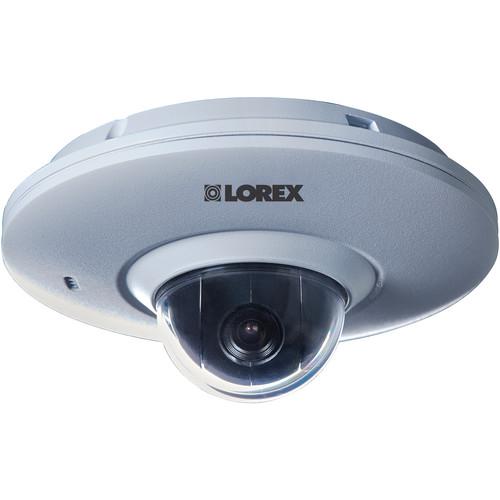

Full HD Video, pan/tilt/zoom controls, and wide coverage of an area make Lorex's LNZ3522B HD 2.1MP Micro PTZ Dome Camera a viable option for NTSC and PAL based home and business surveillance. Suitable for video monitoring applications that require clear, high-resolution images, this camera relies on upon a 1/3" Sony Exmor image sensor, which can capture full HD video at the 1920 x 1080 resolution at a frame rate up to 30 fps, and 2.1MP image stills.
Furthermore, the camera's fixed 3.6mm, auto-iris lens achieves a 90° wide-angle field of view that reduces the number of cameras needed to efficiently monitor a scene. This feature combined with the camera's robust Pan & Tilt functions and 3x digital zoom makes this micro PoE a versatile indoor and outdoor surveillance camera. And, for added security, the camera is powered via a wired Ethernet connection that is more reliable than the Wi-Fi alternative, which can be susceptible to hacking, connectivity disruptions, and latency when streaming HD video.
Additionally, when the camera is connected to a compatible Lorex LNR100/LNR400 Series NVR, you'll be able to record what the camera sees continuously, at scheduled times, or when motion is detected. Define motion sensitivity settings and event triggers to receive email alerts when motion is detected. With a Lorex NVR, you'll get a host of robust recording features as well as the ability to tailor surveillance to your home or business' needs.
With an IP66 weatherproof rating, this camera is built to operate in harsh environments and to withstand dust, rain, and snow. A CAT5 Ethernet cable and mounting hardware are included to facilitate setup and installation.
If you own a Lorex by FLIR wired ip cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Lorex by FLIR 2.1MP Micro PTZ Indoor/Outdoor Network LNZ3522RB in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Lorex by FLIR 2.1MP Micro PTZ Indoor/Outdoor Network LNZ3522RB:
Specifications
Image Sensor
2.1MP, 1/3" Progressive Scan
Video Format
NTSC / PAL
Video Resolution
1080p, 1920 x 1080
PTZ Control
Pan: ±180° Tilt: 90° Zoom: 3x digital
Pan & Tilt Speed
Max. up to 100° per sec, (preset)
Lens Type
Fixed
Iris
Automatic Electronic Shutter (AES)
Focal Length
3.6mm at f/1.2
Field of View
90°
S/N Ratio
> 50 dB with AGC off
Minimum Illumination
B/W: 0.1 lux
Power Requirement
PoE, Class 3 12 VDC Adapter (sold separately; not included)
The user manual for the Lorex by FLIR 2.1MP Micro PTZ Indoor/Outdoor Network LNZ3522RB can be downloaded in .pdf
