User manual for the Lorex by FLIR 4-Channel 720p DVR with 1TB HDD and 4 LH04141TC4W

The user manual for the Lorex by FLIR 4-Channel 720p DVR with 1TB HDD and 4 LH04141TC4W provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Surveillance Kits.

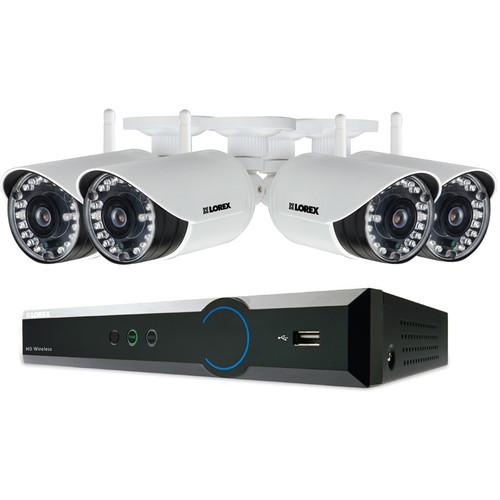

Create a complete indoor or outdoor surveillance solution using the 4-Channel 720P DVR with 1 TB HDD and 4 720p Outdoor Bullet Cameras from Lorex. The DVR's 1TB installed HDD can be upgraded later to as much as 4TB for recording the recorded footage from all four included cameras. With 2 USB ports, you can connect controllers like keyboards, as well as transfer data to a USB jump drive for archiving and later reviewing. With an HDMI and VGA video output, you can easily connect a monitor to view your footage in real time. Schedule your recording by hour, day, recording mode, motion, or channel to preserve power and storage space.

Complementing the channels on the DVR are four wireless bullet cameras. A wireless receiver is provided to be plugged into the DVR. Each camera is IP66 outdoor-rated to be weather and dustproof so you can feel confident installing them inside or out. The 1/3" CMOS image sensor and 3.6mm f/2.0 fixed lens captures 720p resolution images with a 72° field of view. Eighteen IR LEDs offer an ambient light distance of 120' and total dark distance of 80', and an automatic IR cut filter gives these cameras 24-hour surveillance capabilities. Utilizing interference reduction and signal guard technologies ensures signal quality and strength with automatic reconnection between the camera and receiver. Transmission ranges of up to 165' indoor and 500' outdoor allow these cameras to be placed in areas where running cables is impossible or impracticable. Each camera features a power cable pass through allowing for neat installation.
If you own a Lorex by FLIR surveillance kits and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Lorex by FLIR 4-Channel 720p DVR with 1TB HDD and 4 LH04141TC4W in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Lorex by FLIR 4-Channel 720p DVR with 1TB HDD and 4 LH04141TC4W:
Specifications
DVR
Channels 4
Video Outputs 1 x VGA
1 x HDMI
USB Ports 1 x Rear
1 x Front
Display Resolution Up to 1080p (1920 x 1080, 1440 x 900, 1280 x 1024, 1280 x 720, 1024 x 768)
Live Display 1, 4
Live Display Speed 120 fps
Video Compression H.264
Recording Quality Control 3 levels
Recording Modes By hour, by day, by recording mode, by motion, by channel
Recording Resolution 720p (1280 x 720)
Pre Recording 10 sec (max.)
Post Recording 5 minutes (max.)
HDD Preinstalled 1TB
Storage Capacity Up to 4TB 3.5" SATA
LAN 1 x Cat5 RJ45
eSATA Port 1
Operating Power 12 VDC
Dimensions (WxDxH) Not specified by manufacturer
Weight Not specified by manufacturer
Camera
Image Sensor 1/3" Color CMOS
Resolution 720p (1280 x 720)
Lens 3.6mm Fixed, F2.0
Viewing Angle Horizontal: 72°
AGC Yes
Image Compression H.264
Night Vision Range Complete Darkness: 80.0' / 24.4 m
Ambient Lighting: 120.0' / 36.6 m
Operating Temperature -4 to 122°F (-20 to 50°C)
Weatherproof Rating IP66
Power Requirement 12 VDC ±10%
Power Consumption 375 mA max (with IR LED on)
160 mA max (without IR LED on)
Dimensions 2.8 x 8.8 x 2.9" / 7.1 x 22.3 x 7.4 cm (with antenna and sunshade)
Weight 0.6 lb / 0.3 kg
Transmitter/Receiver
TX Frequency Range 2.400 to 2.480 GHz
TX Power 16 dBm
RX Sensitivity -81 dBm
Unobstructed Effective Range Indoor: 165.0' / 50.3 m
Outdoor: 500.0' / 152.4 m
Data Rate Transmitter: 4 Mb/s
Receiver: 4 Mb/s
Modulation/Demodulation GFSK
Spread Spectrum FHSS
Supported Resolution 720p (1280 x 720) up to 15 fps
Power Requirement 5 VDC. ±5%
Power Consumption 600 mA max.
Operating Temperature 14 to 104°F / -10 to 40°C
Dimensions 5.5 x 2.3 x 0.8" / 13.9 x 5.8 x 2.0 cm
Weight 0.3 lb / 0.1 kg
Packaging Info
Package Weight 11.3 lb
Box Dimensions (LxWxH) 15.5 x 11.6 x 11.4"
The user manual for the Lorex by FLIR 4-Channel 720p DVR with 1TB HDD and 4 LH04141TC4W can be downloaded in .pdf format if it did not come with your new surveillance kits, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Lorex by FLIR users keep a unique electronic library for Lorex by FLIR surveillance kitss, where you can use our link to download the user manual for the Lorex by FLIR 4-Channel 720p DVR with 1TB HDD and 4 LH04141TC4W.

The user manual lists all of the functions of the Lorex by FLIR 4-Channel 720p DVR with 1TB HDD and 4 LH04141TC4W, all the basic and advanced features and tells you how to use the surveillance kits. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Lorex by FLIR service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Lorex by FLIR 4-Channel 720p DVR with 1TB HDD and 4 LH04141TC4W. User manuals are also available on the Lorex by FLIR website under Surveillance - Surveillance Video - Surveillance Kits.
