User manual Lorex by FLIR LNR110 Series 8-Channel NVR with 2TB LNR1182TC4

Operating instructions and pdf manual for use - Lorex by FLIR LNR110 Series 8-Channel NVR with 2TB LNR1182TC4 User manual, User manual Lorex by FLIR LNR110 Series 8-Channel NVR with 2TB LNR1182TC4, Lorex, by, FLIR, LNR110, Series, 8-Channel, NVR, w


User manual for Lorex by FLIR LNR110 Series 8-Channel NVR with 2TB LNR1182TC4

Overall rating 3.0
Overall Rating: 3.0

60% of respondents would recommend this to a friend.
Lorex by FLIR LNR110 Series 8-Channel NVR with 2TB LNR1182TC4
  • Manufacturer: Lorex by FLIR
  • Basic description and contents of package
  • Product classification: Surveillance - Surveillance Video - Surveillance Kits
  • Safety instructions
  • Startup and operation of the surveillance kits
  • Tips for setting up your Lorex by FLIR
  • Settings and expert assistance
  • Contact Lorex by FLIR service
  • Troubleshooting
  • Warranty information
  • Price: 699 USD
Lorex by FLIR LNR110 Series 8-Channel NVR with 2TB LNR1182TC4 Lorex by FLIR LNR110 Series 8-Channel NVR with 2TB LNR1182TC4
Click to enlarge image

We recommend checking out our discussion threads on the Lorex by FLIR LNR110 Series 8-Channel NVR with 2TB LNR1182TC4, which address similar problems with connecting and setting up Surveillance Kits Lorex by FLIR.



User manual for the Lorex by FLIR LNR110 Series 8-Channel NVR with 2TB LNR1182TC4

The user manual for the Lorex by FLIR LNR110 Series 8-Channel NVR with 2TB LNR1182TC4 provides necessary instructions for the proper use of the product Surveillance - Surveillance Video - Surveillance Kits.

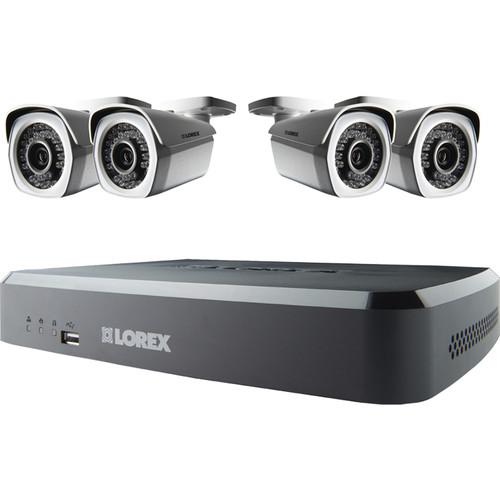

Record HD surveillance footage using the LNR110 Series 8-Channel NVR With 2TB HDD from Lorex. Recording in 1080p at 30fps on all 8-channels, the NVR provides simultaneous live streaming and playback options on the same screen, ensuring you never miss a minute. With 2TB of included storage space, and the option to expand up to 4TB, the NVR is capable of storing your footage 24/7. For backup storage options, two USB ports are located on the NVR for easy storage removal and transferring to other HDDs. HDMI and VGA ports allow you to connect two viewing monitors for live viewing or playback options. View your footage on a PC, Mac, or mobile device using the FLIR Cloud Storage application. With push notifications, motion detection triggered recording, instant email notifications, and time stamps, you can stay informed of every monitored move.

The NVR includes 4 1080p bullet cameras which each feature HD resolution recording and a 3.6mm fixed lens. With night vision up to 80' away in total darkness and 72° horizontal fields of view, the cameras provide detailed footage which is viewable using the NVR. Connected to the NVR using PoE connections and featuring IP66-rated housings, the cameras are designed for easy installation and can be utilized for indoor or outdoor use.
If you own a Lorex by FLIR surveillance kits and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Lorex by FLIR LNR110 Series 8-Channel NVR with 2TB LNR1182TC4 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Lorex by FLIR LNR110 Series 8-Channel NVR with 2TB LNR1182TC4:
Specifications
System
Operating System Linux embedded
Pentaplex Operation Simultaneous view / record / playback / backup / remote monitoring
Number of Channels 8
Inputs & Outputs
Video Inputs 8 x PoE
Video Outputs 1 x VGA
1 x HDMI
Audio Input 1 x RCA
Audio Output 1 x RCA
USB 1 x USB (at the back)
1 x USB (at the front)
Video Output Resolution 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768, 800 x 600
PTZ Control Lorex IP PTZ cameras only
Display
Display Split 1, 4 , 8, 9
Live Display Speed 240 NTSC
200 PAL
OSD Controls Configurable
System Navigation USB mouse
Motion Area Setting Adjustable grid (22 x 18)
Sensitivity Levels 100
Firmware Upgrades Automatic over the internet, via USB, and network
User Access By user group
Time Synchronization Auto time sync by NTP server
Recording
Video Compression H.264
Recording Resolution Configurable per camera
Recording Rate 120/100 fps @ 1080p, 240/200 fps @ 720p
Recording Quality Control 6 levels
Recording Schedule By hour / by day / by recording mode / by motion / by channel
Pre Recording Max. 30 seconds
Post Recording Max. 5 minutes
Reliability Watchdog / auto-recovery after power failure
Covert Video Yes
Playback
Playback Channels 1 / 4 / 8
Playback Speed Variable; max. up to 16x
Playback Players Backup Player
Search By time and event
Log Search Up to 1,000 lines for motion detected / configuration changes / connects / disconnects / video loss
Audio Play Yes (with audio cameras)
Storage & Archive
Storage Type Up to 1 x SATA HDD
Storage Capacity Up to 1 x 4TB HDD (2TB installed)
Backup Media USB Flash Drive & HDD
Backup File Format DAV, ASF
Connectivity
Cloud Connectivity Lorex FLIR Cloud
Supported Operating Systems Windows / Mac OS X
Remote Software Configuration Client Software (PC), Safari (Mac)
Email Notification Text with snapshot
Mobile App Support iPad, iPhone, Android
DDNS Free Lorex DDNS
System Configuration Full setup configuration over network
Ports Programmable by user
Network Protocols HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP
Network Interface 1 x RJ-45, 10/100 Base-TX
Network Speed Control 80 Mbs total, 48 to 8192 kb/sec per camera
General Attributes
Power Consumption About 12 W (no HDD included)
Power Supply Voltage 100 to 240 VAC
48 VDC, 2 A, 50 to 60 Hz
Operating Temperature 14 to 131°F / -10 to 55°C
Operating Relative Humidity Range 10 to 90% RH
Dimensions (W x D x H) 10.6 x 8.1 x 1.8" / 26.9 x 20.6 x 4.6 cm
Weight 1.5 lb / 0.7 kg
Packaging Info
Package Weight 18.8 lb
Box Dimensions (LxWxH) 16.0 x 13.0 x 13.0"
The user manual for the Lorex by FLIR LNR110 Series 8-Channel NVR with 2TB LNR1182TC4 can be downloaded in .pdf format if it did not come with your new surveillance kits, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Lorex by FLIR users keep a unique electronic library for Lorex by FLIR surveillance kitss, where you can use our link to download the user manual for the Lorex by FLIR LNR110 Series 8-Channel NVR with 2TB LNR1182TC4.

The user manual lists all of the functions of the Lorex by FLIR LNR110 Series 8-Channel NVR with 2TB LNR1182TC4, all the basic and advanced features and tells you how to use the surveillance kits. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Lorex by FLIR service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Lorex by FLIR LNR110 Series 8-Channel NVR with 2TB LNR1182TC4. User manuals are also available on the Lorex by FLIR website under Surveillance - Surveillance Video - Surveillance Kits.
