User manual for the M-Audio AV 30 Active 2-Way Desktop Monitor MA99006513900
The user manual for the M-Audio AV 30 Active 2-Way Desktop Monitor MA99006513900 provides
necessary instructions for the proper use of the product Pro Audio - Recording - Studio Monitors.

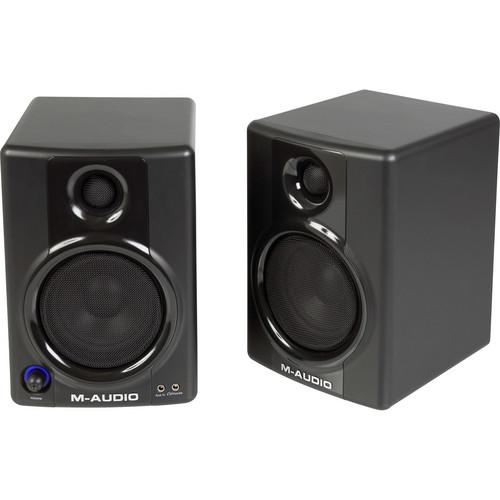

The AV 30 Active 2-Way Desktop Monitor Speakers (Pair) from M-Audio provide high-quality audio for even the smallest of workspaces. Ideal for use with a home or mobile recording studio, the wooden bass-reflex cabinets each feature a 3" polypropylene-coated woofer and a 1" silk dome tweeter to provide a wide frequency response. Internal Class-A/B amplifiers provide 10W of power to each channel for strong performance with low distortion.
The rear panel features a stereo RCA input for wide compatibility with both consumer and professional devices. The front panel offers a 3.5mm aux input for connecting an MP3 player or CD player. OptImage III waveguides on the front baffles help to improve detail and clarity, as well as provide an accurate stereo image. A 3.5mm headphone jack offers private monitoring, while the front-panel volume control lets you make convenient adjustments. The speakers are magnetically shielded for use near video monitors.
|
If you own a M-Audio studio monitors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the M-Audio AV 30 Active 2-Way Desktop Monitor MA99006513900 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the M-Audio AV 30 Active 2-Way Desktop Monitor MA99006513900:
| Type | Active, 2-Way, Bass-Reflex | | Low Frequency Driver | 3" (76mm) Polypropylene Woofer | | High Frequency Driver | 1" (25mm) Silk Dome Tweeter | | Amplifier | 10W/Channel Continuous into 4 Ohms, Class-A/B | | Frequency Range | 90Hz - 20kHz | | Maximum Sound Pressure Level (SPL) | 101.5dB | | Crossover | 3.3kHz | | Signal to Noise Ratio | > 90dB Typical, A-Weighted | | Input Impedance | 10 kOhms, Unbalanced
20 kOhms, Balanced | | Input Sensitivity | 100mV Pink Noise Input for 90dBA SPL, Volume Control at Maximum | | Connectors | Left Speaker:
1 x Stereo RCA Input (2 Jacks, L/R)
1 x 3.5mm Aux Input (Front Panel)
1 x 3.5mm Headphone Jack (Front Panel)
1 x Spring Terminal Output to Right Speaker
Right Speaker:
1 x Spring Terminal Input from Left Speaker | | Controls and Indicators | 1 x Power Switch
1 x Volume Control (Front Panel) | | Indicators | Blue Power LED Ring Around Volume Knob | | Cabinet | Vinyl-Laminated MDF | | Protection | RF Interference, Output Current Limiting, Over Temperature, Turn On/Off, Transient, Subsonic Filter | | Shielded | Yes | | Power | 100-120VAC, 50/60Hz
220-240VAC, 50/60Hz | | Dimensions (HxWxD) | 7.9 x 5.3 x 6.3" (201 x 135 x 160mm) | | Weight | 11.7 lbs (5.3kg) | | Package Weight | 10.8 lb | | Box Dimensions (LxWxH) | 17.4 x 12.6 x 10.7" | |
The user manual for the M-Audio AV 30 Active 2-Way Desktop Monitor MA99006513900 can be downloaded in .pdf
format if it did not come with your new studio monitors, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other M-Audio users keep a unique electronic library
for M-Audio studio monitorss,
where you can use our link to download the user manual for the M-Audio AV 30 Active 2-Way Desktop Monitor MA99006513900.
The user manual lists all of the functions of the M-Audio AV 30 Active 2-Way Desktop Monitor MA99006513900,
all the basic and advanced features and tells you how to use the studio monitors.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from M-Audio service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the M-Audio AV 30 Active 2-Way Desktop Monitor MA99006513900. User manuals are also
available on the M-Audio website under Pro Audio - Recording - Studio Monitors.
