User manual for the M-Audio AV42 Desktop Speakers for Professional Media AV42XUS
The user manual for the M-Audio AV42 Desktop Speakers for Professional Media AV42XUS provides
necessary instructions for the proper use of the product Pro Audio - Recording - Studio Monitors.

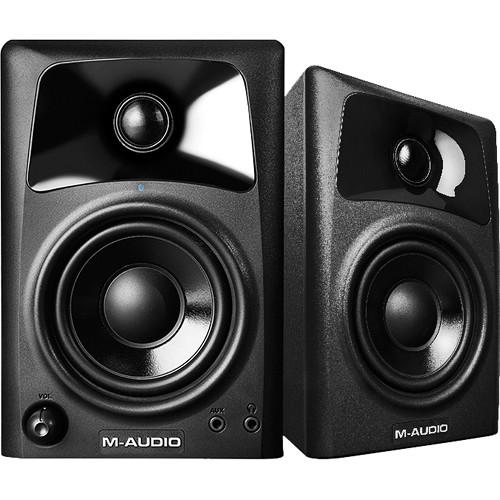

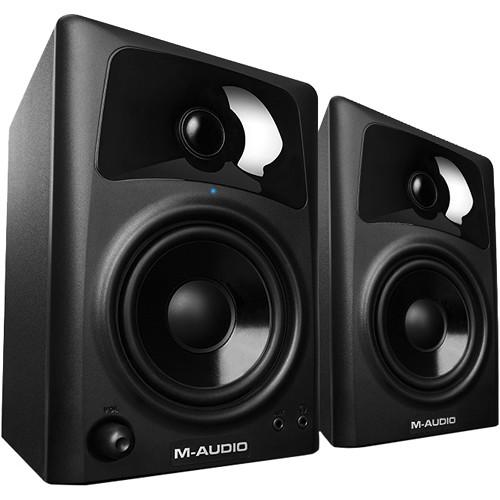

The M-Audio AV42 Desktop Speakers for Professional Media Creation (Pair) use acoustically-inert MDF cabinets to eliminate resonances, and 20W per Channel into 4 ohms per channel into a 4" polypropylene woofer in a bass reflex design. The woofer is complemented by a 1" wave-guided ferrofluid cooled silk dome tweeter to deliver a frequency response of 75 to 20,000 Hz and an RMS SPL level of 101.5 dB at 1 meter.
The rear panel of the monitors feature RCA inputs for connecting gaming systems, DJ gear, mixers and more. A front panel 1/8" (3.5mm) stereo auxiliary input allows for the connection of a laptop, smartphone, or other mobile device. A front panel 1/8" headphone output allows you to monitor directly using headphones. The monitors are suitable for a wide range of professional and consumer applications.
If you own a M-Audio studio monitors and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the M-Audio AV42 Desktop Speakers for Professional Media AV42XUS in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the M-Audio AV42 Desktop Speakers for Professional Media AV42XUS:
| Type || Two-way desktop reference speaker |
| Input Connectors || 2x RCA (left and right line inputs) |
1x 1/8" aux input
| Low Frequency Driver || 4.0" (10.2 cm) polypropylene-coated woofer with high-temperature voice coil |
| High Frequency Driver || 1.0" (2.5 cm) silk cone tweeter |
| Frequency Response || 80 to 20,000 Hz |
| Crossover Frequency || 2.7 kHz |
| RMS Level || 101.5 dB at 1 m |
| SNR || >90 dB (typical, A-weighted) |
| Polarity || Positive signal at "+" input produces outward low-frequency cone displacement |
| Dynamic Power || 20 W per channel at 4 ohm |
| Input Impedance || 10 kilOhm unbalanced |
| Input Sensitivity || 100 mV pink noise input produces 90 dBA output SPL at 1 meter with volume control at maximum |
| Protection || RF interference |
Output current limiting
Turn on/off transient
| Indicators || Blue power LED for aligning wave guide |
| Power Requirements || 100 to 120 V at 50/60 Hz |
200 to 240 V at 50/60 Hz
Powered via detachable 2-conductor line cord
| Cabinet || Vinyl-laminated MDF |
| Dimensions (H x W x D) || 8.75 x 6.0 x 7.25" ( 22.2 x 15.2 x 18.4 cm) |
| Weight || 14.0 lb (6.4 kg) |
| Package Weight || 10.85 lb |
| Box Dimensions (LxWxH) || 16.4 x 12.1 x 10.5" |
