User manual M-Audio M-Track Eight - 8-Input USB Audio Interface MTRACK8XUS

Operating instructions and pdf manual for use - M-Audio M-Track Eight - 8-Input USB Audio Interface MTRACK8XUS User manual, User manual M-Audio M-Track Eight - 8-Input USB Audio Interface MTRACK8XUS, M-Audio, M-Track, Eight, 8-Input, USB, Audio, In


User manual for M-Audio M-Track Eight - 8-Input USB Audio Interface MTRACK8XUS

M-Audio M-Track Eight - 8-Input USB Audio Interface MTRACK8XUS
  • Manufacturer: M-Audio
  • Basic description and contents of package
  • Product classification: Pro Audio - Computer Audio - Audio Interfaces & Systems
  • Safety instructions
  • Startup and operation of the audio interfaces & systems
  • Tips for setting up your M-Audio
  • Settings and expert assistance
  • Contact M-Audio service
  • Troubleshooting
  • Warranty information
  • Price: 399 USD
We recommend checking out our discussion threads on the M-Audio M-Track Eight - 8-Input USB Audio Interface MTRACK8XUS, which address similar problems with connecting and setting up Audio Interfaces & Systems M-Audio.



User manual for the M-Audio M-Track Eight - 8-Input USB Audio Interface MTRACK8XUS

The user manual for the M-Audio M-Track Eight - 8-Input USB Audio Interface MTRACK8XUS provides necessary instructions for the proper use of the product Pro Audio - Computer Audio - Audio Interfaces & Systems.

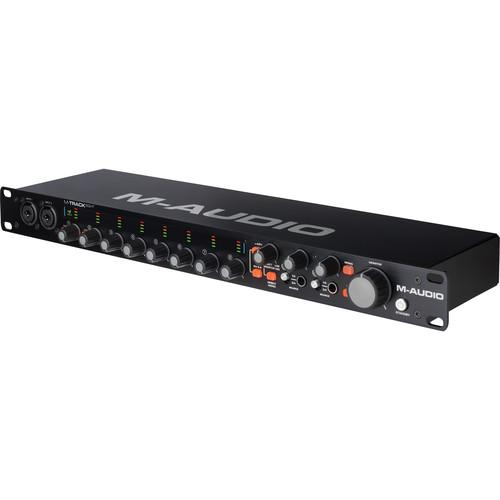

The M-Track Eight from M-Audio is an 8-input USB audio interface that is designed for recording high-quality audio in your home or professional studio. Eight combo XLR+1/4" inputs accommodate a multitude of sources, from phantom-powered microphones, to guitars, to keyboards. Eight balanced 1/4" outputs offer versatile routing to monitoring and outboard equipment, plus it features dual headphone outs with selectable source for separate mixes and monitoring.

M-Track Eight features audio recording with up to 24-bit/96 kHz resolution, and also offers ultra-low latency monitoring of the input signal either through the speakers or headphones. The interface connects to your computer via USB 2.0 and easily integrates into your studio space with its standard 1U 19" rack size.

Cubase 7 LE comes bundled with the M-Track Eight for out-of-the-box music creation, giving you a powerful software environment to record, edit, and mix your songs.
If you own a M-Audio audio interfaces & systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the M-Audio M-Track Eight - 8-Input USB Audio Interface MTRACK8XUS in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
User manual for M-Audio M-Track Eight - 8-Input USB Audio Interface MTRACK8XUSDownload user manual for M-Audio M-Track Eight - 8-Input USB Audio Interface MTRACK8XUS
(PDF file, 2.41 MB)
Additional parameters of the M-Audio M-Track Eight - 8-Input USB Audio Interface MTRACK8XUS:
Microphone Inputs 1-8 (balanced XLR)
Frequency Response 20 Hz - 20 kHz (+0.1 dB)
Dynamic Range 111 dB (A-weighted)
Signal-to-Noise Ratio 111 dB (1 kHz, +4 dBu, A-weighted)
THD 0.002% (1 kHz, +4 dBu, -1 dBFS)
Mic Preamps Preamp EIN: -132 dBu (max gain, 40 Ω source, A-weighted), -126 dBu (max gain, 150 Ω source, unweighted)

Max Input Level: +12 dBu

Sensitivity: -46 dBu

Gain Range: 58 dB



Line Inputs Type: 1–8 (balanced 1/4" TRS)

Frequency Response: 20 Hz – 20 kHz (+0.1 dB)

Dynamic Range: 112 dB (A-weighted)

Signal-to-Noise Ratio: 111 dB (1 kHz, +4 dBu, A-weighted)

THD+N: 0.002% (1 kHz, +4 dBu, -1 dBFS)

Max Input Level: +16 dBu

Sensitivity: -13 dBu

Gain Range: 29 dB



Instrument Inputs Type: 1–2 (unbalanced 1/4" TS)

Frequency Response: 20 Hz – 20 kHz (+0.2 dB)

Dynamic Range: 112 dB (A-weighted)

Signal-to-Noise Ratio: 111 dB (1 kHz, +4 dBu, A-weighted)

THD+N: 0.001% (1 kHz, +4 dBu, -1 dBFS)

Max Input Level: +9 dBu

Sensitivity: -21 dBu

Input Impedance: 1 MΩ

Gain Range: 30 dB



Monitor Output Type:  1–2 (differential-balanced 1/4" TRS)

Frequency Response: 20 Hz – 20 kHz (+0.1 dB)

Dynamic Range:

112 dB (A-weighted)

110 dB (A-weighted, with Dim activated)

THD+N: 0.003% (1 kHz, -1 dBFS)

Maximum Output Level:

+28 dBu

+8 dBu (with Dim activated)





Line Outputs Type: 1–8 (impedance-balanced 1/4" TRS)

Frequency Response: 20 Hz – 20 kHz (+0.1 dB)

Dynamic Range: 113 dB (A-weighted)

THD+N: 0.004% (1 kHz, -1 dBFS)

Maximum Output Level: +10 dBu

Output Impedance: 51 ohm



Power 19 V, 2.37 A, center-positive
Dimensions 19.0 x 5.9 x 1.7" (48.3 x 15.0 x 4.3 cm)
Weight 4.37 lb (1.98 kg)
Packaging Info
Package Weight 6.4 lb
Box Dimensions (LxWxH) 21.4 x 9.5 x 3.7"
The user manual for the M-Audio M-Track Eight - 8-Input USB Audio Interface MTRACK8XUS can be downloaded in .pdf format if it did not come with your new audio interfaces & systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other M-Audio users keep a unique electronic library for M-Audio audio interfaces & systemss, where you can use our link to download the user manual for the M-Audio M-Track Eight - 8-Input USB Audio Interface MTRACK8XUS.

The user manual lists all of the functions of the M-Audio M-Track Eight - 8-Input USB Audio Interface MTRACK8XUS, all the basic and advanced features and tells you how to use the audio interfaces & systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from M-Audio service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the M-Audio M-Track Eight - 8-Input USB Audio Interface MTRACK8XUS. User manuals are also available on the M-Audio website under Pro Audio - Computer Audio - Audio Interfaces & Systems.
