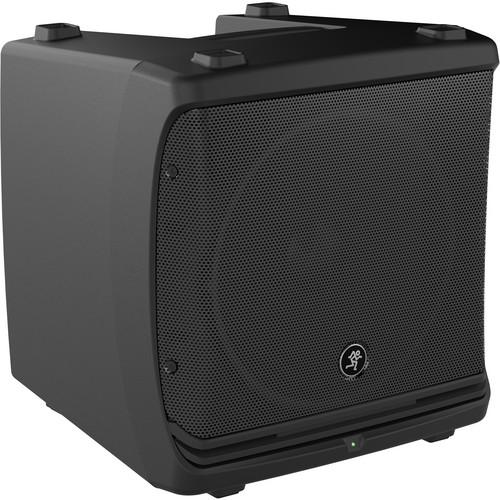

The Mackie DLM12 Full-Range 12" Powered Loudspeaker delivers 1,000 watts of program power and 2,000 watts of peak power in a compact, portable design. It features TruSource driver technology, incorporating a 12" low-frequency driver and a 1.75" compression driver into a common-magnet design. The TruSource DSP delivers clarity, consistent dispersion and high fidelity sound.
The DLM12 features an integrated DL2 digital mixer, a 2-channel mixer with a versatile connection options. It also includes 3-band EQ, 16 effects presets, feedback destroyer, 6 speaker modes, and Smart Protect technology.
The DLM12 can be pole or wall mounted. An integrated kickstand allows use as a wedge-style monitor. M10 mounting points allow it to be used in fly installs as well.
|
If you own a Mackie pa speakers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Mackie DLM12 Full-Range 12" Powered Loudspeaker DLM12 in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Mackie DLM12 Full-Range 12" Powered Loudspeaker DLM12:
Active or Passive | Active, Class D amplification | Power Capacity | 1,000W RMS 2,000W peak | Low Frequency Driver | 12" (305 mm) woofer 2.5" (64 mm) voice coil diameter Paper diaphragm Ferrite magnet | High Frequency Driver | 1.75" (44 mm) compression driver 1" (25 mm) horn entry diameter Polyimide film diaphragm Ferrite magnet | Frequency Response | 38 Hz to 20 kHz (-10 dB) | Maximum Sound Pressure Level (SPL) | 128 dB @1 m, calculated | Crossover | 1.6 kHz | Dispersion | 90° conical | Equalization | Low shelving: ±15 dB @ 80 Hz Mid-peaking: ±15 dB @ 2.5 kHz High shelving: ±15 dB @ 12 kHz Increments: ±3 dB | Amplifier Power | Low Frequency Amplifier: 500W RMS, 1,000W peak Rated THD: < 1% Cooling: multi-speed fan Class D design
High Frequency Amplifier: 500W RMS, 1,000W peak Rated THD: < 1% Cooling: multi-speed fan Class D design | Audio Inputs | 1 x XLR/TRS combo - Channel 1 (XLR is mic/line switchable) 1 x XLR/TRS combo - Channel 2 (TRS is a Hi-Z input) 2 x RCA phono - Channel 2 (1 x L/R) | Input Impedances | Channel 1: Mic: 3.3kΩ balanced Line: 20kΩ balanced, 10kΩ unbalanced 1/4" TRS: 16kΩ balanced, 8kΩ unbalanced
Channel 2: XLR Line: 20kΩ balanced, 10kΩ unbalanced 1/4" TRS [Hi-Z instrument]: 1MΩ unbalanced RCA: 25kΩ unbalanced | Audio Output | 1 x XLR - Thru (switchable output, channel 1 or mix) | Mixer Section | DL2 Digital Mixer System Processing: EQ: 6 speaker modes Alignment delay: 0 to 300 ms FX: 16 presets Multi-band feedback destroyer: On / Off / Clear / Hold Memory: 3 locations for instant venue setting recall and factory reset | Power Requirements | 100 to 120VAC or 220 to 240VAC, 50/60 Hz, 250W | AC Plug Style | 3-pin IEC 250VAC | Operating Temperature Range | 32 to 104°F (0 to 40°C), extended ambient temperature | Construction | PC-ABS cabinet High durability black paint finish Top handle Powder-coated 20 gauge steel grille Three M10 x 17 mm fly points 50° monitor angle (using integrated kickstand) | Mounting Options | Pole mount, wall mount or fly via three integrated M10 x 17 mm mounting points | Dimensions (H x W x D) | 15.9 x 15.3 x 14.3" (403 x 389 x 363 mm) | Weight | 31 lb (14.1 kg) | Package Weight | 37.0 lb | Box Dimensions (LxWxH) | 20.0 x 20.0 x 19.5" | |
