User manual Mackie FreePlay Battery-Powered Stereo PA Starter Kit

Operating instructions and pdf manual for use - Mackie FreePlay Battery-Powered Stereo PA Starter Kit User manual, User manual Mackie FreePlay Battery-Powered Stereo PA Starter Kit, Mackie, FreePlay, Battery-Powered, Stereo, PA, Starter, Kit,

User manual for Mackie FreePlay Battery-Powered Stereo PA Starter Kit

Mackie FreePlay Battery-Powered Stereo PA Starter Kit
  • Manufacturer: Mackie
  • Basic description and contents of package
  • Product classification: Pro Audio - Live Sound - Portable PA Systems
  • Safety instructions
  • Startup and operation of the portable pa systems
  • Tips for setting up your Mackie
  • Settings and expert assistance
  • Contact Mackie service
  • Troubleshooting
  • Warranty information
  • Price: 550 USD
We recommend checking out our discussion threads on the Mackie FreePlay Battery-Powered Stereo PA Starter Kit, which address similar problems with connecting and setting up Portable PA Systems Mackie.


User manual for the Mackie FreePlay Battery-Powered Stereo PA Starter Kit

The user manual for the Mackie FreePlay Battery-Powered Stereo PA Starter Kit provides necessary instructions for the proper use of the product Pro Audio - Live Sound - Portable PA Systems.

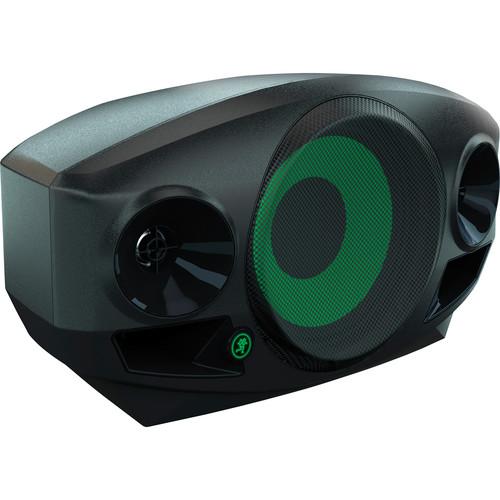

The Mackie FreePlay Battery-Powered Stereo PA Starter Kit from B&H comes with everything you need to start building your sound reinforcement rig for small parties and events. The kit comes with the Mackie FreePlay Battery-Powered PA, carry bag for FreePlay, a kickstand/pole mount, lithium ion battery, steel speaker stand and a speaker stand bag.
If you own a Mackie portable pa systems and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Mackie FreePlay Battery-Powered Stereo PA Starter Kit in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Mackie FreePlay Battery-Powered Stereo PA Starter Kit:
Specifications
  • Mackie FreePlay Battery-Powered Stereo PA Solution
    iOS Requires iOS or later
    Supports iPhone 6 Plus, iPhone 6, iPhone 5S, iPhone 5C, iPhone 5, iPhone 4S, and iPod touch (5th generation)
    Acoustic Specifications
    Frequency Response 65 to 20,000 Hz (-10 dB)
    80 to 20,000 Hz (-3 dB)
    Max Peak SPL 114 dB
    Crossover Point 3,000 Hz
    Dispersion 90°
    Equalization Low-Shelving: ±15 dB at 80 Hz
    Mid-Peaking: ±15 dB at 2,500 Hz
    High-Shelving: ±15 dB at 12,000 Hz
    Increments: ±3 dB
    High Frequency Drivers Voice Coil Diameter: 1.0" (25.0 mm)
    Horn Entry Diameter: 1.0" (25.0 mm)
    Diaphragm Material: Polyethylene Naphthalate (PEN)
    Magnet Material: Ferrite
    Low Frequency Driver Woofer Diameter: 8.0" (203.0 mm)
    Voice Coil Diameter: 1.2" (30.0 mm)
    Diaphragm Material: Treated paper
    Magnet Material: Ferrite
    Power Amplifier
    Rated Power 150 W RMS
    300 W peak
    LF Amplifier Power Rated Power: 75 W RMS, 150 W peak
    Rated THD: 1%
    Cooling: Convection
    Design: Class D
    HF Amplifier Rated Power: 2x 37 W RMS, 2x 75 W peak
    Rated THD: 1%
    Cooling: Convection
    Design: Class D
    Processing
    Channel EQ 3-Band
    Modes 4 voicing
    Effects 16 presets
    Feedback Destroyer: on/off
    I/O
    Impedance XLR: 10 kOhms balanced
    1/4" TRS: 100 kOhms balanced
    1/4" TS: 400 kOhms unbalanced
    1/8": 10 kOhms
    Monitor Output 1/4" TRS balanced
    Power
    Line Cord Detachable
    100 to 240 VAC, 50/60 Hz input, 1.5 A
    20 VDC output, 3.25 A
    AC Input IEC 60320 C7
    Operating Temperature 32 to 104°F (0 to 0°C)
    Safety and Regulatory
    Input Protection Peak and rms limiting, power supply and amplifier thermal protection
    LEDs Defeatable front power ON,
    Rear channel input OL (Overload)
    Status Input and output levels
    Battery level
    FX on/off and level
    Feedback Destroyer on/off
    EQ speaker voicing on/off
    Battery
    Type Lithium-ion
    Capacity 5200 mAh
    Run Time Approximately 10 hours
    Nominal Voltage 7.4 VDC
    Operating Temperature Range -4 to 140°F (-20 to 60°C)
    Charging Temperature 32 to 104°F (0 to 40°C)
    Bluetooth
    Protocol 3.0
    Function Audio streaming and user interface control
    Physical
    Cabinet PC-ABS
    Finish High-durability black paint
    Handles One on top
    Grille Powder-coated 21-gauge steel
    Dimensions (H x W x D) 9.5 x 17.8 x 9.1" (241 x 452 x 231 mm)
    Monitor Angle 45° (using optional kickstand)
    Weight 11 lb (5 kg)
    Packaging Info
    Box Dimensions (LxWxH) 21.0 x 12.6 x 12.0"
  • Mackie Carry Bag for FreePlay Personal PA System
    Packaging Info
    Box Dimensions (LxWxH) 17.4 x 15.6 x 9.5"
  • Mackie Kickstand/Pole Mount for FreePlay PA System
    Packaging Info
    Box Dimensions (LxWxH) 10.3 x 8.9 x 4.3"
  • Mackie Lithium Ion Battery for FreePlay PA System
    Capacity 5200 mAh
    Nominal Voltage 7.4 VDC
    Operating Temperature 4 to 140°F (-20 to 60°C)
    Charging Temperature 32 to 104°F (0 to 40°C)
    Packaging Info
    Box Dimensions (LxWxH) 7.9 x 3.7 x 2.3"
  • Auray SS-4420 Steel Speaker Stand
    Height Range 46 - 76" (118 - 194 cm)
    Maximum Load Capacity 100 lb (45.36 kg)
    Mount Size 1-3/8", 1-1/2" with adapter
    Construction Steel
    Weight 8 lb (3.6 kg)
    Packaging Info
    Box Dimensions (LxWxH) 39.5 x 5.3 x 5.0"
  • Gator Cases GPA-50 Speaker Stand Bag
    Material 600 denier nylon
    Type of Closure Zipper
    Exterior Dimensions 52 x 16 x 2.0" (132.08 x 40.64 x 5.08cm) (LxWxH)
    Carrying/Transport Options Carrying strap
    Web handles
    Weight 2.0 lbs (907g)
    Packaging Info
    Box Dimensions (LxWxH) 17.5 x 15.5 x 0.5"
The user manual for the Mackie FreePlay Battery-Powered Stereo PA Starter Kit can be downloaded in .pdf format if it did not come with your new portable pa systems, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Mackie users keep a unique electronic library for Mackie portable pa systemss, where you can use our link to download the user manual for the Mackie FreePlay Battery-Powered Stereo PA Starter Kit.

The user manual lists all of the functions of the Mackie FreePlay Battery-Powered Stereo PA Starter Kit, all the basic and advanced features and tells you how to use the portable pa systems. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Mackie service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Mackie FreePlay Battery-Powered Stereo PA Starter Kit. User manuals are also available on the Mackie website under Pro Audio - Live Sound - Portable PA Systems.
