User manual Mackie Mix5 - 5-Channel Compact Mixer MIX5

Operating instructions and pdf manual for use - Mackie Mix5 - 5-Channel Compact Mixer MIX5 User manual, User manual Mackie Mix5 - 5-Channel Compact Mixer MIX5, Mackie, Mix5, 5-Channel, Compact, Mixer, MIX5, Video


User manual for Mackie Mix5 - 5-Channel Compact Mixer MIX5

Overall rating 4.5
Overall Rating: 4.5

90% of respondents would recommend this to a friend.
Mackie  Mix5 - 5-Channel Compact Mixer MIX5
  • Manufacturer: Mackie
  • Basic description and contents of package
  • Product classification: Pro Audio - Recording - Analog Recording Mixers
  • Safety instructions
  • Startup and operation of the analog recording mixers
  • Tips for setting up your Mackie
  • Settings and expert assistance
  • Contact Mackie service
  • Troubleshooting
  • Warranty information
  • Price: 50 USD
We recommend checking out our discussion threads on the Mackie Mix5 - 5-Channel Compact Mixer MIX5, which address similar problems with connecting and setting up Analog Recording Mixers Mackie.



User manual for the Mackie Mix5 - 5-Channel Compact Mixer MIX5

The user manual for the Mackie Mix5 - 5-Channel Compact Mixer MIX5 provides necessary instructions for the proper use of the product Pro Audio - Recording - Analog Recording Mixers.

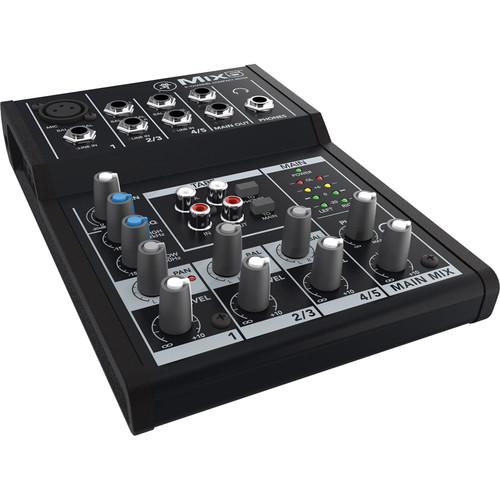

The Mackie Mix5 is a 5-channel compact mixer that features high-quality components, a rugged metal chassis, and is designed for a variety of sound reinforcement applications. The mixer features one mic/line input, two stereo 1/4" line inputs, and is capable of accommodating dynamic and condenser microphones, keyboards, DJ setups, portable music players, and more.

The mic/line input is equipped with XLR and 1/4" connectors, phantom power, a 2-band EQ, pan, level control and an LED overload indicator. Each of the two stereo 1/4" line inputs features a 3-band EQ, balance control, level control, and an LED overload indicator.
If you own a Mackie analog recording mixers and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Mackie Mix5 - 5-Channel Compact Mixer MIX5 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Mackie Mix5 - 5-Channel Compact Mixer MIX5:
Specifications
    Noise (20 Hz – 20 kHz bandwidth, , 150 ohms source impedance, EIN)

    All outputs, master levels and channel levels off –100 dBu

    All outputs, master levels unity, all channel levels off –90 dBu

    All outputs, master levels unity, 1 channel level unity –85 dBu





    THD+N (20 Hz – 30 kHz bandwidth)

    Mic input to main output  <0.25% @ +4 dBu output





    Attenuation and Crosstalk (20 Hz – 20 kHz bandwidth)

    Inputs to outputs @1 kHz  (-85 dB)

    Main mix off @1 kHz (-75 dB)





    Frequency Response Mic Input to Any Output (Gain at Unity): +0, –1 dB, 20 Hz to 30 kHz





    Equivalent Input Noise -125 dBu, (mic in to insert send out, max gain)
    Common Mode Rejection Ratio 1 kHz better than –70 dB,  (mic in to insert send out, max gain)
    Impedance Mic In: 2 kOhms

    All Other Inputs: 10 kOhms or greater

    Tape Out : 1 kOhms

    Phones: 22 ohms

    All Other Outputs: 120 ohms unbalanced,  240 ohms balanced





    Maximum Level Mic Inputs (XLR):  +19 dBu

    Aux Return In:  +16 dBu [Mix 8]

    All Other Inputs:  +21 dBu

    All Outputs: +21 dBu





    Equalization High Shelving:  ±15 dB @ 12 kHz

    Low Shelving:  ±15 dB @ 80 Hz







    Power Requirements Power Connection:  2-pin DC connector [US], 3-pin DC connector [EU]

    Input: 120 VAC, 60 Hz [US], 230 VAC, 50/60 Hz [EU]

    Output: 18 VAC, 600 mA





    Dimensions 1.7 x  5.5 x 7.7"  (43 x  140 x 196 mm)







    Weight 1.4 lb (0.6 kg)
    Packaging Info
    Package Weight 2.65 lb
    Box Dimensions (LxWxH) 11.5 x 6.6 x 3.3"
    The user manual for the Mackie Mix5 - 5-Channel Compact Mixer MIX5 can be downloaded in .pdf format if it did not come with your new analog recording mixers, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Mackie users keep a unique electronic library for Mackie analog recording mixerss, where you can use our link to download the user manual for the Mackie Mix5 - 5-Channel Compact Mixer MIX5.

    The user manual lists all of the functions of the Mackie Mix5 - 5-Channel Compact Mixer MIX5, all the basic and advanced features and tells you how to use the analog recording mixers. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Mackie service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Mackie Mix5 - 5-Channel Compact Mixer MIX5. User manuals are also available on the Mackie website under Pro Audio - Recording - Analog Recording Mixers.
