User manual for the Mackie ProFX30v2 30-Channel Sound Reinforcement Mixer PROFX30V2
The user manual for the Mackie ProFX30v2 30-Channel Sound Reinforcement Mixer PROFX30V2 provides
necessary instructions for the proper use of the product Pro Audio - Recording - Analog Recording Mixers.

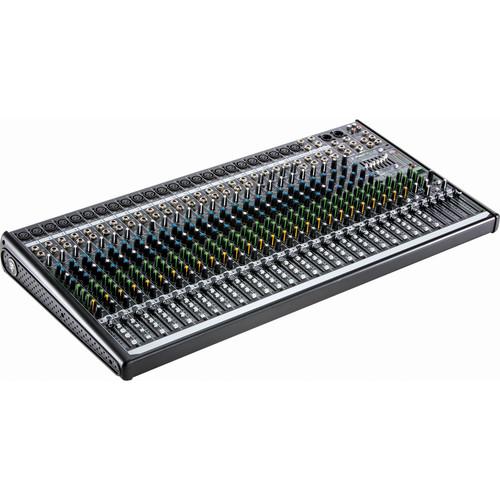

The ProFX30v2 30-channel mixing console from Mackie features a built-in effects engine, and is ideal for a plethora of live sound reinforcement applications ranging from live bands and DJs to lecturers and presenters. With 24 XLR mic inputs with low-noise Vita microphone preamps, per channel 3-band EQ, 3 aux sends, and an FX out for feeding external processors, the ProFX30v2 offers professional features to suit a wide variety of configurations.
In addition to the mic inputs, the ProFX30v2 includes 30 line inputs for connecting keyboards, samplers, and other gear. There is also an RCA tape input and output for connecting portable music players similar devices. In addition, the mixer has rugged 60mm faders for all input channels, return and main/monitor masters.
The ProFX30v2's effects engine offers 16 different effects, including reverbs, delays, and choruses. It also features a 7-band graphic EQ that can be used for tuning mains or monitors, and a built-in USB interface that can be used to record the show or provide music playback via Mac or Windows computer.
If you own a Mackie analog recording mixers and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Mackie ProFX30v2 30-Channel Sound Reinforcement Mixer PROFX30V2 in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Mackie ProFX30v2 30-Channel Sound Reinforcement Mixer PROFX30V2:
Specifications
Equivalent Input Noise
150 ohm source impedance, 20 Hz to 20 kHz: Mic in to insert send out, max gain -128 dBu
Residual Output Noise
All outputs, master levels off, all channel levels off: -95 dBu All outputs, master levels unity, one channel level unity: -85 dBu
Frequency Response
Mic input to any output (gain at unity, +0 dB / -1 dB): 20 Hz to 40 kHz
THD+N
22 Hz to 80 kHz bandwidth: Mic in to Main out (+4 dBu output): < 0.01%
Attenuation and Crosstalk
Adjacent Inputs @ 1 kHz: -90 dB Inputs to Outputs @ 1 kHz: -80 dB Fader Off @ 1 kHz: -75 dB Mute Switch / Break Switch Mute @ 1 kHz: -100 dB
Common Mode Rejection Ratio
Mic In to Main Out, max gain, 1 kHz: 70 dB
Maximum Level
All inputs: +22 dB Main Out XLR: +28 dBu All other outputs: +22 dBu
Impedance
Mic In 3.3 kOhms Channel Insert Return 10 kOhms All other inputs ≥ 20 kOhms Tape output 1 kOhms Phones output 25 ohms All other outputs 120 ohms unbalanced, 240 ohms balanced
Equalization
Mono Channels: Low ±15 dB @ 80 Hz Mid ±15 dB @ 100 Hz - 8 kHz High ±15 dB @ 12 kHz Low Cut Filter 18 dB/octave @ 100 Hz
Stereo Channels Low ±15 dB @ 80 Hz Mid ±15 dB @ 2.5 kHz High ±15 dB @ 12 kHz
Maximum Voltage Gain
Mic Input Channel to: Insert Output: 50 dB Tape Output: 60 dB USB Output: 60 dB 1/4" Main Output: 70 dB XLR Main Output: 76 dB Monitor Send: 81 dB FX Send: 90 dB
Mono Line Input Channel to: Insert Output: 30 dB Tape Output: 40 dB USB Output: 40 dB XLR Main Output: 56 dB Monitor Send: 61 dB FX Send: 70 dB
Stereo Line Input Channel to: Tape Output: 30 dB USB Output: 30 dB
XLR Main Output: 46 dB Monitor Send: 51 dB FX Send: 55 dB
Tape Input to: XLR Main Output: 36 dB
USB Input to: XLR Main Output: 36 dB
Stereo Return to: Mon Output: 30 dB XLR Main Output: 26 dB
Digital Effects
I/O: mono input / stereo output Number of Presets: 16
Meters
Main L/R Mix: Two columns of 12 segments each: OL (+20 dBu), +15, +10, +6, +3, 0 (0 dBu), -2, -4, -7, -10, -20, -30
Channel OL LED: Measured post-EQ, pre-fader (-3 dB before channel clipping): 18 dBu
Graphic EQ
Frequency Centers [7-Band]: 125, 250, 500, 1k, 2k, 4k, 8k Gain: ±15 dB Assignable to Main or Monitor, bypassable
USB
USB Recording to Computer (Mac & PC)
Phantom Power
48 VDC to all mic channels simultaneously
AC Power Requirements
Power Consumption: 50 watts Universal AC Power Supply: 100 - 240 VAC, 50 - 60 Hz Class II Detachable Line Cord: Yes
