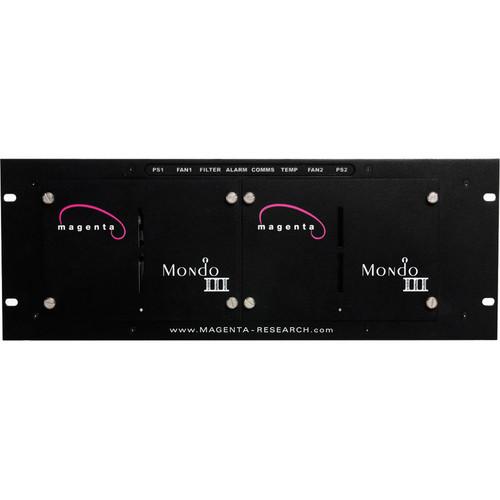

The Mondo III 16 x 16 Full Matrix UTP Switch 4U Frame from Magenta Research is a full-matrix switching and UTP extension platform, capable of switching and extending high definition video, stereo audio, and addressable duplex serial signals in one switching platform. The Mondo III is a modular platform which is scalable from 16 x 16 to a switching capacity of 256 x 512. It allows for additional inputs to be added in the field in increments of 16. The addressable duplex serial capability enables digital signage applications to collect individual display data and metrics in addition to independent control over each display. The Mondo III is compatible with all MultiView products, and enables the extension of 1920 x 1200 video, stereo audio and serial signals over a range of 1200ft.

The Mondo Matrix III can be programmed and controlled using the onboard touch-screen, Windows HyperTerminal, Magenta's Mondo Matrix Control Software, or other control systems. The Mondo III also supports the option to integrate video inputs directly into a switch. The Mondo Direct option eliminates the need for separate MultiView transmitters. The Mondo III includes front-panel indicator lights, allowing switch operators to check status on the unit's power supplies, fans, filter and temperature at a glance. The Mondo III also features a replaceable air filter, two DB9 serial connections, redundant power supplies and a backlit 2 x 16 character LCD designed to aid in configuration and diagnostics.
If you own a Magenta Research video extenders & repeaters and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Magenta Research Mondo III 16 x 16 Full Matrix 223R3001-16X16 in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Magenta Research Mondo III 16 x 16 Full Matrix 223R3001-16X16:
Input Connectors 16 x RJ45, UTP female
1 x 10 position Phoenix (compatible with Mondo II 7-position Phoenix)
Output Connectors 16 x RJ45, UTP female
1 x 10 position Phoenix (compatible with Mondo II 7-position Phoenix)
Video Support RGBHV, Component, Y/C, Composite
Loop Output Connector 16 x RJ45, UTP female
Resolution and Refresh MultiView Receiver Dependent
Required Impedance MultiView Transmitter/Receiver Dependent
Audio Support MultiView Transmitter/Receiver Dependent
Serial Support RS-232/RS-422
Cables Supported Category 5, 5e and 6 Shielded Twisted-Pair (STP) or Unshielded Twisted-Pair (UTP) or skew-free cable.
Protocol To switch: RS232 /RS422, Selectable; 9600 baud standard
Between master and slave frames: RS485
Auxiliary Input (Optional)DB9-female, RS-232 interface All input to output switching commands are received and processed by the master frame. Additional frames used within the matrix are connected in a daisy chain and receive processed complex routing commands from the master frame.
Rear Panel 2 x 16 LCD display
4 x push button
Compliance CE; FCC Class A Safety: EN60950
Temperature Tolerance Operating: 0° to 100°F (0° to 37°C)
Storage: 40° to 158°F (-40° to 70°C) 10% to 90% non-condensing
Humidity Tolerance Up to 80% Non-Condensing
Mounting Rack Mount Standard
Enclosure Powder coat chassis, passivated aluminum
Power 90 - 264 V, 50 - 60 Hz
Max Power Consumption 150 W
Dimensions (H x W x D) 6.7 x 19 x 10.5" (170 x 483 x 267 mm)
Weight 17 lb (7.7 kg) (fully populated)
