User manual for the MagiCue 10.1" Wireless Monitor with DVR MAQ-FPV-10W

The user manual for the MagiCue 10.1" Wireless Monitor with DVR MAQ-FPV-10W provides necessary instructions for the proper use of the product Camcorders - Aerial Imaging & Drones - FPV (First Person View) Components.

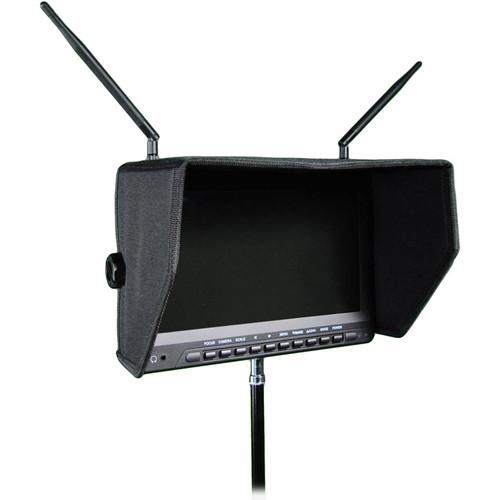

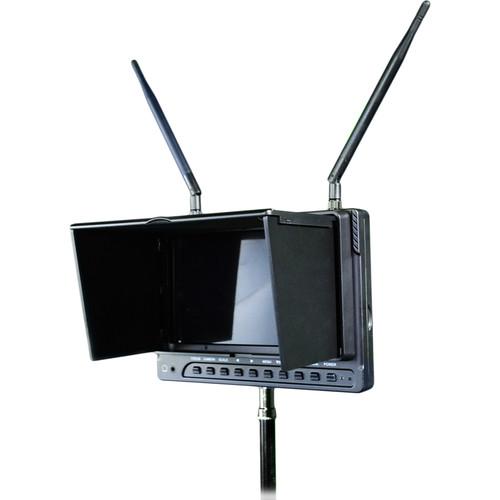

The 10.1" Wireless Monitor with DVR is designed for use with wireless teleprompting equipment from MagiCue, such as their MAQ-MAX-2000T transmitter. Featuring a built-in 32-channel analog video receiver, it is also suitable for use with many third-party wireless systems including aerial-mounted FPV transmitters. Its 10.1" LED backlit LCD screen features a native resolution of 1024 x 600 and it includes HDMI and composite video inputs along with its wireless connectivity. There is also a composite loop-out for connection a secondary display, such as FPV goggles.

The monitor includes a built-in DVR, which records incoming RF video signals in the AVI file type. You can set the DVR to record at D1 (720 x 576), VGA (640 x 480), and QVGA (320 x 240) resolutions for either optimizing video quality or saving storage space. A microSD card slot is built-in and can handle microSD cards up to 32 GB of capacity. The loop recording feature allows you to choose time intervals for recording specific chunks of video and it automatically overwrites previously recorded content when the interval is finished. The DVR component also has a motion detection function, which automatically records when it detects a moving object.

The monitor includes an integrated 2200 mAh battery that is estimated to last two hours. Additionally, a collapsible sun shade comes in the box to help enhance visible in bright sunlight.
If you own a MagiCue fpv (first person view) components and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the MagiCue 10.1" Wireless Monitor with DVR MAQ-FPV-10W in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the MagiCue 10.1" Wireless Monitor with DVR MAQ-FPV-10W:
Specifications
    Display
    Size 10.1"
    Panel Type LED backlit TFT LCD
    Resolution 1024 x 600
    Aspect Ratio 16:9
    Brightness 450 nits
    Contrast Ratio 700:1
    Response Time 10 ms
    Viewing Angle Left / Right: 75°
    Up / Down: 75°
    Dot Pitch Width x Height: 0.05 x 0.15mm
    Supported Formats
    Supported Standards PAL (4.43)
    NTSC (3.58)
    Supported Resolutions 50/60 Hz: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Connectivity
    Inputs 1 x HDMI (standard)
    1 x Composite on RCA connector
    1 x Mono audio on RCA connector
    Outputs 1 x Composite on RCA connector
    1 x 3.5 mm headphone jack
    1 x Speaker
    USB 1 x Mini-USB
    Receiver
    Frequency 5.8 GHz
    Number of Channels 32 / 4 bands
    Range Up to 1312' / 400 m line of sight
    Receive Sensitivity -90 dBm typical
    Frequency Stability ±100 ppm
    DVR
    Recording Resolution 720 x 576 (D1)
    640 x 480 (VGA)
    320 x 240 (QVGA)
    Recording Modes Continuous Recording
    Motion Detection Recording
    Still Photo Capture
    Loop Recording: 3, 5, and 10 minute intervals
    Recording Media MicroSD/SDHC card up to 32 GB in capacity
    General
    Mounting 1/4"-20 threaded socket
    VESA 75 x 75 cm
    Battery Voltage:7.4 VDC
    Capacity: 2200 mAh
    Operating Temperature -4 to 122°F / -20 to 50°C
    Storage Temperature -22 to 149°F / -30 to 65°C
    Dimensions 9.5 x 8.1 x 2.1" / 24.1 x 20.6 x 5.3 cm
    Weight 1.4 lb / 639.6 g
    Packaging Info
    Package Weight 3.4 lb
    Box Dimensions (LxWxH) 11.339 x 10.63 x 2.835"
    The user manual for the MagiCue 10.1" Wireless Monitor with DVR MAQ-FPV-10W can be downloaded in .pdf format if it did not come with your new fpv (first person view) components, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other MagiCue users keep a unique electronic library for MagiCue fpv (first person view) componentss, where you can use our link to download the user manual for the MagiCue 10.1" Wireless Monitor with DVR MAQ-FPV-10W.

    The user manual lists all of the functions of the MagiCue 10.1" Wireless Monitor with DVR MAQ-FPV-10W, all the basic and advanced features and tells you how to use the fpv (first person view) components. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from MagiCue service.

    If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the MagiCue 10.1" Wireless Monitor with DVR MAQ-FPV-10W. User manuals are also available on the MagiCue website under Camcorders - Aerial Imaging & Drones - FPV (First Person View) Components.
