User manual for the Manfrotto MK190XPRO3-3W Aluminum Tripod with 3-Way MK190XPRO3-3W
The user manual for the Manfrotto MK190XPRO3-3W Aluminum Tripod with 3-Way MK190XPRO3-3W provides
necessary instructions for the proper use of the product Photography - Tripods & Support - Tripods with Heads.

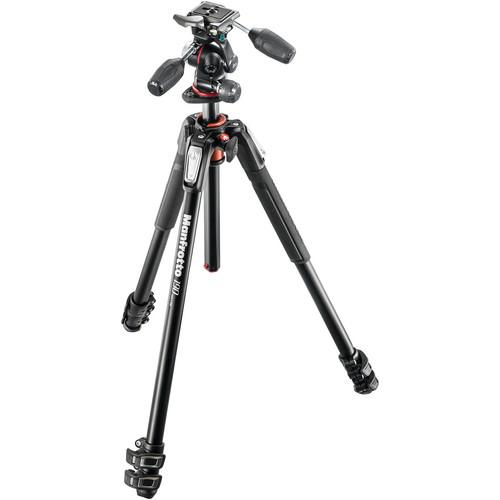

The Manfrotto MK190XPRO3-3W Aluminum Tripod with 3-Way Pan/Tilt Head combines the MT190XPRO3 tripod legs with the MHXPRO-3W 3-way pan/tilt head. The tripod has a load capacity of 13.2 lb, extends up to 68.1", and folds down to 28.4" for transport.
The Quick Power Lock System allows you to completely extend the tripod legs with one hand. Once set up, you can use the tripod's rapid center column in standard vertical mode or swing it into horizontal position like a boom with Manfrotto's 90° column feature to get your camera down to only 3.5" above the ground. You can attach an extending arm or bracket to hold lights or reflectors via the Easy Link plug built into the tripod's spider.
The MHXPRO-3W atop of the tripod is a compact pan/tilt head with retractable handles that can be extended as needed. Two knobs control the friction for the front-to-back and side-to-side tilt, allowing you to fine tune the movements based on the weight of your gear. Three leveling bubbles ensure your composition is level on all axes. A 200PL quick-release plate with a 1/4"-20 camera mounting screw is included.
|
If you own a Manfrotto tripods with heads and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Manfrotto MK190XPRO3-3W Aluminum Tripod with 3-Way MK190XPRO3-3W in the following formats:
- *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
|
Additional parameters of the Manfrotto MK190XPRO3-3W Aluminum Tripod with 3-Way MK190XPRO3-3W:
| Load Capacity | 13.2 lb (6 kg) | | Maximum Height | 68.1" (173 cm) | | Maximum Height w/o Column Extended | 58.3" (148 cm) | | Minimum Height | 3.5" (9 cm) | | Folded Length | 28.4" (72 cm) | | Weight | 6.6 lb (3 kg) | | Head Type | 3-way pan/tilt | | Quick Release | Yes, 200PL | | Dimensions | With handles retracted: 5.3 x 5.3 x 5.1" (13.5 x 13.5 x 13.0 cm) | | Friction Control | Yes | | Separate Panning Lock | Yes | | Bubble Level | Yes | | Tripod Mount Thread Size | 3/8"-16 | | Camera Mount Thread Size | 1/4"-20 | | Height | 5.1" (13 cm) | | Weight | 2.2 lb (1 kg) | | Material | Aluminum alloy | | Load Capacity | 15.4 lb (7 kg) | | Maximum Height | 63" (160 cm) | | Maximum Height without Column Extended | 53.2" (135 cm) | | Minimum Height | 3.5" (9 cm) | | Folded Length | 23.2" (59 cm) | | Head Attachment Fitting | 3/8"-16 | | Leg Stages / Sections | 2 / 3 | | Leg Lock Type | Flip | | Independent Leg Spread | Yes | | Feet | Rubber | | Center Brace | No | | Weight | 4.4 lb (2 kg) | | Center Column Type | Rapid, 90° horizontal positioning | | Center Column Sections | 1 | | Bubble Level | Yes, 360° rotating | | Package Weight | 8.2 lb | | Box Dimensions (LxWxH) | 30.0 x 6.0 x 6.0" | |
