User manual for the Marshall Electronics 7" LCD On-Camera V-LCD70XHB-3GSDI-SM
The user manual for the Marshall Electronics 7" LCD On-Camera V-LCD70XHB-3GSDI-SM provides
necessary instructions for the proper use of the product Professional Video - Monitors - On Camera Monitors.

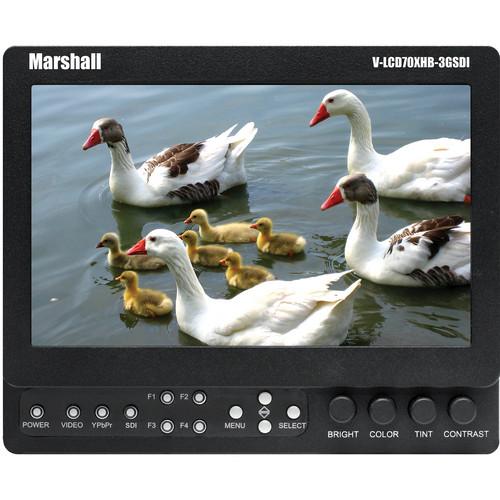

The Marshall Electronics 7" LCD On-Camera Monitor (Sony M Series) delivers high-quality images at a resolution up to 800 x 480 pixels, and features a luminance of 800cd/m² and a contrast ratio of 800:1 to produce sharper images by displaying the finer elements of a picture.
Equipped with pixel-to-pixel mode, the Field / Camera-Top LCD Monitor displays images in their native resolution by avoiding the internal scaling function. With aspect ratio settings, you can precisely monitor different aspect ratios in 16:9, and 4:3 modes.
With RGB bias and gain function, the LCD monitor allows for fine-tuning of color balance levels and facilitates color matching with other types of monitors. False color filter helps set the camera exposure, and peaking filter assists the user in focusing and obtaining the sharpest picture. Other features of the 7" Field / Camera-Top LCD Monitor include adjustable backlight and markers, manual gamma adjustment, image flip, and RGB check field / field detect. The unit has rugged metal front panel and 4 user-configurable buttons that provide fast access to various settings and functions.
An optical grade polycarbonate screen protection ensures that the LCD has a scratch-proof screen. The display unit includes a user-replaceable battery adaptor - SM (Sony M Series), 1/4"-20 mounting on all sides, 4-pin XLR power jack, and a robust power switch.
