User manual for the Marshall Electronics CV345-CSB 2.5MP 3G-SDI/HDMI CV345-CSB

The user manual for the Marshall Electronics CV345-CSB 2.5MP 3G-SDI/HDMI CV345-CSB provides necessary instructions for the proper use of the product Professional Video - POV Cameras.

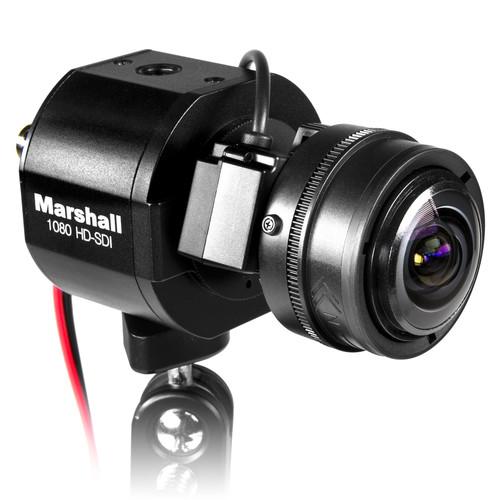

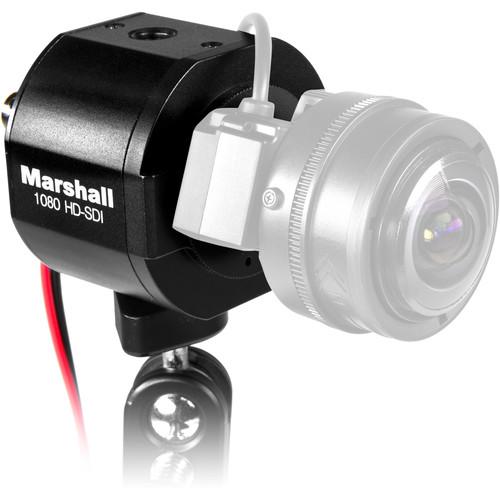

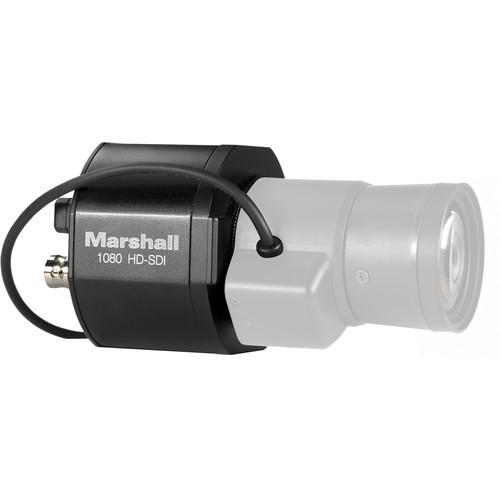

Suitable for use in broadcast situations as well as Reality TV, Sports, Racing, Houses of Worship, and Security applications the Marshall CV345-CSB 2.5MP HD/3G-SDI Compact Broadcast Compatible Camera provides HD video in a small form factor. The camera features a 1/3" CMOS sensor and accepts optional C-mount or CS-mount lenses supporting auto-iris. The camera captures HD video at 1080p 29.97/59.94, 1080i 59.94, and 720p 59.94 fps allowing you to easily integrate the camera into an infrastructure that supports broadcast frame rates. The camera incorporates one HD/3G-SDI and one HDMI output.

With a minimum illumination of 0.2 lux in color or 0.1 lux in B&W mode, the camera can function as a security camera, or be used in teleconferencing in low light situations. It features Digital Wide Dynamic Range, motion detection, and privacy masking, which make this camera a flexible option for capturing intrusions into sensitive areas. The auto white balance functions helps to deliver normal looking video under changing conditions. Menu settings are available via an OSD that is actuated by a button on the back of the camera. The power cable includes an integrated joystick that allows you to navigate the OSD, it also integrates a TRS connector for audio input and an RS-485 connector for remote control.
If you own a Marshall Electronics pov cameras and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Marshall Electronics CV345-CSB 2.5MP 3G-SDI/HDMI CV345-CSB in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Marshall Electronics CV345-CSB 2.5MP 3G-SDI/HDMI CV345-CSB:
Sensor 1/3" CMOS Sensor (approximately 2.5 MP)
Effective Pixels 1920 x 1080
Horizontal Resolution 1000 TVL
Sync System Internal
Minimum Illumination Color: 0.2 Lux
B&W: 0.1 Lux
DSS On: 0.005 Lux
Lens Mount: CS/S with DC-Auto Iris Included Lens: None
Video Output 3G-SDI SMPTE 424M (2.97 Gbps)
1080p: 59.94 fps

HD-SDI SMPTE 292M (1.485 Gbps)
1080p: 29.97
1080i: 9.94
720p: 59/94/29/97



HDMI
1080p: 29.97/59.94
1080i: 59.94
720p: 29.97/59.94
Electronic Shutter NTSC: 1/30 to 1/30000
White Balance AWB/AWC-Set/Manual/Indoor/Outdoor
Backlight Compensation WDR/BLC/HLC
Control Interface RS-485
PELCO-P/D
Sony-VISCA protocol
8 bits data, 1 stop bit, no parity, 2400~115200 bps
Temperature & Humidity Operating: 14 to 122 °F / -10 to 50 °C
Power Voltage: 12 VDC (7 to 15 VDC Range)
Consumption: Max 6 W
Certification CE, FCC, RoHS, KCE
Dimensions (W x H x D) 2.4 x 2.2 x 1.8" / 60 x 57 x 45 mm
Weight 5.6 oz / 160 g
Packaging Info
Package Weight 0.85 lb
Box Dimensions (LxWxH) 6.5 x 5.1 x 3.3"
The user manual for the Marshall Electronics CV345-CSB 2.5MP 3G-SDI/HDMI CV345-CSB can be downloaded in .pdf format if it did not come with your new pov cameras, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Marshall Electronics users keep a unique electronic library for Marshall Electronics pov camerass, where you can use our link to download the user manual for the Marshall Electronics CV345-CSB 2.5MP 3G-SDI/HDMI CV345-CSB.

The user manual lists all of the functions of the Marshall Electronics CV345-CSB 2.5MP 3G-SDI/HDMI CV345-CSB, all the basic and advanced features and tells you how to use the pov cameras. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Marshall Electronics service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Marshall Electronics CV345-CSB 2.5MP 3G-SDI/HDMI CV345-CSB. User manuals are also available on the Marshall Electronics website under Professional Video - POV Cameras.
