User manual for the Marshall Electronics CV620 2MP Full HD Broadcast PTZ CV620-BKSU
The user manual for the Marshall Electronics CV620 2MP Full HD Broadcast PTZ CV620-BKSU provides
necessary instructions for the proper use of the product Professional Video - PTZ Cameras.

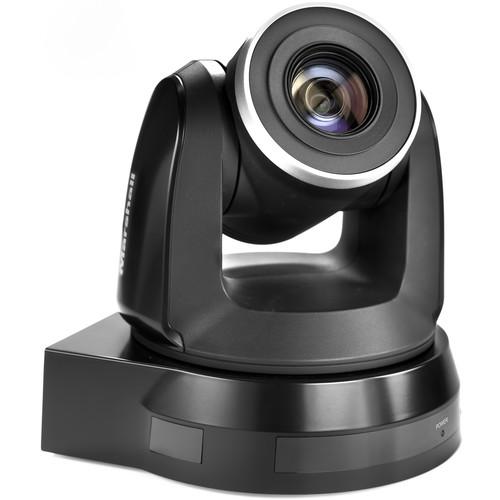

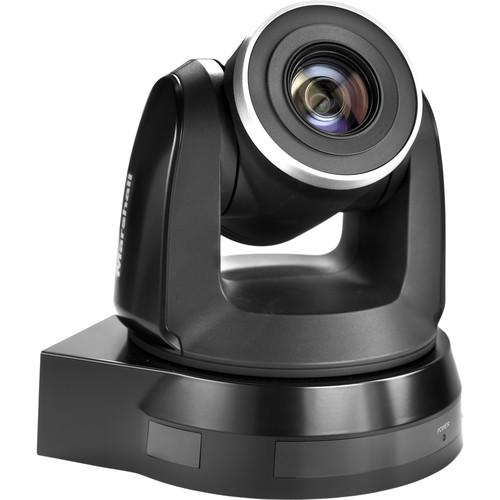

The black CV620 2MP Full HD Broadcast PTZ Conference Camera with 3G-SDI to USB 3.0 Converter from Marshall Electronics is built around a professional grade 1/2.8" image sensor with a smooth 20x optical zoom. The camera incorporates useful outputs such as 3G-SDI, Component VGA, HD-DVI, and Composite outputs. Remote operation and control via RS232/RS422 using common protocols makes it compatible with most integrated control systems.
If you own a Marshall Electronics ptz cameras and have a user manual in electronic form,
you can upload it to this website using the link on the right side of the screen.
You can upload and download the manual for the Marshall Electronics CV620 2MP Full HD Broadcast PTZ CV620-BKSU in the following formats:
*.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Marshall Electronics CV620 2MP Full HD Broadcast PTZ CV620-BKSU:
Specifications
Image Sensor
1/2.8"
Resolution
2 MP
Supported Resolutions
1080p, 1080i, 720p
Frame Rate
60, 59.94, 50, 30, 29.97, 25 fps
Zoom
20x optical, 12x digital
Lens
4.7 to 94 mm
Aperture
F1.6-3.5
Pan/Tilt Adjustment
340° Horizontal Pan, 120° Vertical Tilt
I/O
Hd/3G-SDI BNC, Component-VGA, HD-DVI, Composite Video
Serial
RS-422/RS-232 Remote Control Interface at High Communication Speeds
Dimensions (L x W x H)
6.85 x 7.32 x 7.19" (174 x 186 x 185 mm)
Weight
4.4 lb (2 kg)
The user manual for the Marshall Electronics CV620 2MP Full HD Broadcast PTZ CV620-BKSU can be downloaded in .pdf
format if it did not come with your new ptz cameras, although the seller is
required to supply one. It is also quite common that customers throw out
the user manual with the box, or put the CD away somewhere and then can’t find it.
That’s why we and other Marshall Electronics users keep a unique electronic library
for Marshall Electronics ptz camerass,
where you can use our link to download the user manual for the Marshall Electronics CV620 2MP Full HD Broadcast PTZ CV620-BKSU.
The user manual lists all of the functions of the Marshall Electronics CV620 2MP Full HD Broadcast PTZ CV620-BKSU,
all the basic and advanced features and tells you how to use the ptz cameras.
The manual also provides troubleshooting for common problems. Even greater
detail is provided by the service manual, which is not typically shipped with the product,
but which can often be downloaded from Marshall Electronics service.
If you want to help expand our database, you can upload a link to this website
to download a user manual or service manual, ideally in .pdf format. These pages
are created by you – users of the Marshall Electronics CV620 2MP Full HD Broadcast PTZ CV620-BKSU. User manuals are also
available on the Marshall Electronics website under Professional Video - PTZ Cameras.
