User manual Marshall Electronics QVW-1708-HDI 17" 6 RU QVW-1708-HDI

Operating instructions and pdf manual for use - Marshall Electronics QVW-1708-HDI 17" 6 RU QVW-1708-HDI User manual, User manual Marshall Electronics QVW-1708-HDI 17" 6 RU QVW-1708-HDI, Marshall, Electronics, QVW-1708-HDI, 17, 6, RU, QVW-1708-HDI,


User manual for Marshall Electronics QVW-1708-HDI 17" 6 RU QVW-1708-HDI

Marshall Electronics QVW-1708-HDI 17
  • Manufacturer: Marshall Electronics
  • Basic description and contents of package
  • Product classification: Professional Video - Monitors - Production Monitors
  • Safety instructions
  • Startup and operation of the production monitors
  • Tips for setting up your Marshall Electronics
  • Settings and expert assistance
  • Contact Marshall Electronics service
  • Troubleshooting
  • Warranty information

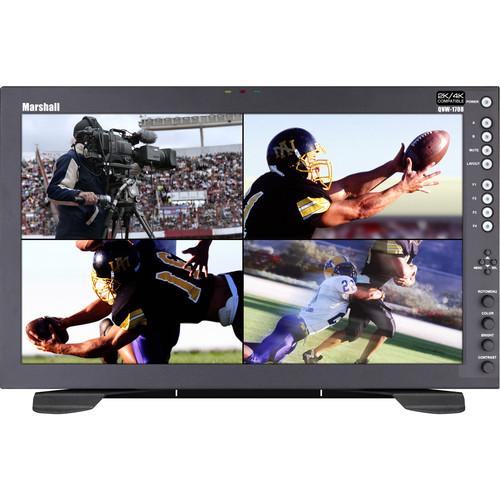

Marshall Electronics QVW-1708-HDI 17 Marshall Electronics QVW-1708-HDI 17
Click to enlarge image

We recommend checking out our discussion threads on the Marshall Electronics QVW-1708-HDI 17" 6 RU QVW-1708-HDI, which address similar problems with connecting and setting up Production Monitors Marshall Electronics.



User manual for the Marshall Electronics QVW-1708-HDI 17" 6 RU QVW-1708-HDI

The user manual for the Marshall Electronics QVW-1708-HDI 17" 6 RU QVW-1708-HDI provides necessary instructions for the proper use of the product Professional Video - Monitors - Production Monitors.

The QVW-1708-HDI 17" 6 RU Quad View 4K Monitor from Marshall Electronics can function as a single 4K display, or as four separate Quad View displays supporting inputs up to 1920 x 1080 in each quadrant. The monitor can be mounted on any standard EIA 19" equipment rack. The attached rack ears can be angled to provide the user viewing angle control. A VESA standard 75mm hole pattern also allows custom mounting installations. Each of the four quad input sources is scaled and positioned in real-time, and three additional layouts (including Full Screen) are also provided.
If you own a Marshall Electronics production monitors and have a user manual in electronic form, you can upload it to this website using the link on the right side of the screen.

You can upload and download the manual for the Marshall Electronics QVW-1708-HDI 17" 6 RU QVW-1708-HDI in the following formats:
  • *.pdf, *.doc, *.txt, *.jpg - Other formats are unfortunately not supported.
Additional parameters of the Marshall Electronics QVW-1708-HDI 17" 6 RU QVW-1708-HDI:
Specifications
Number of Panels 1
Panel Size 17.3" (43.94 cm)
Resolution 1920 x 1200
Aspect Ratio 16:9
Active Area 381.89 x 214.81 mm
Type LCD panel
Brightness 400 cd/m²
Contrast 600:1
Color Gamut YUV, RGB
Viewing Angles 160 x 160°
Backlight Type LED
Video Formats 1080p / 1080i / 720p / 625i / 525i
Color Temperature D65, D55, and D93
Slot Modular Input Slot: 2
Video Inputs HDMI Dual Input
Video Outputs None
Control Features Tally/GPI: Tally, RS-485/422 with loop-through, Ethernet, controls on front panel, user-defined Function buttons, RotoMenu control, pivot angle
Voltage 12 VDC
Consumption 5 A @ 12 VDC 60 W Max
Connector 4-Pin XLR
Compliance CE approved
Operating Temperature 32 to 95°F (0 to 35°C)
Storage Temperature 14 to 122°F (-10 to 50°C)
VESA Pattern 75 mm
Dimensions (W x H x D) 17.2 x 10.5 x 1.4" (43.6 x 26.5 x 3.7 cm)
Weight Main Body: 9.35 lb (4.24 kg)
The user manual for the Marshall Electronics QVW-1708-HDI 17" 6 RU QVW-1708-HDI can be downloaded in .pdf format if it did not come with your new production monitors, although the seller is required to supply one. It is also quite common that customers throw out the user manual with the box, or put the CD away somewhere and then can’t find it. That’s why we and other Marshall Electronics users keep a unique electronic library for Marshall Electronics production monitorss, where you can use our link to download the user manual for the Marshall Electronics QVW-1708-HDI 17" 6 RU QVW-1708-HDI.

The user manual lists all of the functions of the Marshall Electronics QVW-1708-HDI 17" 6 RU QVW-1708-HDI, all the basic and advanced features and tells you how to use the production monitors. The manual also provides troubleshooting for common problems. Even greater detail is provided by the service manual, which is not typically shipped with the product, but which can often be downloaded from Marshall Electronics service.

If you want to help expand our database, you can upload a link to this website to download a user manual or service manual, ideally in .pdf format. These pages are created by you – users of the Marshall Electronics QVW-1708-HDI 17" 6 RU QVW-1708-HDI. User manuals are also available on the Marshall Electronics website under Professional Video - Monitors - Production Monitors.
